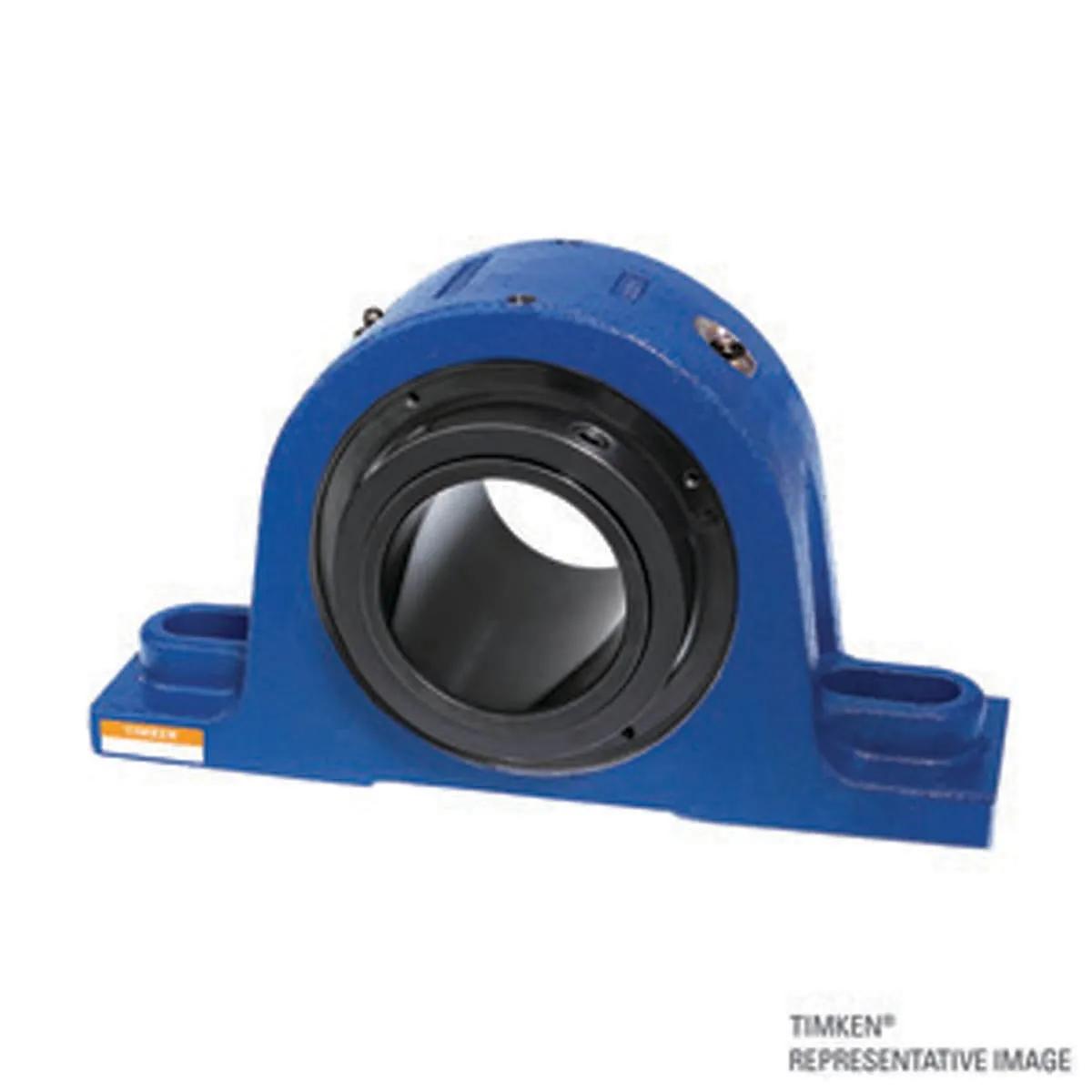

Timken QAPL10A200SBT Mounted Spherical Roller Bearing Housed Unit | 0 mm 0 in Bore | N/A, MFR ID TIM-QAPL10A200SB
- MFR #QAPL10A200SB
- EIS #QAPL10A200SBT
- UPC #883450047166
$597.24 / Piece
Available to Order
Min QTY1QTY Increment1
more info
Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Features
- T Seal - Labyrinth seal consists of a Teflon® ring pressed onto the inner ring of the bearing that floats between two pieces of formed steel to accommodate misalignment
- When using this seal, the housing comes with a vent fitting
- Developed for higher-speed applications involving dirty conditions or moisture-affected areas, is able to operate at higher temperatures and is impervious to most chemicals.
- Single Collar set-screw locking - CL Series - two set screws positioned at 60 degrees provide maximum positive locking power with minimal run out.
General Information
| Item Name | SRB Solid Block Housed Units |
General Features
| Net Weight | 12.5 lb |
| Type | Mounted Roller Bearing |
Design & Construction
| Bore Type | Cylindrical |
| Cage Material | Steel |
| Cage Type | Steel |
| End Type | Open |
| Material | Steel |
| Mounting Type | Pillow Block: 2 Bolt |
| Retainer Type | Steel |
| Rolling Element | Spherical |
| Rolling Element Material | Steel |
| Row Type | Double row |
Performance Details
| Self Aligning | Yes |
Physical Properties
| Bolt Size | 0.625 Inch | 16 mm |
| Bore Diameter | 2 Inch | 50.8 mm |
| Length Through Bore | 2.87 Inch | 72.9 mm |
| Overall Height | 4.81 Inch | 122.2 mm |
| Overall Length | 8.38 Inch | 212.9 mm |
| Overall Width | 3.1100 Inch | 79.000 mm |
