MFR #:TufQUIN-SQ-36-TU
EIS #:PH21-TufQUIN-SQ-36-TU
Series #:TufQUIN-SQ-36-TU
MFR #:TufQUIN-SQ-36-TU
EIS #:PH21-TufQUIN-SQ-36-TU
Series #:TufQUIN-SQ-36-TU

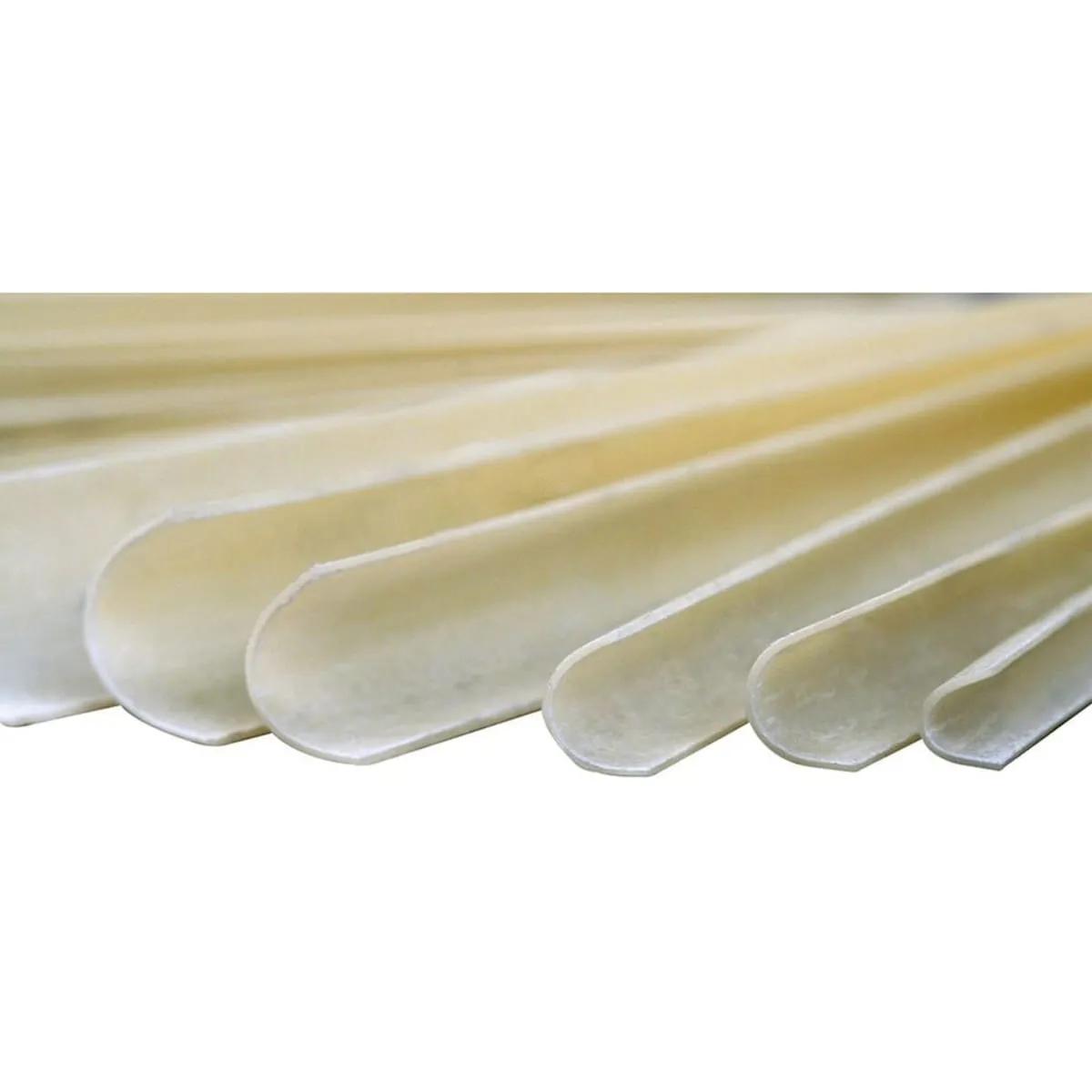

3M™ TufQUIN TFT Hybrid wedges is a three-ply composite of 3M™ TufQUIN Hybrid Insulating Paper bonded to both sides of polyester (PET) film for use in high-temperature electrical insulating applications. Qualified for use in electrical insulation systems up to Class 200(N) per UL 1446 and IEC Std. 60085, CSA Component Acceptance at 200 °C. TFT laminates are compatible with commonly used impregnating varnishes and resins, and are easily impregnated, further enhancing thermal conductivity and coil bonding characteristics. - TFT hybrid insulating wedges is a three-ply composite of 3M TufQUIN hybrid Insulating Paper bonded to both sides of polyester (PET) film for use in high-temperature electrical insulating applications.
$0.17
- $415.16
Select from the options below
3M™ TufQUIN TFT Hybrid wedges is a three-ply composite of 3M™ TufQUIN Hybrid Insulating Paper bonded to both sides of polyester (PET) film for use in high-temperature electrical insulating applications. Qualified for use in electrical insulation systems up to Class 200(N) per UL 1446 and IEC Std. 60085, CSA Component Acceptance at 200 °C. TFT laminates are compatible with commonly used impregnating varnishes and resins, and are easily impregnated, further enhancing thermal conductivity and coil bonding characteristics. - TFT hybrid insulating wedges is a three-ply composite of 3M TufQUIN hybrid Insulating Paper bonded to both sides of polyester (PET) film for use in high-temperature electrical insulating applications.
Product Options
Showing 8 out of 20 options
Height: 0.1875 Inch | Thickness: 24 mil | Width: 0.2188 Inch | EIS Part #: WGETFT8624 | $ / Foot Pack: 250 ft/Tube | ||
Height: 0.2813 Inch | Thickness: 24 mil | Width: 0.5 Inch | EIS Part #: WGETFT243218 | $ / Foot Pack: 250 ft/Tube | ||
Height: 0.2031 Inch | Thickness: 24 mil | Width: 0.2656 Inch | EIS Part #: WGETFT241713 | $ / Foot Pack: 250 ft/Tube | ||
Height: 0.1563 Inch | Thickness: 24 mil | Width: 0.1719 Inch | EIS Part #: WGETFT241110 | $ / Foot Pack: 250 ft/Tube | ||
Height: 0.125 Inch | Thickness: 20 mil | Width: 0.125 Inch | EIS Part #: WGETFT2088 | $ / Foot Pack: 250 ft/Tube | ||
Height: 0.2813 Inch | Thickness: 20 mil | Width: 0.4219 Inch | EIS Part #: WGETFT202718 | $ / Foot Pack: 250 ft/Tube | ||
Height: 0.25 Inch | Thickness: 20 mil | Width: 0.3594 Inch | EIS Part #: WGETFT202316 | $ / Foot Pack: 250 ft/Tube | ||
Height: 0.2344 Inch | Thickness: 20 mil | Width: 0.3281 Inch | EIS Part #: WGETFT202115 | $ / Foot Pack: 250 ft/Tube |
- Attributes
- Features
- Applications
Attributes
General Information
Item NameSquare Form Wedge
Trade NameTufQuin™
SeriesTufQUIN-SQ-36-TU
General Features
Type3-Ply Composite, Inorganic Hybrid
Design & Construction
MaterialPolyester
Insulation TypeClass N
Physical Properties
Length36 Inch
Features
- Flexible, conformable materials with high tensile strength, excellent tear resistance, and low moisture absorption
- The inorganic content in the TufQUIN paper offers high thermal conductivity, long-term voltage endurance, and resistance to partial discharge (corona) that helps TFT laminates withstand damage from voltage spikes, the polyester film reinforcement provides stiffness, high mechanical strength, and resistance to tear
Applications
- Slot Cell, Phase and Wedge Insulation in Motors and Generators, Ground and Layer Insulation in Dry-type Transformers
- Impregnating Varnishes and Resins
- Automatic Insertion Applications, as Well as Heavy-Duty Winding Applications
