3M TufQuin™ Natural Square Form Wedge
MFR #:TufQUIN-SQ-36-BU-NAT
EIS #:PH21-TufQUIN-SQ-36-BU-NAT
Series #:TufQUIN-SQ-36-BU-NAT
MFR #:TufQUIN-SQ-36-BU-NAT
EIS #:PH21-TufQUIN-SQ-36-BU-NAT
Series #:TufQUIN-SQ-36-BU-NAT

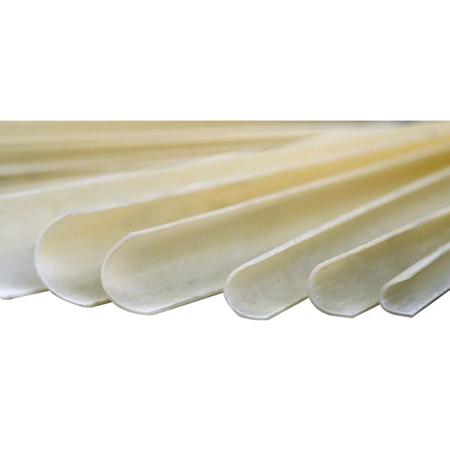

3M™ TufQUIN TFT Hybrid wedges is a three-ply composite of 3M™ TufQUIN Hybrid Insulating Paper bonded to both sides of polyester (PET) film for use in high-temperature electrical insulating applications. Qualified for use in electrical insulation systems up to Class 200(N) per UL 1446 and IEC Std. 60085, CSA Component Acceptance at 200 °C. TFT laminates are compatible with commonly used impregnating varnishes and resins, and are easily impregnated, further enhancing thermal conductivity and coil bonding characteristics. - TFT hybrid insulating wedges is a three-ply composite of 3M TufQUIN hybrid Insulating Paper bonded to both sides of polyester (PET) film for use in high-temperature electrical insulating applications.
$298.09
- $359.97
Select from the options below
3M™ TufQUIN TFT Hybrid wedges is a three-ply composite of 3M™ TufQUIN Hybrid Insulating Paper bonded to both sides of polyester (PET) film for use in high-temperature electrical insulating applications. Qualified for use in electrical insulation systems up to Class 200(N) per UL 1446 and IEC Std. 60085, CSA Component Acceptance at 200 °C. TFT laminates are compatible with commonly used impregnating varnishes and resins, and are easily impregnated, further enhancing thermal conductivity and coil bonding characteristics. - TFT hybrid insulating wedges is a three-ply composite of 3M TufQUIN hybrid Insulating Paper bonded to both sides of polyester (PET) film for use in high-temperature electrical insulating applications.
Product Options
Showing 2 out of 2 options
 | Height: 0.34 Inch | Width: 0.34 Inch | EIS Part #: WGETFT202219AB | $ / Foot Pack: Bulk | |
| Height: 0.2344 Inch | Width: 0.2344 Inch | EIS Part #: WGETFT201515AB | $ / Foot Pack: Bulk |
- Attributes
- Features
- Applications
Attributes
General Information
Item NameSquare Form Wedge
Trade NameTufQuin™
SeriesTufQUIN-SQ-36-BU-NAT
General Features
Type3-Ply Composite, Inorganic Hybrid
Design & Construction
MaterialPolyester
Insulation TypeClass N
Performance Details
Tensile Strength260 lb/Inch
Electrical Properties
Dielectric Strength30 kV
Physical Properties
Elongation40% (MD), 158% (CD)
Length36 Inch
Thickness20 mil
Features
- Flexible, conformable materials with high tensile strength, excellent tear resistance, and low moisture absorption
- The inorganic content in the TufQUIN paper offers high thermal conductivity, long-term voltage endurance, and resistance to partial discharge (corona) that helps TFT laminates withstand damage from voltage spikes, the polyester film reinforcement provides stiffness, high mechanical strength, and resistance to tear
- Tensile Strength: 260 - 455 lb/Inch (MD), 332 - 581 lb/Inch (CD)
- Tensile Strength: 260 - 455 lb/Inch
Applications
- Slot Cell, Phase and Wedge Insulation in Motors and Generators, Ground and Layer Insulation in Dry-type Transformers
- Impregnating Varnishes and Resins
- Automatic Insertion Applications, as Well as Heavy-Duty Winding Applications
