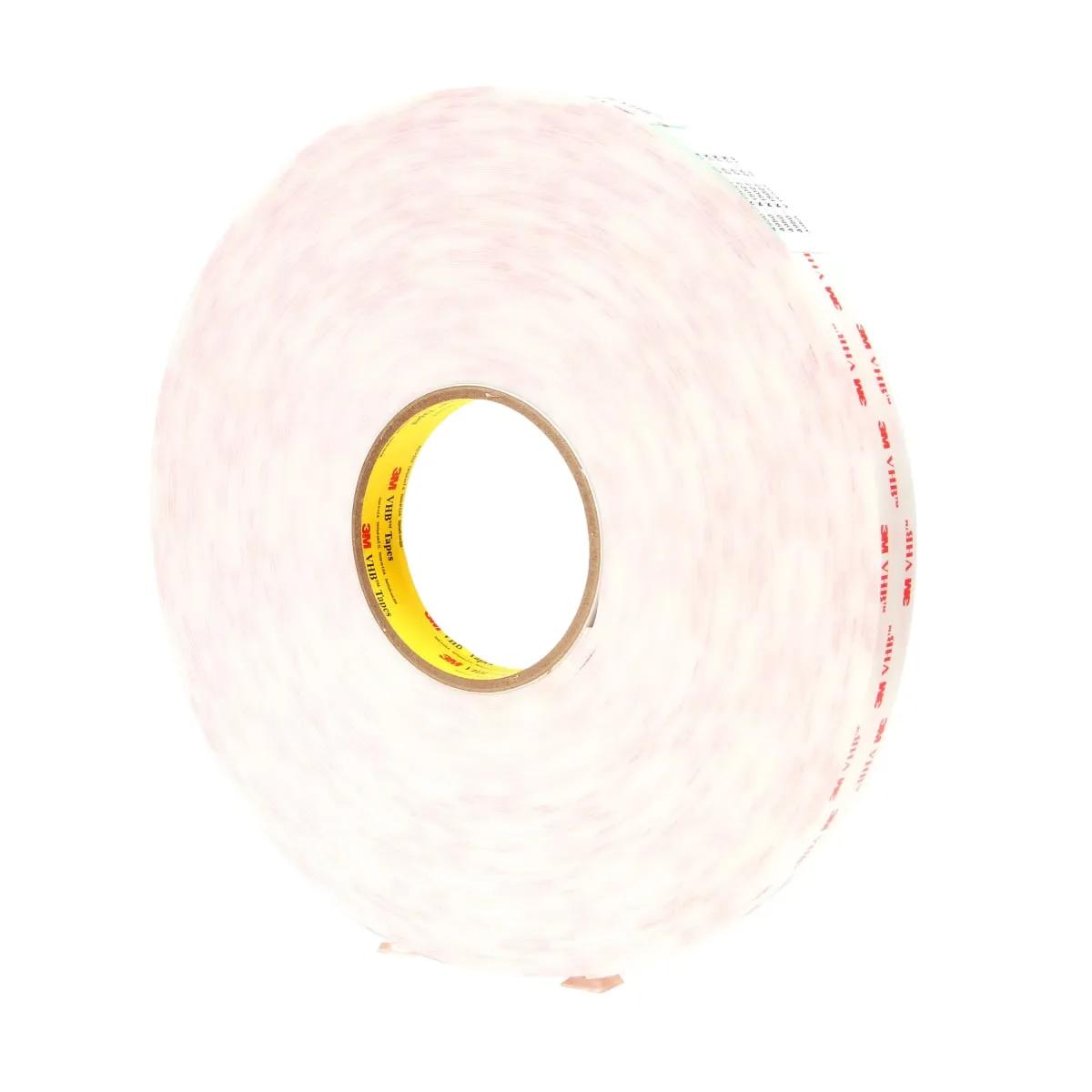

3M 4950 VHB™ General Purpose Specialty Tape
- MFR #4950
- EIS #PH22-4950
$171.97 - $315.94
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--Products You May Also Like
| Stock Status | ||||
|---|---|---|---|---|
 | 18/Case | 0.5 Inch | $ / Roll Pack: 18/Case more info | |
 | 12/Case | 0.75 Inch | $ / Roll Pack: 12/Case | |
 | 2/Case | 1 Inch | $ / Roll Pack: 2/Case more info | |
 | 9/Case | 1 Inch | $ / Roll Pack: 9/Case more info |
3M VHB tape 4950 replaces screws, rivets and studs to permanently adhere one substrate to another while spreading the stress load across the entire length of the joint. Once materials are joined with 3M VHB tape, a virtually indestructible weld is created. - 3M VHB tape combines the most conformable acrylic foam with modified acrylic adhesive. Bonding tapes provide excellent shear strength, surface adhesion, durability and temperature resistance.
Features
- Fast and easy to use permanent bonding method provides high strength and long-term durability
- Can replace mechanical fasteners (rivets, welds, screws) or liquid adhesives
- Eliminate drilling, grinding, refinishing, screwing, welding and associated clean-up
- Creates a permanent seal against water and moisture
- Pressure sensitive adhesive bonds on contact to provide immediate handling strength
- Allows the use of thinner, lighter weight and dissimilar materials
Applications
- For Roof Panel Bonding on Truck Cabs, Bonding Glass to a Metal Oven Door, Attaching, Mounting
General Information
| Item Name | Specialty Tape |
| Trade Name | VHB™ |
| Series | 4950 |
General Features
| Type | General Purpose |
| Shelf Life | 24 Months |
| Storage Temperature | 22 °C |
Design & Construction
| Adhesive Type | Acrylic |
| Color | White |
| Liner Material | Paper |
Performance Details
| Adhesive Strength | 25 lb/Inch |
| Tensile Strength | 140 psi |
Electrical Properties
| Dielectric Strength | 460 V/mil |
Physical Properties
| Core Size | 3 Inch |
| Width | 0.500 Inch |
| Length | 36 Yard |
| Liner Thickness | 3 mil |
| Thickness | 45 mil |
Environmental Condition
| Resists | Solvent, Moisture, Weather, Temperature |
| Temperature Rating | 200 °F |
