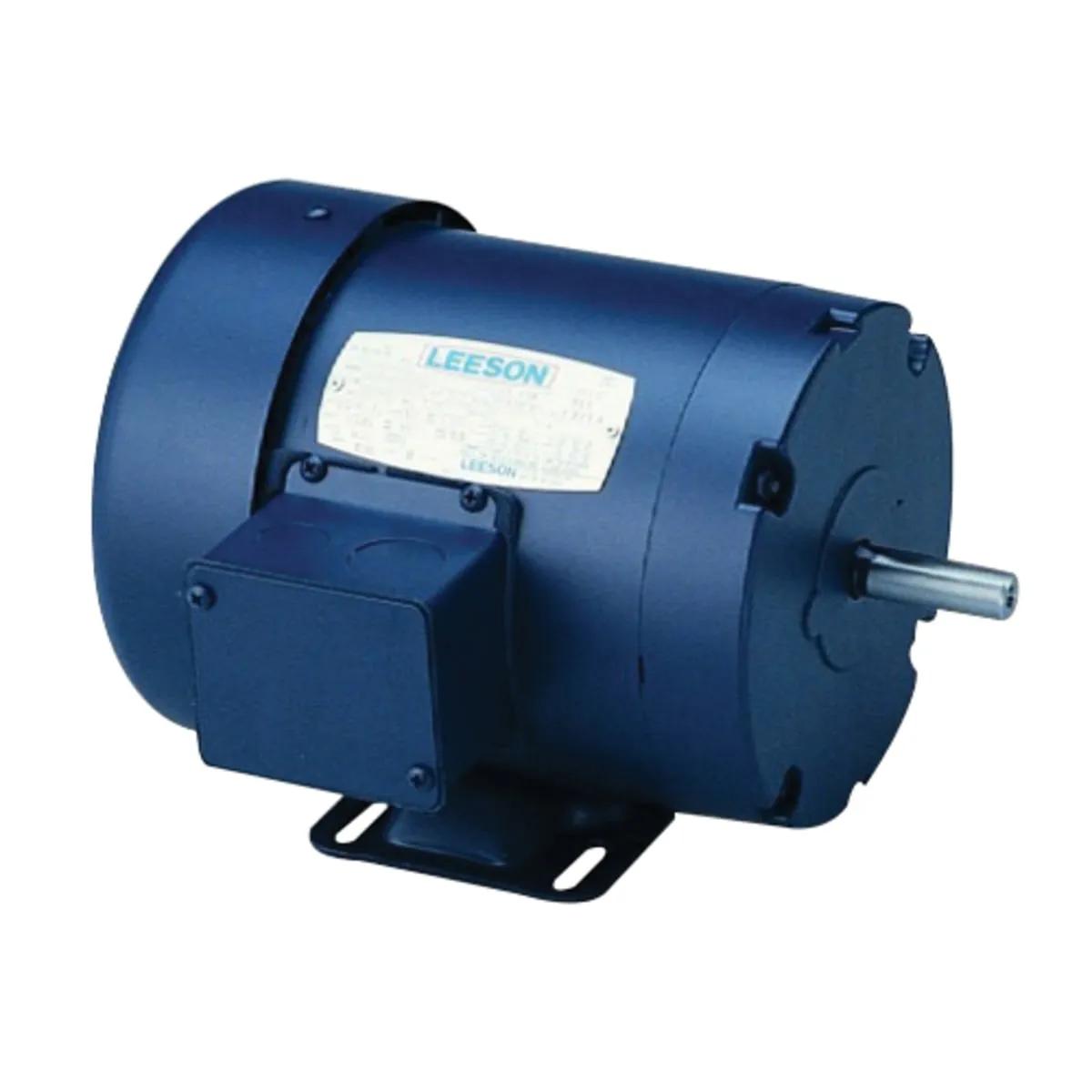

Leeson 220V Rigid Base Totally Enclosed Fan-Cooled (TEFC) Steel Frame Special Voltage Motor, MFR ID LE-220-RB-TEFC-SF-SVM
- MFR #LE-220-RB-TEFC-SF-SVM
- EIS #PH23-LE-220-RB-TEFC-SF-SVM
$930.02 - $3,192.52
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--Products You May Also Like
| Stock Status | |||||
|---|---|---|---|---|---|
 | 3.6 A | 2 HP | 145T | $ / each | |
| 3.7 A | 2 HP | 145T | $ / each | |
| 3.3 A | 1.5 HP | 145T | $ / each | |
 | 15.9 A | 3 HP | 184T | $ / each | |
 | 20.5 A | 5 HP | 184T | $ / each |
Standard, EPACT and Premium efficient ratings. Inverter-rated. Shielded ball bearings for direct coupled applications. Dynamically balanced rotors. Torques exceed NEMA Performance standards. Continuous duty and rigid base. - Leeson TF Special Voltage Motor, Bearing Type: Ball, Construction: Steel Frame, Duty: Continuous, Enclosure Type: Totally Enclosed Fan-Cooled, Frequency Rating: 50 Hz, Mounting Type: Rigid Base, Overload Protector: No, Shaft Position: Horizontal, Temperature Rating: 40 °C, Voltage Rating: 220V
Applications
- These Motors are Intended for Equipment Built in North American and Destined for use in 50 Hz Service Areas of the World
General Information
| Item Name | Special Voltage Motor |
| Series | LE-220-RB-TEFC-SF-SVM |
General Features
| Standards | UL Listed, CSA Approved |
Design & Construction
| Bearing Type | Ball |
| Construction | Steel Frame |
| Duty | Continuous |
| Enclosure Type | Totally Enclosed Fan-Cooled |
| Mounting Type | Rigid Base |
| Shaft Position | Horizontal |
Performance Details
| Overload Protector | No |
Electrical Properties
| Frequency Rating | 50 Hz |
| Voltage Rating | 220 V |
Environmental Condition
| Temperature Rating | 40 °C |
