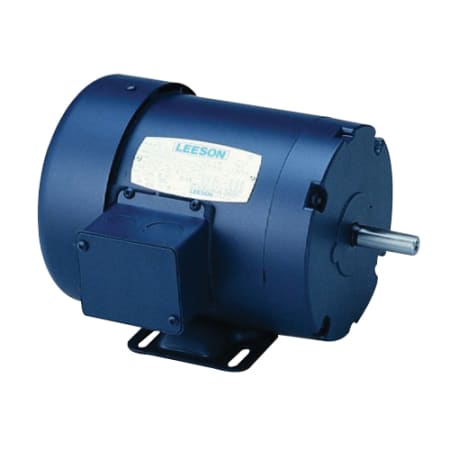

Leeson 121095 Special Voltage Motor, 2 HP, 1500 rpm, 220V, 145T Frame, TEFC, Rigid Base Mount

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:121095.00

EIS #:MOT121095

UPC #:00069172001671

MFR #:121095.00

EIS #:MOT121095

UPC #:00069172001671

Out of Stock

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
Leeson TF Special Voltage Motor, Bearing Type: Ball, Construction: Steel Frame, Duty: Continuous, Enclosure Type: Totally Enclosed Fan-Cooled, Frequency Rating: 50 Hz, Mounting Type: Rigid Base, Overload Protector: No, Shaft Position: Horizontal, Temperature Rating: 40 deg C, Voltage Rating: 220V Standard, EPACT and Premium efficient ratings. Inverter-rated. Shielded ball bearings for direct coupled applications. Dynamically balanced rotors. Torques exceed NEMA Performance standards. Continuous duty and rigid base.
$1,300.05 / each

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
Leeson TF Special Voltage Motor, Bearing Type: Ball, Construction: Steel Frame, Duty: Continuous, Enclosure Type: Totally Enclosed Fan-Cooled, Frequency Rating: 50 Hz, Mounting Type: Rigid Base, Overload Protector: No, Shaft Position: Horizontal, Temperature Rating: 40 deg C, Voltage Rating: 220V Standard, EPACT and Premium efficient ratings. Inverter-rated. Shielded ball bearings for direct coupled applications. Dynamically balanced rotors. Torques exceed NEMA Performance standards. Continuous duty and rigid base.

Attributes

General Information
Item NameSpecial Voltage Motor
Trade NameLeeson
General Features
TypeTF
StandardsUL Listed, CSA Approved
Design & Construction
Bearing TypeBall
ConstructionSteel Frame
DutyContinuous
Enclosure TypeTotally Enclosed Fan-Cooled
Frame Type145T
Insulation TypeClass F
KVA CodeJ
Mounting TypeRigid Base
RotationReversible
Shaft PositionHorizontal
Start MethodAcross The Line, SQ Cage Ind Run
Performance Details
Speed Rating1500 rpm
Full Load Efficiency81.5%
1/2 Load Efficiency72.4%
Overload ProtectorNo
3/4 Load Efficiency77.2%
Torque Rating7.2 lb-ft
Electrical Properties
Frequency Rating50
Full Load Ampere3.7 A
Full Load Power Factor76%
1/2 Load Power Factor40.2%
HP Rating2 HP
Locked Rotor Ampere23.63 A
Phase3-Phase
Service Factor1.15
3/4 Load Power Factor50.9%
Physical Properties
Dimensions13.25 Inch L x 6.74 Inch H
Frame Size145
Number of Poles4
Shaft Diameter0.875 Inch
Shaft Length2.38 Inch
Weight42 lb
