Kester 245 No Clean, Lead-Free SAC305 Soldering Wire, MFR ID SAC305-245

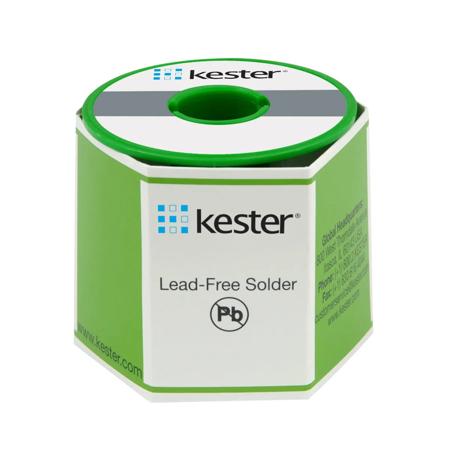

The image shown is representative of the product family and may not specifically be the individual item.
  • MFR #:SAC305-245
  • EIS #:PH19-SAC305-245
  • Series #:SAC305-245
  • MFR #:SAC305-245
  • EIS #:PH19-SAC305-245
  • Series #:SAC305-245
0
0
Kester 245 is a compatible with both leaded and lead free alloys, provides a minimal and very reliable post-soldering residue - Kester 245 was developed to complement low residue liquid fluxes being used by the electronics industry. The chemistry is based on some of the same principles that have been safely used for years in mildly activated rosin fluxes. The use of 245 results in visually acceptable assemblies without cleaning, yet soldering quality and efficiency is comparable to that obtained with mildly activated rosin flux. 245 is classified as ROL0 per J-STD-004. 245 is Bellcore GR-78 compliant.
$206.49
 - $238.29
Select from the options below
0
0
Kester 245 is a compatible with both leaded and lead free alloys, provides a minimal and very reliable post-soldering residue - Kester 245 was developed to complement low residue liquid fluxes being used by the electronics industry. The chemistry is based on some of the same principles that have been safely used for years in mildly activated rosin fluxes. The use of 245 results in visually acceptable assemblies without cleaning, yet soldering quality and efficiency is comparable to that obtained with mildly activated rosin flux. 245 is classified as ROL0 per J-STD-004. 245 is Bellcore GR-78 compliant.

Product Options

Showing 2 out of 2 options
The image shown is representative of the product family and may not specifically be the individual item.
Container Size:
1 lb
Wire Diameter:
0.04 Inch
EIS Part #:
SN965AG3524558.040
$ / US pound
The image shown is representative of the product family and may not specifically be the individual item.
Container Size:
1 lb
Wire Diameter:
0.031 Inch
EIS Part #:
SN965AG3524558.031
$ / US pound

Attributes

General Information

Item NameKester No-Clean Flux Cored Wire Solder
Trade NameKester

SeriesSAC305-245

General Features

Shelf Life24 Months

Design & Construction

Flux TypeNo-Clean

Chemical Properties

Flux Formula245
Lead FreeYes

Physical Properties

AlloySn96.5 Ag3.0 Cu0.5 (SAC305)
Container TypeSpool

Environmental Condition

Melting Range217-220 °C

Supporting Information

Flux DesignatorROL0
RoHS InfoLead-Free
