Kester 185 Rosin Mildly Activated Soldering Flux

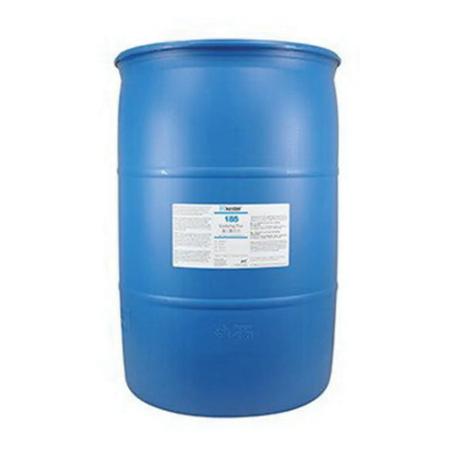

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:185

EIS #:PH19-185

Series #:185

MFR #:185

EIS #:PH19-185

Series #:185

0
0
The Kester 185 mildly activated rosin is classified as type ROL0 flux under IPC J-STD-004 Joint Industry Standard. Under the older MIL-F-14256, 185 was QPL approved as type RMA. This formulation consists of high quality, purified rosin to which a synergistic combination of activating agents has been incorporated. The fluxing ability of 185 flux is much greater than ordinary mildly activated rosin fluxes and approaches the activity of fully activated rosin fluxes. - 185 rosin flux represents state-of-the-art flux formulation technology. This flux has been developed for use in critical electronic applications where difficult assemblies are to be soldered, but process requirements stipulate use of mildly activated rosin flux.
$85.80
 - $98.16
Select from the options below
0
0
The Kester 185 mildly activated rosin is classified as type ROL0 flux under IPC J-STD-004 Joint Industry Standard. Under the older MIL-F-14256, 185 was QPL approved as type RMA. This formulation consists of high quality, purified rosin to which a synergistic combination of activating agents has been incorporated. The fluxing ability of 185 flux is much greater than ordinary mildly activated rosin fluxes and approaches the activity of fully activated rosin fluxes. - 185 rosin flux represents state-of-the-art flux formulation technology. This flux has been developed for use in critical electronic applications where difficult assemblies are to be soldered, but process requirements stipulate use of mildly activated rosin flux.

Product Options

Showing 2 out of 2 options
The image shown is representative of the product family and may not specifically be the individual item.
Container Size
1 gal
EIS Part #
KES185G
$ / US gallon
The image shown is representative of the product family and may not specifically be the individual item.
Container Size
5 gal
EIS Part #
KES1855G
$ / US gallon

Attributes

General Information
Item NameSoldering Flux
Series185
Design & Construction
ColorAmber
Flux TypeRosin Mildly Activated
FormLiquid
Performance Details
Vapor Pressure43 hPa
Chemical Properties
Chemical CompositionIsopropanol, Rosin, Sec-Butanol
Flux Formula185
Specific Gravity0.879
VOC558 g/L
Physical Properties
Odor/ScentMild
Supporting Information
Flux DesignatorROL0
