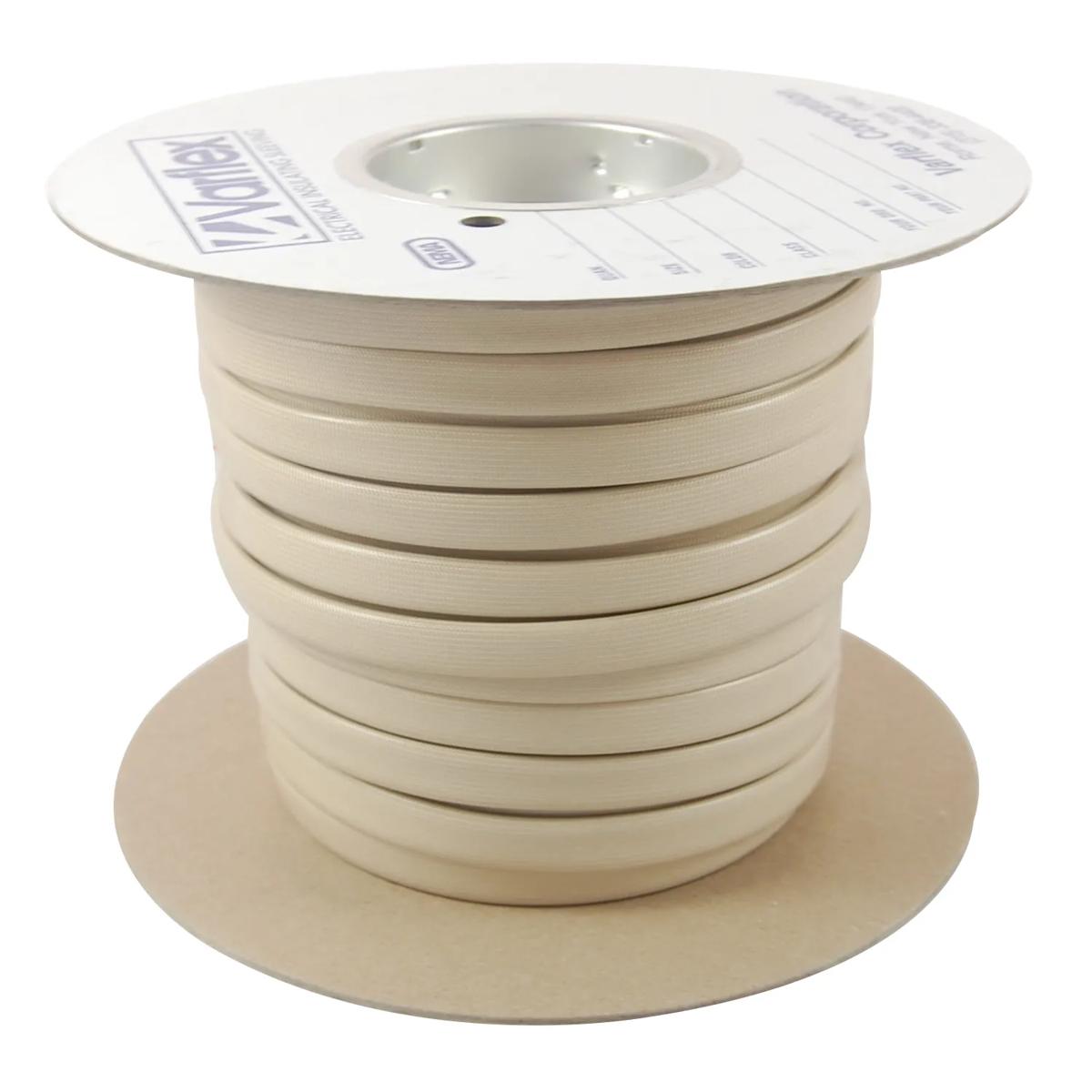

Varflex Varglas Class H Grade C-1 Silicone Rubber Coated Sleeving, MFR ID Varglas SIL RUB H-C-1
- MFR #Varglas SIL RUB H-C-1
- EIS #PH21-Varglas SIL RUB H-C-1
- Series #Varglas SIL RUB H-C-1
$2.87 - $1,611.67
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--| Stock Status | |||||
|---|---|---|---|---|---|
 | 150 ft | 1 AWG | Natural | $ / Foot | |
| 250 ft | 6 AWG | Natural | $ / Foot more info | |
| 250 ft | 8 AWG | Natural | $ / Foot more info | |
| 250 ft | 10 AWG | Natural | $ / Foot more info | |
| 500 ft | 18 AWG | Natural | $ / Foot more info | |
| 500 ft | 22 AWG | Natural | $ / Foot more info |
Varglas silicone rubber sleeving is produced by coating braided fiberglass with a high-performance silicone rubber that is extremely flexible and exhibits unusual toughness and abrasion resistance. - In addition to having a Class 200 °C rating, its brittle point of -73 °C also suggests its use in a wide range of applications requiring resistance to temperature extremes.
Features
- In addition to being well-suited as heavy duty insulation where subjected to high heat, such as in die-casting and plastic molding, varglas silicone rubber sleeving is also suitable for use in extremely low-temperature environments such as high altitude and aerospace applications
- Dielectric Grade: C-1
- Dielectric Strength: 1500 - 2500V
- Temperature Rating: -73 to 200 °C
Applications
- Motors and Generators
- Automotive, Marine and Aircraft
- Electrical and Electronic Components Such as Transformers, Coils, Relays, Etc
General Information
| Item Name | Silicone Rubber Coated Sleeving |
| Trade Name | Varglas |
| Series | Varglas SIL RUB H-C-1 |
Design & Construction
| Braid Type | Fiberglass |
| Grade | C-1 |
| Insulation Material | Silicone Rubber |
| Insulation Type | Class H |
| Insulation Coating Type | Silicone |
| NEMA Specification | NEMA TF-1 Type 5 |
Performance Details
| Tensile Strength | 1500 psi |
Electrical Properties
| Dielectric Strength | 1500 V |
Physical Properties
| Elongation | 800% |
| Hardness | 50 Shore A |
