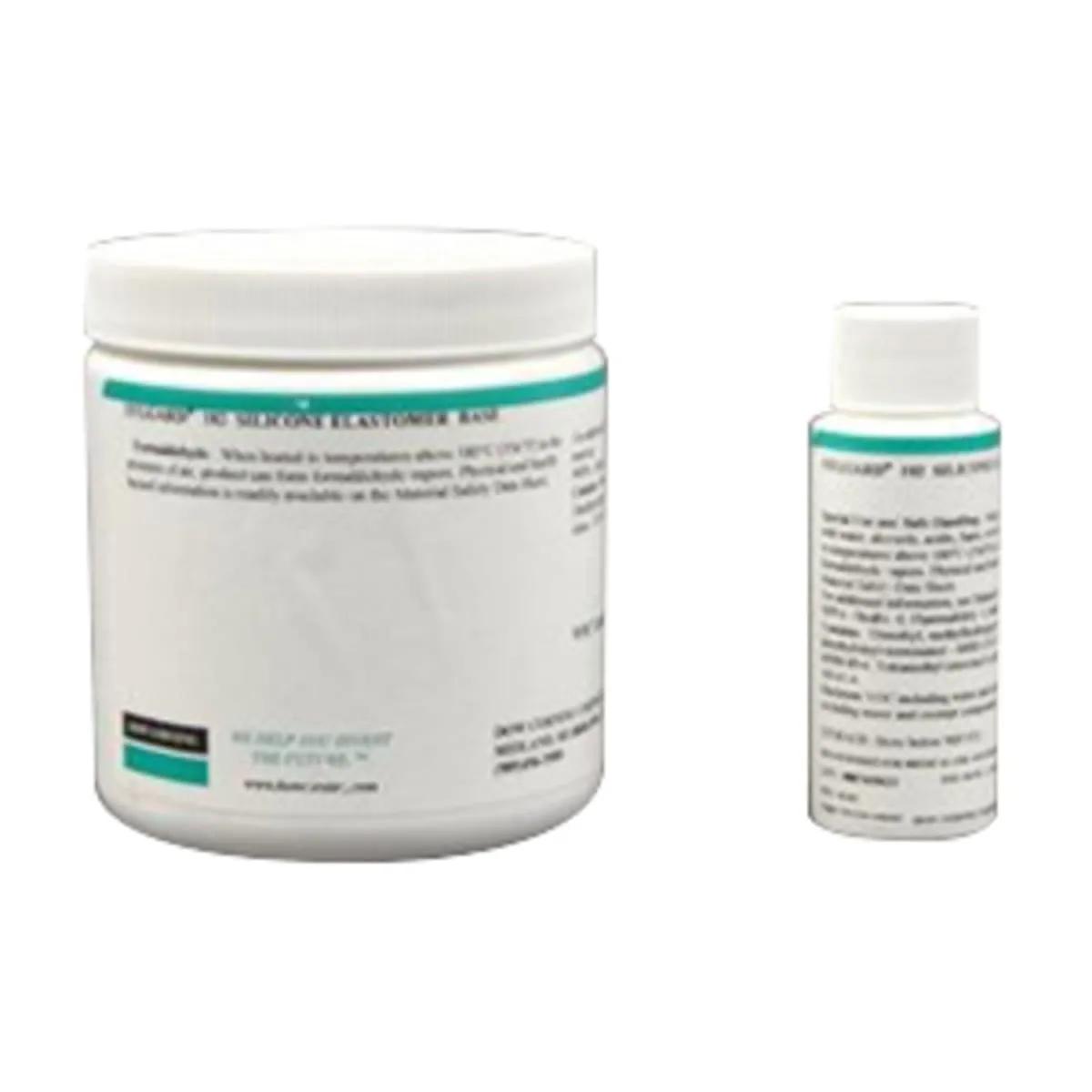

Dow Corning silicone encapsulants are supplied as two-part liquid component kits. When liquid components are thoroughly mixed, the mixture cures to a flexible elastomer, which is suited for the protection of electrical/electronic applications. For most uses, silicone elastomers should be operational over a temperature range of -45 to 200 °C for long periods of time. - 2-part, clear, 10:1, heat cure, good strength, UL and Mil Spec, same as Sylgard 184 but with longer working time. In applications requiring adhesion, priming will be required for the silicone encapsulants.
Features
- No exotherm during cure
- No solvents or cure by products
- Deep section cure
- Repairable
- Good dielectric properties
- Flexible elastomer
- Easy-to-use and repair
- Transparent for easy board and part inspection
- Flexible
- Low stress
Applications
- For General Potting Applications, Power Supplies, Connectors, Sensors, Industrial Controls, Transformers, Amplifiers, High Voltage Resistor Packs, Relays, Adhesive/encapsulant for Solar Cells, Adhesive Handling Beam Lead Integrated Circuits During Processing
General Information
| Item Name | Silicone Elastomer |
| Trade Name | Sylgard® |
| Series | 182 |
General Features
| Shelf Life | 24 Months |
| Standards | WEEE/RoHS Compliant |
| Storage Temperature | Below 25 °C |
Design & Construction
| Color - Part-A | Colorless |
| Color - Part-B | Colorless |
| Cure Type | Heat Cure |
| Form - Part-A | Liquid |
| Form - Part-B | Liquid |
Chemical Properties
| Composition - Part-A | Silicone |
| Composition - Part-B | Silicone Resin |
| Specific Gravity - Part-A | 1.03 |
| Viscosity - Part-A | 110 cSt |
| Viscosity - Part-B | 110 cSt |
Physical Properties
| Container Type | Kit |
| Hardness | 51 Shore A |
| Odor/Scent - Part-A | Slight |
