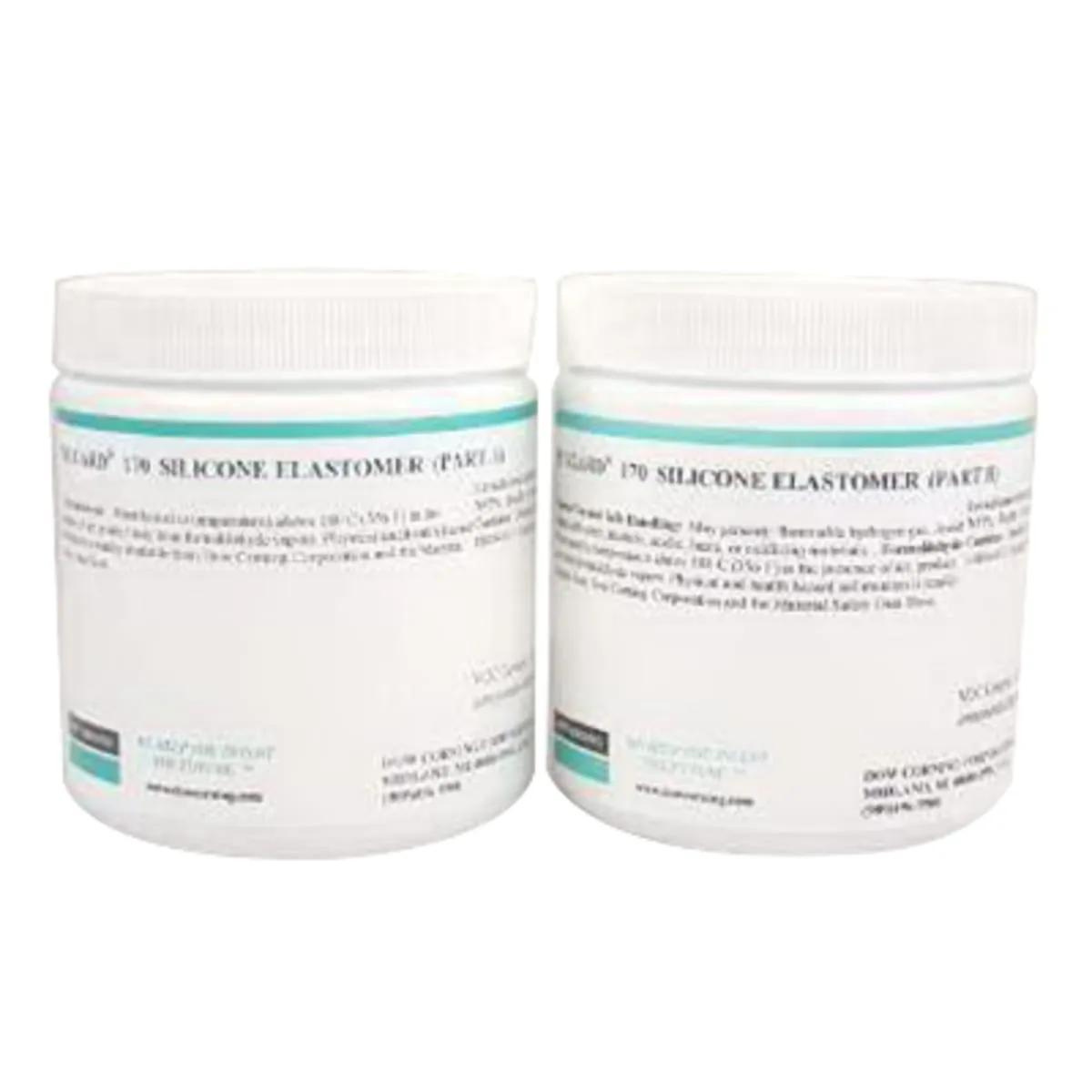

Dow 170K Sylgard® Silicone Elastomer, 0.9kg Kit, Black/Off-White, MFR ID 170-0.9KG-A&B
- MFR #170 A/B ELASTOMER KIT .9KG
- EIS #DC170X0.9KG
- Series #170K
$140.07 / Kit
In Stock | Ready to Ship
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
| Stock Status | |||
|---|---|---|---|
 | 0.9kg | $ / Kit |
Dow Corning brand silicone encapsulants are supplied as two-part liquid component kits with a mix ratio of 1:1. When liquid components are thoroughly mixed, the mixture cures to a flexible elastomer, which is well suited for the protection of electrical/electronic applications. This material has a UL 94 - V-0 flame rating. - 2-part, 1:1 mix, black, general purpose encapsulant with good flowability, long working time and flame resistance. Sylgard 170 silicone elastomer is suitable for use as an encapsulant or potting material.
Features
- Low viscosity
- Rapid room temperature or heat accelerated cure
- Moderate thermal conductivity
- Rapid, versatile cure processing controlled by temperature
- Shorter room temperature cure reduces cycle time
- Low viscosity enhances flow and fill in narrow spaces and around complex geometries
- Can be considered for uses requiring added flame resistance
- Thermosetting thermal resistance
- High and low temperature stable
Applications
- For use as a General Potting Material for Power Supplies, Connectors, Sensors, Industrial Controls, Transformers, Amplifiers, High Voltage Resistor Packs, Relays
General Information
| Item Name | Silicone Elastomer |
| Trade Name | Sylgard® |
| Series | 170K |
General Features
| Type | Part A and B |
| Standards | WEEE/RoHS Compliant |
Design & Construction
| Color - Part-A | Black |
| Color - Part-B | Off White |
| Cure Type | Room Temperature/Heat Cure |
| Form - Part-A | Liquid |
| Form - Part-B | Liquid |
Chemical Properties
| Composition - Part-A | Silicone |
| Composition - Part-B | Silicone |
| Specific Gravity - Part-A | 1.37 |
| Specific Gravity - Part-B | 1.37 |
| Viscosity - Part-A | 3000 sq-mm/sec |
| Viscosity - Part-B | 2000 sq-mm/sec |
Physical Properties
| Container Size | 0.9kg |
| Container Type | Kit |
| Hardness | 47 Shore A |
| Odor/Scent - Part-A | Slight |
| Odor/Scent - Part-B | Slight |
