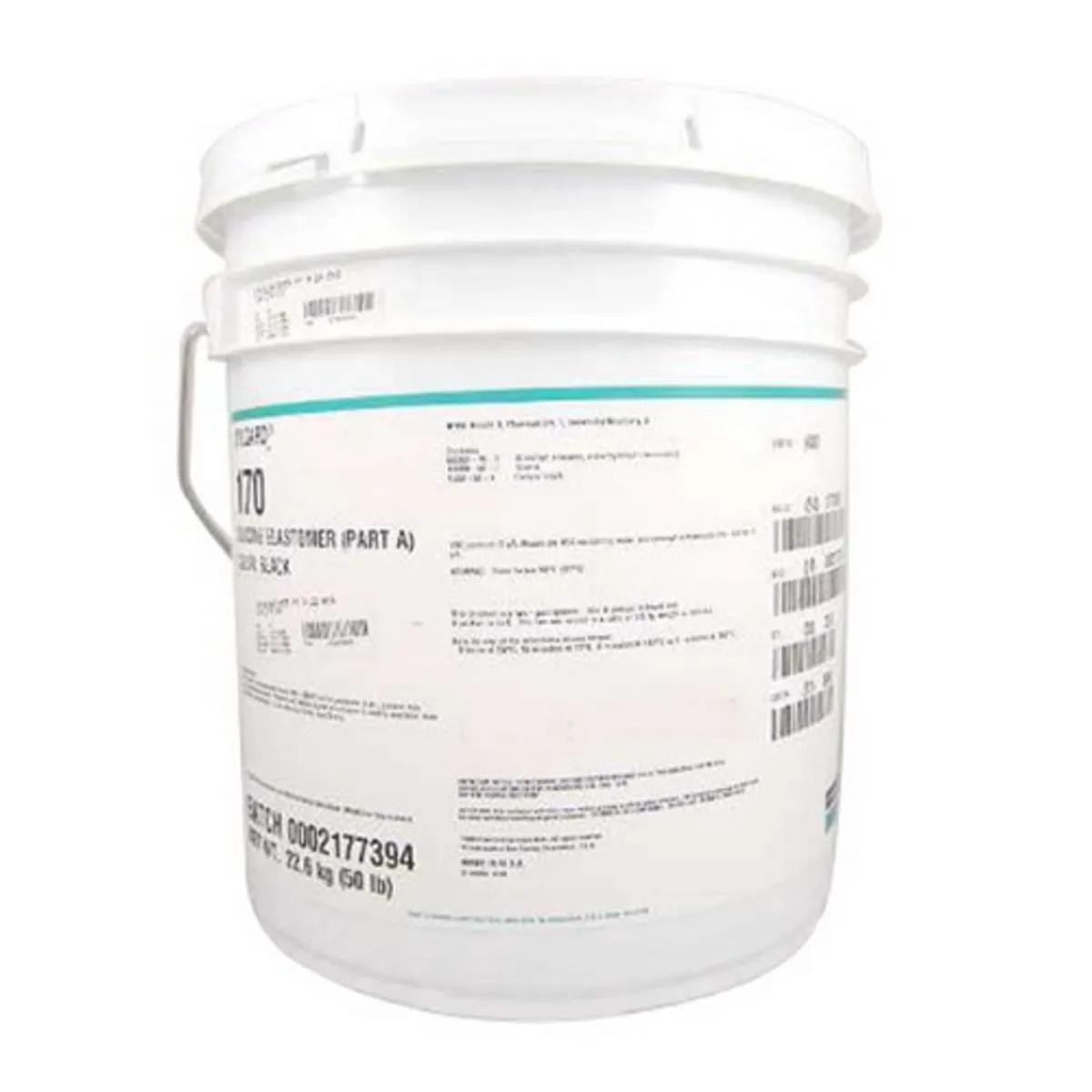

Dow 170 Sylgard® Silicone Elastomer, 22.6kg Pail, Black, MFR ID 170-22.6KG-A
- MFR #170 SIL ELAST PT A 22.6KG
- EIS #DC170X22.6KG-A
- Series #170
$2,028.31 / Pail
Available to Order
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
| Stock Status | ||||
|---|---|---|---|---|
 | 4.9kg | Off White | $ / Pail | |
 | 22.6kg | Black | $ / Pail | |
 | 22.6kg | Off White | $ / Pail | |
 | 4.9kg | Black | $ / Pail |
Dow Corning brand silicone encapsulants are supplied as two-part liquid component kits with a mix ratio of 1:1. When liquid components are thoroughly mixed, the mixture cures to a flexible elastomer, which is well suited for the protection of electrical/electronic applications. - Dow Corning silicone encapsulants cure without exotherm at a constant rate regardless of sectional thickness or degree of confinement. Dow Corning silicone elastomers require no post cure and can be placed in service immediately following the completion of the cure schedule.
Features
- Low viscosity
- Rapid room temperature or heat accelerated cure
- Moderate thermal conductivity
- Rapid, versatile cure processing controlled by temperature
- Shorter room temperature cure reduces cycle time
- Low viscosity enhances flow and fill in narrow spaces and around complex geometries
- Can be considered for uses requiring added flame resistance
- Thermosetting thermal resistance
- High and low temperature stable
Applications
- For use as a General Potting Material for Power Supplies, Connectors, Sensors, Industrial Controls, Transformers, Amplifiers, High Voltage Resistor Packs, Relays
General Information
| Item Name | Silicone Elastomer |
| Trade Name | Sylgard® |
| Series | 170 |
General Features
| Type | Part A |
| Standards | WEEE/RoHS Compliant |
Design & Construction
| Color | Black |
| Cure Type | Room Temperature/Heat Cure |
| Form | Liquid |
Chemical Properties
| Viscosity | 3000 sq-mm/sec |
| Composition | Silicone |
| Specific Gravity | 1.37 |
Physical Properties
| Container Size | 22.6kg |
| Container Type | Pail |
| Hardness | 47 Shore A |
| Odor/Scent | Slight |
