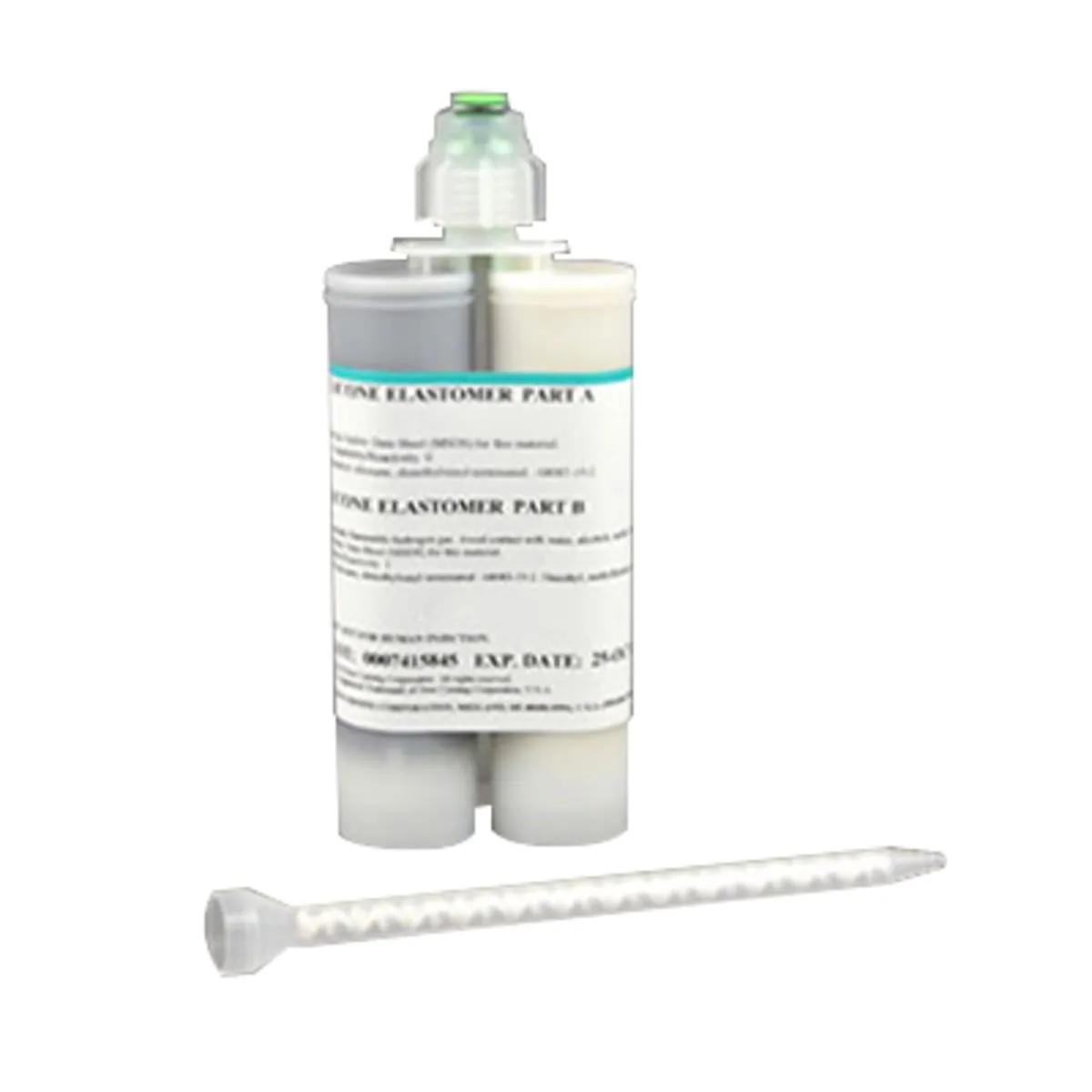

Dow 160 Sylgard® Silicone Elastomer, 210mL Kit, Dark Gray/Off-White, MFR ID 160-210ML-A
- MFR #160 A/B 210ML KIT
- EIS #DC160X210ML
- Series #160K
$259.75 / Kit
Available to Order
Min QTY1QTY Increment1
more info
Dow Corning brand silicone encapsulants are supplied as two-part liquid component kits with a mix ratio of 1:1. When liquid components are thoroughly mixed, the mixture cures to a flexible elastomer, which is well suited for the protection of electrical/electronic applications. Standard silicone encapsulants require a surface treatment with a primer in addition to good cleaning for adhesion while primerless silicone encapsulants require only good cleaning. - 2-part, 1:1 mix, dark gray, general purpose encapsulant with good flowability and flame resistance. Dow Corning silicone encapsulants cure without exotherm at a constant rate regardless of sectional thickness or degree of confinement.
Features
- Good flowability
- Room temperature or heat accelerated cure
- Moderate thermal conductivity
- Rapid, versatile cure processing controlled by temperature
- Can be considered for uses requiring added flame resistance
- Solventless, thermosetting
Applications
- For General Potting Applications, Power Supplies, Connectors, Sensors, Industrial Controls, Transformers, Amplifiers, High Voltage Resistor Packs, Relays
General Information
| Item Name | Silicone Elastomer |
| Trade Name | Sylgard® |
| Series | 160K |
General Features
| Type | Kit |
| Shelf Life | 18 Months |
| Standards | WEEE/RoHS Compliant |
Design & Construction
| Color - Part-A | Dark Gray |
| Color - Part-B | Off White |
| Cure Type | Room Temperature/Heat Cure |
| Form - Part-A | Liquid |
| Form - Part-B | Liquid |
Chemical Properties
| Composition - Part-A | Silicone Elastomer |
| Composition - Part-B | Silicone Elastomer |
| Specific Gravity - Part-A | 1.61 |
| Specific Gravity - Part-B | 1.6 |
| Viscosity - Part-A | 8100 mPas |
| Viscosity - Part-B | 3950 mPas |
Physical Properties
| Container Size | 210mL |
| Container Type | Kit |
| Hardness | 56 Shore A |
| Odor/Scent - Part-A | Low |
| Odor/Scent - Part-B | Low |
Documents
No Documents Found
