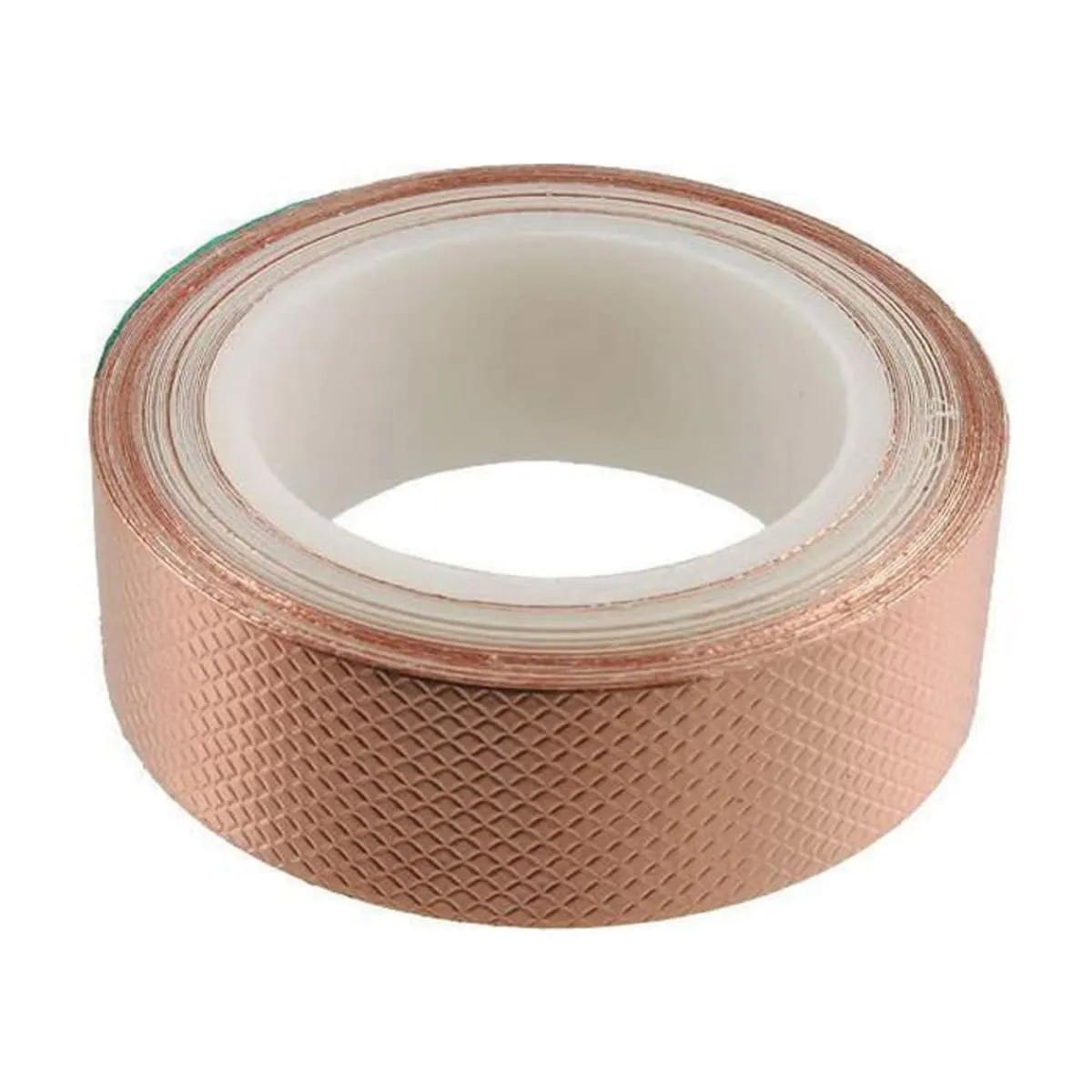

3M 1245 EMI Embossed Copper Foil Shielding Tape

The image shown is representative of the product family and may not specifically be the individual item.
The image shown is representative of the product family and may not specifically be the individual item.
The image shown is representative of the product family and may not specifically be the individual item.
The image shown is representative of the product family and may not specifically be the individual item.

MFR #:1245

EIS #:PH22-1245

MFR #:1245

EIS #:PH22-1245

0
0
3M 1245 tape consists of an embossed 1 oz deadsoft copper foil backing and an aggressive pressure sensitive acrylic adhesive. The edges of the embossed pattern pressed into the foil cut through the adhesive layer to establish reliable metal-to-metal contact between the backing and the application substrate. - The backings of shielding tapes 1245 (copper) are impressed with an embossed pattern that protrudes through the acrylic adhesive to make direct electrical contact with the application surface. This reliable through-the-adhesive conductivity system provides stable contact resistance and a high level of shielding effectiveness.
$13.09
 - $152.37
Select from the options below
0
0
3M 1245 tape consists of an embossed 1 oz deadsoft copper foil backing and an aggressive pressure sensitive acrylic adhesive. The edges of the embossed pattern pressed into the foil cut through the adhesive layer to establish reliable metal-to-metal contact between the backing and the application substrate. - The backings of shielding tapes 1245 (copper) are impressed with an embossed pattern that protrudes through the acrylic adhesive to make direct electrical contact with the application surface. This reliable through-the-adhesive conductivity system provides stable contact resistance and a high level of shielding effectiveness.

Product Options

Showing 8 out of 17 options
The image shown is representative of the product family and may not specifically be the individual item.
Width
4 Inch
EIS Part #
3M1245X4
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Width
3 Inch
EIS Part #
3M1245X3
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Width
2.25 Inch
EIS Part #
3M1245X2.25
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.  3M™ Embossed Copper Foil EMI Shielding Tape 1245 is an acrylic adhesive EMI shielding tape. This flame retardant tape is designed for applications…
Width
2 Inch
EIS Part #
3M1245X2
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Width
1.875 Inch
EIS Part #
3M1245X1.875
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Width
1.75 Inch
EIS Part #
3M1245X1.75
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Width
1.625 Inch
EIS Part #
3M1245X1.625
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.  3M™ Embossed Copper Foil EMI Shielding Tape 1245 is an acrylic adhesive EMI shielding tape. This flame retardant tape is designed for applications…
Width
1.5 Inch
EIS Part #
3M1245X1.5
$ / Roll

Attributes

General Information
Item NameShielding Tape
Trade Name3M
Series1245
General Features
TypeEMI, Embossed
Design & Construction
Adhesive TypeAcrylic
Backing MaterialCopper Foil
ColorCopper
Performance Details
Adhesive Strength35 oz/Inch
Breaking Strength25 lb/Inch
Flame RetardantYes
Physical Properties
Core Size3 Inch
Length18 Yard
Thickness4 mil
Width-
Environmental Condition
ResistsOxidation, Discoloration
