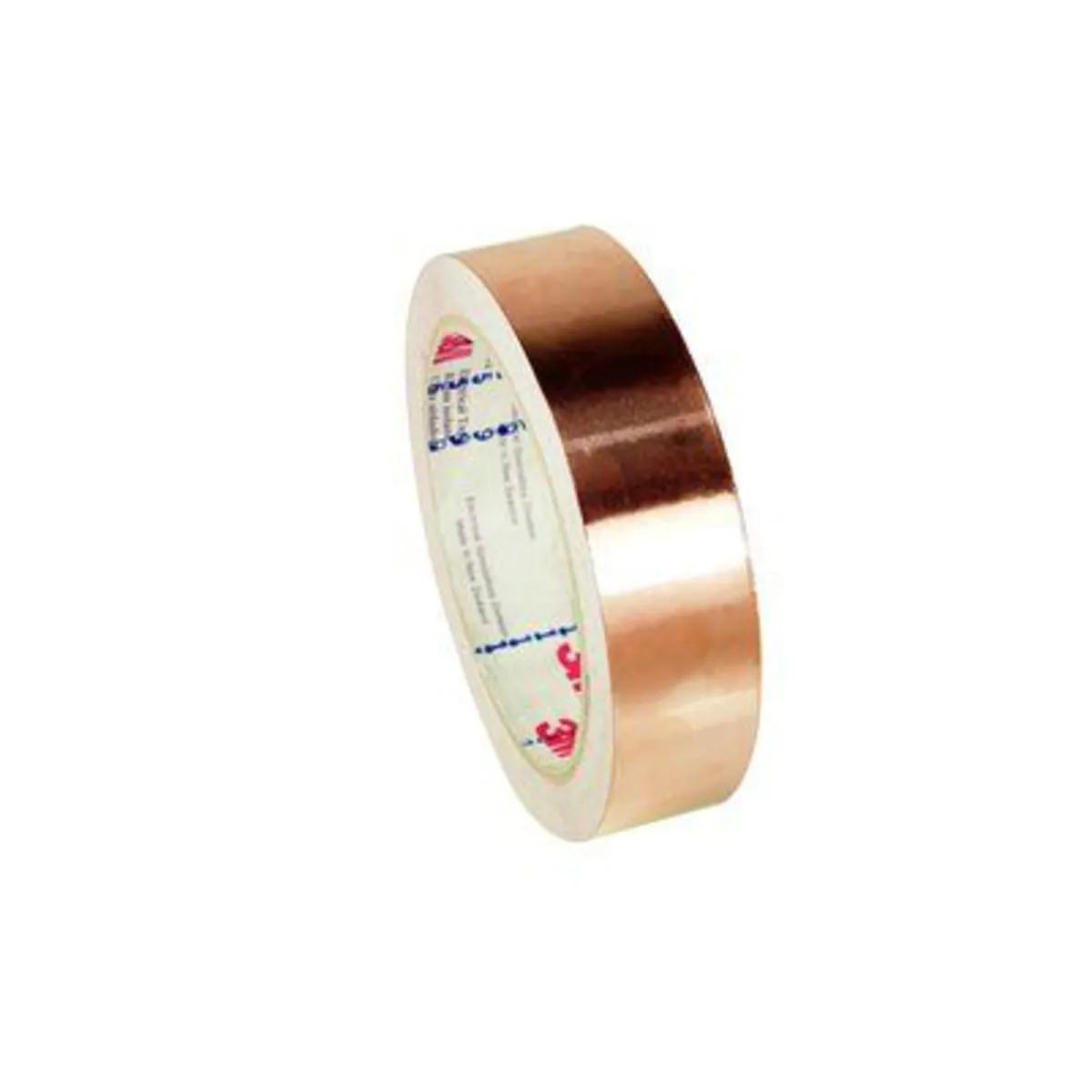

3M 1182 EMI Double Coated Copper Foil Shielding Tape, 3/4" x 18 yd x 3.5 Mil, Copper, MFR ID 7010398771
- MFR #1182
- EIS #3M1182X.75
- UPC #00051138496722
Requires Quote / Roll
Available to Order
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Products You May Also Like
| Stock Status | |||
|---|---|---|---|
 | 0.25 Inch | $ / Roll more info | |
| 0.5 Inch | $ / Roll | |
 | 0.125 Inch | $ / Roll | |
| 0.75 Inch | $ / Roll |
3M™ EMI Shielding Tape 1182 has deadsoft, copper foil backing with a pressure sensitive, electrically conductive, acrylic adhesive coating on both sides that ensures firm adherence. The conductive particles in the adhesive offer low resistance between the substrate and the backing. The construction of the tape offers a good method of bonding and grounding conductive surfaces. UL Listed and RoHS 2011/65/EU Compliant.
3M™ Copper Foil EMI Shielding Tape 1182 is a 3.5 mil thick acrylic adhesive shielding tape. This flame retardant tape is designed to bond 2 surfaces together physically and electrically. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.
Applications
- For Adhering a Conductive Gasket to a Conductive Surface as Part of the EMI Shielding Solution for an Electronic Enclosure
General Information
| Item Name | Shielding Tape |
| Trade Name | 3M |
| Series | 1182 |
General Features
| Type | EMI, Double-Coated |
Design & Construction
| Adhesive Type | Acrylic |
| Backing Material | Copper Foil |
| Color | Copper |
Performance Details
| Adhesive Strength | 35 oz/Inch |
| Breaking Strength | 25 lb/Inch |
| Flame Retardant | Yes |
Physical Properties
| Core Size | 3 Inch |
| Width | 0.75 Inch |
| Length | 18 Yard |
| Thickness | 3.5 mil |
