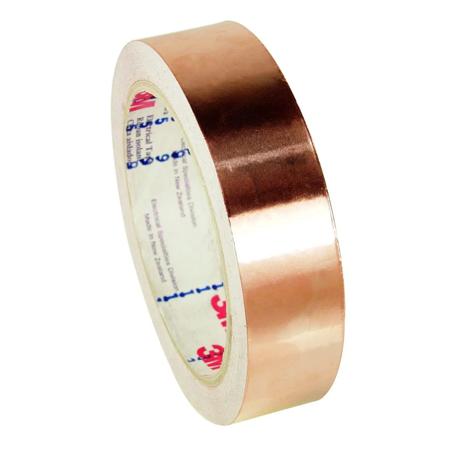

3M 1181 EMI Smooth Copper Foil Shielding Tape

EIS-3M Electrical OEM Materials-Shielding / Foil Tapes-3M1194X3-Images-Images
  • MFR #:1181
  • EIS #:PH22-1181
  • MFR #:1181
  • EIS #:PH22-1181
0
0
3M copper foil shielding tape 1181 has a 1.4 Mil smooth copper foil backing with a conductive acrylic pressure sensitive adhesive and liner. The unplated copper with conductive adhesive is a common EMI shielding tape for non-corrosive conditions. - This tape is supplied on are movable liner for easy handling and die-cutting. It has excellent solder ability. Supplied on a removable liner for easy handling and die-cutting.
$16.13
 - $604.64
Select from the options below
0
0
3M copper foil shielding tape 1181 has a 1.4 Mil smooth copper foil backing with a conductive acrylic pressure sensitive adhesive and liner. The unplated copper with conductive adhesive is a common EMI shielding tape for non-corrosive conditions. - This tape is supplied on are movable liner for easy handling and die-cutting. It has excellent solder ability. Supplied on a removable liner for easy handling and die-cutting.

Product Options

Showing 8 out of 10 options
EIS-3M Electrical OEM Materials-Shielding / Foil Tapes-3M1194X3-Images-Images
Width:
2.5 Inch
EIS Part #:
3M1181X2.5
$ / Roll
EIS-3M Electrical OEM Materials-Shielding / Foil Tapes-3M1194X3-Images-Images
Width:
2.25 Inch
EIS Part #:
3M1181X2.25
$ / Roll
EIS-3M Electrical OEM Materials-Shielding / Foil Tapes-3M1194X3-Images-Images
Width:
1.75 Inch
EIS Part #:
3M1181X1.75
$ / Roll
EIS-3M Electrical OEM Materials-Shielding / Foil Tapes-3M1194X3-Images-Images
Width:
1.5 Inch
EIS Part #:
3M1181X1.5
$ / Roll
EIS-3M Electrical OEM Materials-Shielding / Foil Tapes-3M1194X3-Images-Images
Width:
1.375 Inch
EIS Part #:
3M1181X1.375
$ / Roll
EIS-3M Electrical OEM Materials-Shielding / Foil Tapes-3M1194X3-Images-Images
Width:
1.25 Inch
EIS Part #:
3M1181X1.25
$ / Roll
EIS-3M Electrical OEM Materials-Shielding / Foil Tapes-3M1194X3-Images-Images
Width:
1.125 Inch
EIS Part #:
3M1181X1.125
$ / Roll
EIS-3M Electrical OEM Materials-Shielding / Foil Tapes-3M1194X3-Images-Images
Width:
0.75 Inch
EIS Part #:
3M1181X.75
$ / Roll

Attributes

General Information

Item NameShielding Tape
Trade Name3M

Series1181

General Features

TypeEMI, Smooth
Shelf Life60 Months

Design & Construction

Adhesive TypeAcrylic
Backing MaterialCopper Foil
ColorCopper

Performance Details

Adhesive Strength35 oz/Inch
Breaking Strength25 lb/Inch
Flame RetardantYes

Physical Properties

Core Size3 Inch
Elongation5%
Width-
Length18 Yard
Thickness2.6 mil

Environmental Condition

Temperature Rating130 °C
