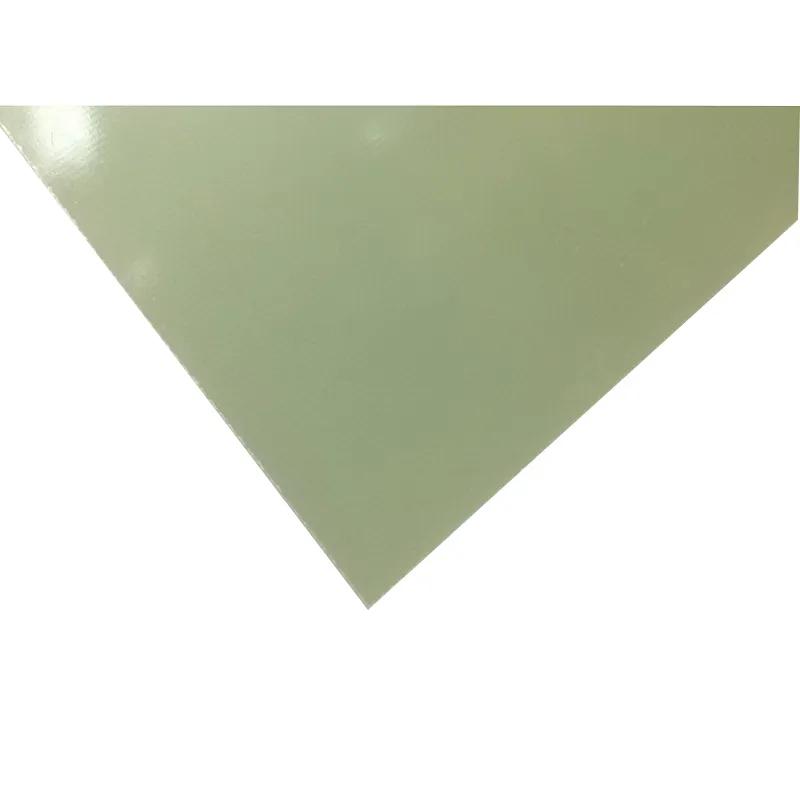

Current Green Sheet Laminate, MFR ID G10 FR4-Green

The image shown is representative of the product family and may not specifically be the individual item.
  • MFR #:G10 FR4-Green
  • EIS #:PH21-G10 FR4-Green
  • MFR #:G10 FR4-Green
  • EIS #:PH21-G10 FR4-Green
0
0
This material offers high mechanical strength at room temperature. It exhibits good dielectric loss and electrical strength under both dry and humid conditions. In addition, it has flame resistance of at least Class I in accordance with NEMA test method. - The ESD material is an integral part of the G10/FR4 glass epoxy base. It offers improved machinability and tighter tolerances.
$57.46
Select from the options below
0
0
This material offers high mechanical strength at room temperature. It exhibits good dielectric loss and electrical strength under both dry and humid conditions. In addition, it has flame resistance of at least Class I in accordance with NEMA test method. - The ESD material is an integral part of the G10/FR4 glass epoxy base. It offers improved machinability and tighter tolerances.

Product Options

Showing 2 out of 2 options
The image shown is representative of the product family and may not specifically be the individual item.
Thickness:
0.0312 Inch
EIS Part #:
PHENG101/322436CUR
$ / Sheet
The image shown is representative of the product family and may not specifically be the individual item.
Thickness:
0.0625 Inch
EIS Part #:
PHENG101/162436CUR
$ / Sheet

Attributes

General Information

Item NameSheet Laminate

SeriesG10 FR4-Green

Design & Construction

ColorGreen
MaterialGlass Epoxy Base
NEMA SpecificationG10/FR4

Physical Properties

Length36 Inch
Width24 Inch

Environmental Condition

Temperature Rating150 °C
