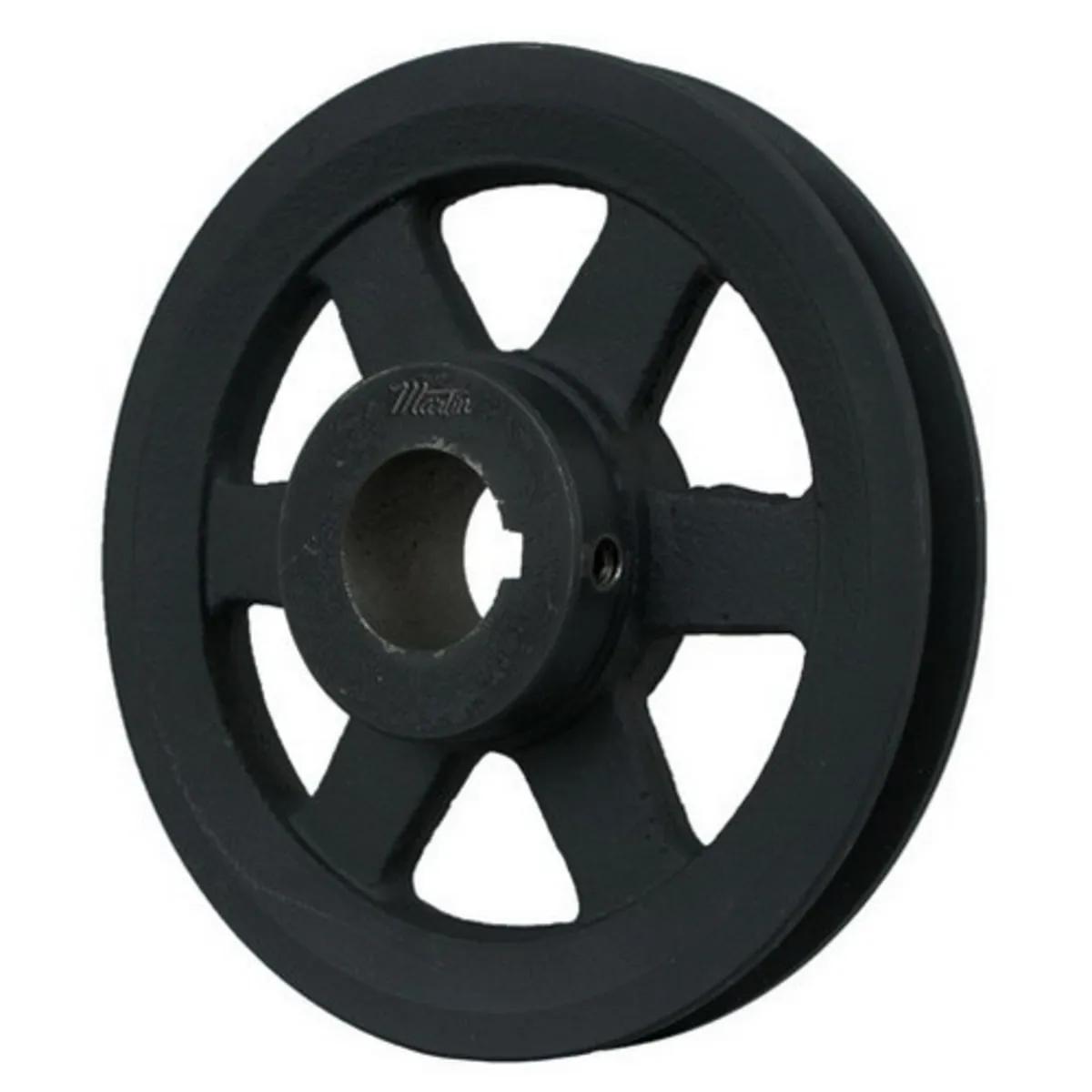

Leeson AK Finished (Fixed) Bore Sheave, 1 Groove, 7/8" Bore x 4.95" OD, Cast Iron, MFR ID AK51X7/8
- MFR #AK51X7/8
- EIS #AK51X7/8
- Series #AK
$29.08 / Piece
Available to Order
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
| Stock Status | |||||
|---|---|---|---|---|---|
 | 3.45 Inch | 0.5 Inch | 1 | $ / Piece | |
 | 4.95 Inch | 0.875 Inch | 1 | $ / Piece |
Leeson Power+Plus™ AK Series finished (Fixed) bore sheave are Manufactured in high quality gray cast iron. Finished bore with H7 precision
Leeson's AK Series finished (Fixed) bore sheaves are manufactured in high quality gray cast iron, finished bore with h7 precision. keyway and set screws in accordance with uses. b. 17.1-1967. OEM surface treatment available, paint or black phosphate - contact Leeson, individually packaged
Features
- Manufactured in high quality gray cast iron
- Finished bore with h7 precision
- Keyway and set screws in accordance with USAS. B. 17.1-1967
- OEM surface treatment available, paint or black phosphate - contact Leeson®
- Individually packaged
- Pitch Diameter: 4.7 Inch, 4.36 Inch
- Spoked pulley construction
General Information
| Item Name | Sheave |
| Trade Name | leeson electric |
| Series | AK |
General Features
| Net Weight | 1.7 lb |
| Standards | USAS. B. 17.1-1967 |
| Type | Finished (Fixed) Bore, Style: 3 |
Design & Construction
| Bushing Type | Single Groove |
| Material | Cast Iron |
Physical Properties
| Belt Section Size | A or 3L, 4L |
| Bore Diameter | 0.875 Inch |
| Face Width | 0.75 Inch |
| Length Through Bore | 1.1562 Inch |
| Number of Grooves | 1 |
| Outside Diameter | 4.95 Inch |
| Pitch Diameter | 4.7 Inch |
