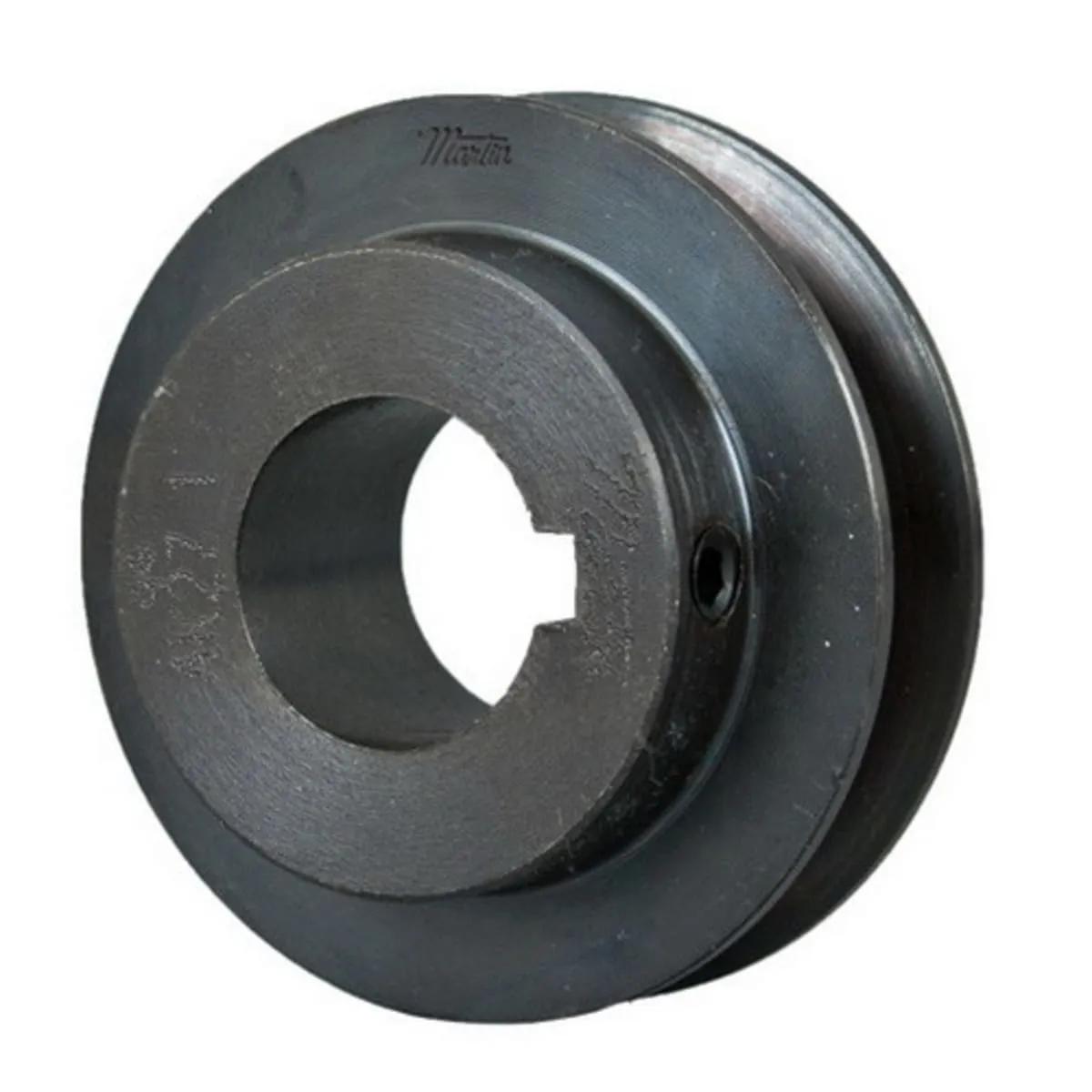

Leeson AK Finished (Fixed) Bore Sheave, 1 Groove, 1/2" Bore x 3.45" OD, Cast Iron, MFR ID AK34X1/2
- MFR #00733578
- EIS #AK34X1/2
$109.96 / Piece
Available to Order
Min QTY1QTY Increment1
more info
Leeson Power+Plus™ AK Series finished (Fixed) bore sheave are Manufactured in high quality gray cast iron. Finished bore with H7 precision
Leeson's AK Series finished (Fixed) bore sheaves are manufactured in high quality gray cast iron, finished bore with h7 precision. keyway and set screws in accordance with uses. b. 17.1-1967. OEM surface treatment available, paint or black phosphate - contact Leeson, individually packaged
Features
- Manufactured in high quality gray cast iron
- Finished bore with h7 precision
- Keyway and set screws in accordance with USAS. B. 17.1-1967
- OEM surface treatment available, paint or black phosphate - contact Leeson®
- Individually packaged
- Pitch Diameter: 3.2 Inch, 2.86 Inch
- Webbed pulley construction
General Information
| Item Name | Sheave |
| Trade Name | leeson electric |
General Features
| Net Weight | 0.9 lb |
| Standards | USAS. B. 17.1-1967 |
| Type | Finished (Fixed) Bore, Style: 2 |
Design & Construction
| Bushing Type | Single Groove |
| Material | Cast Iron |
Physical Properties
| Belt Section Size | A or 3L, 4L |
| Bore Diameter | 0.5 Inch |
| Face Width | 0.6562 Inch |
| Length Through Bore | 0.9375 Inch |
| Number of Grooves | 1 |
| Outside Diameter | 3.45 Inch |
| Pitch Diameter | 3.2 Inch |
