3M 685 Polyester Riveters Tape, 3/4" x 36 yd x 1.7 Mil, Transparent/Green, 48 Roll/Case, MFR ID 7000047513
- EIS #3M685X.75
- UPC #00021200035074
Requires Quote / Roll
Available to Order
Min QTY1QTY Increment1
more info
Pack48 Roll/Case
Why Buy From EIS?
- Authorized Distributor
- Fast Shipping
- Technical Support Available
Products You May Also Like

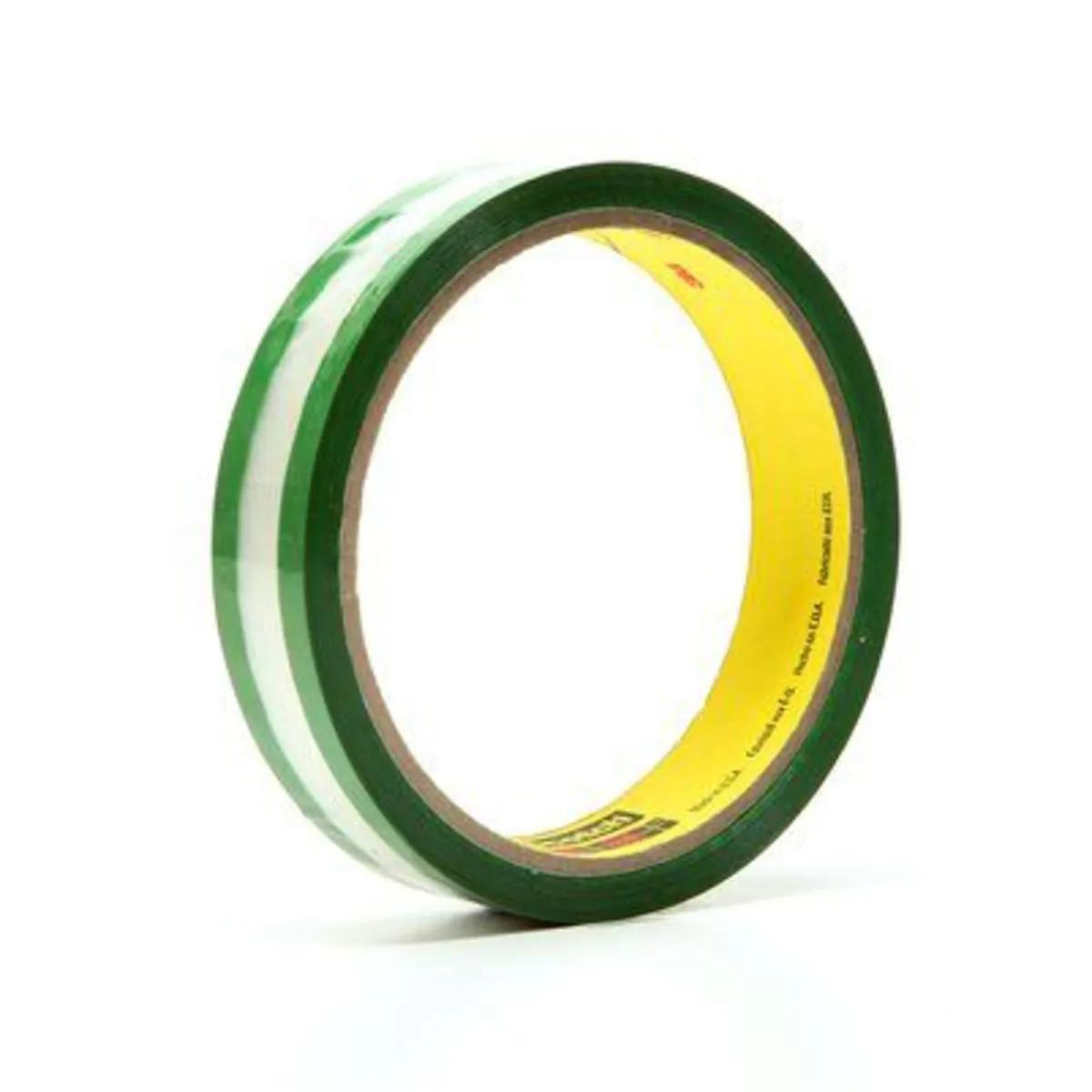

The 3M™ Riveters Tape 685 transparent film has a green 1.7 mil (.043 mm) polyester film adhesive and a rubber-strip coating along the edges of the tape. The transparent, tack-free center window also improves visibility and accuracy during the riveting process. - 3M riveters tape 685 is a zone-coated polyester film tape with a tack-free center window for use in holding rivets in place both prior to and during riveting. During riveting, helps ensure easy visibility of rivets and no adhesive transfer to rivet heads.
Features
- Holds rivets in place during riveting
- Easy visibility of rivets
- Non-stretch backing
- Decreases product rework and improves efficiency
- Tough polyester film that resists shattering or slivering to help save time and increase output
Applications
- For Holding Rivets
General Information
| Item Name | Riveters Tape |
| Trade Name | 3M |
| Series | 685 |
General Features
| Shelf Life | 18 Months |
| Storage Temperature | 15 to 27 °C |
Design & Construction
| Adhesive Type | Rubber |
| Backing Material | Polyester |
| Color | Transparent/Green |
Performance Details
| Adhesive Strength | 30 oz/Inch |
| Tensile Strength | 19 lb/Inch |
Physical Properties
| Core Size | 3 Inch |
| Width | 0.75 Inch |
| Length | 36 Yard |
| Thickness | 1.7 mil |
Environmental Condition
| Resists | Slivering, Shattering, Stretching |
| Temperature Rating | 66 °C |
