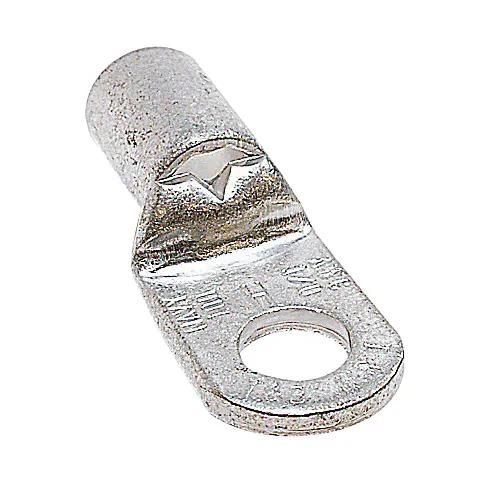

T&B K973 Copper Ring Terminal, 2/0AN - 3/0 AWG, 3/8" Stud, Metallic, 50/Inner Pack
- MFR #K973
- EIS #TERMK973
- Series #TERM97
- UPC #00078621081579
$567.02 / 100Piece
Pack: 50/Inner Pack, 250/Outer Pack
Available to Order
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack50/Inner Pack, 250/Outer Pack
| Stock Status | |||||
|---|---|---|---|---|---|
 | 50/Inner Pack, 500/Outer Pack | 0.25 Inch | 1/0AN - 2/0 AWG | $ / Piece Pack: 50/Inner Pack, 500/Outer Pack more info | |
 | 50/Inner Pack, 250/Outer Pack | 0.375 Inch | 2/0AN - 3/0 AWG | $ / Piece Pack: 50/Inner Pack, 250/Outer Pack more info |
These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). - T&B Non-Insulated Copper Ring Terminal.
General Information
| Item Name | Ring Terminal |
| Series | TERM97 |
General Features
| Type | Non-Insulated, Tubular |
| Standards | UL94 V-0 Listed, MS-20659-117 Mil Spe, CSA Certified, RoHS Compliant |
Design & Construction
| Stud Size | 0.375 Inch |
| Color | Metallic |
| Material | Copper |
Performance Details
| Operating Temperature | 150 °C |
Electrical Properties
| Voltage Rating | 600 V |
Physical Properties
| Length | 2.08 Inch |
| Tongue Size | 0.93 Inch |
