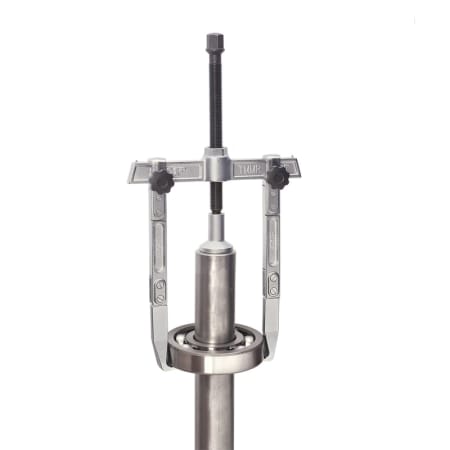

SKF TMMR Reversible Jaw Puller, 250 t Capacity, MFR ID 85HFR60
- EIS #:TMMR250XL
- Series #:TMMR
- EIS #:TMMR250XL
- Series #:TMMR
Available to Order
Min Qty:1
|Qty Increment:1
The multi-purpose SKF Reversible Jaw Pullers are suitable for internal and external pulling of bearings and other components, such as gears and pulleys. The standard range of eight pullers can accommodate a wide range of bearing and component sizes. Adding extra versatility to the TMMR..F puller programme, the four largest sizes are also available with extra long arms as a standard option (TMMR ….XL). - SKF TMMR Reversible Jaw Puller.
$1,167.26 / Piece
Min Qty:1
|Qty Increment:1
The multi-purpose SKF Reversible Jaw Pullers are suitable for internal and external pulling of bearings and other components, such as gears and pulleys. The standard range of eight pullers can accommodate a wide range of bearing and component sizes. Adding extra versatility to the TMMR..F puller programme, the four largest sizes are also available with extra long arms as a standard option (TMMR ….XL). - SKF TMMR Reversible Jaw Puller.
- Attributes
- Features
Attributes
General Information
Item NameReversible Jaw Puller
SeriesTMMR
Design & Construction
Capacity250 t
Features
- An essential and versatile tool for every workshop allows for external and internal pulling applications
- Self-locking arms for easy adjustment of width of grip
- Hexagonal head on beam enables rotation of puller and bearing during dismounting, improving ease of use
- Wide gripping range from 23 mm (0.9 Inch) internal to 350 mm (13.8 Inch) external, enables many bearings and components to be dismounted
- Unlike many similar pullers, the pullers can be used up to their full rated load capacity without permanently deforming the puller arms
- Arms and beam are zinc passivity for enhanced corrosion resistance and easy cleaning
- The extra long arm extension pieces, designed to be easy to fit and remove, can be used to further increase the effective arm length, using extension pieces does not compromise the overall puller strength
- The SKF reversible jaw pullers can also be supplied in three different sets, complete with a workshop stand
- 8.7 Inch effective arm length, 60 kN maximum withdrawal force, 160 Nm maximum torque, claws dimension: 0.63 Inch L x 0.98 Inch W x 0.33 Inch H
- 1.7 - 9.3 Inch W of grip external pull, 4.8 - 11.2 Inch W of grip internal pull
