Brady THT-70-719-20 UltraTemp® Square Thermal Transfer Printable Label, 1/4" x 1/4" x 0.0033", White, 20000/Roll
- MFR #THT-70-719-20
- EIS #BRATHT7071920
- UPC #75447392504
$1,874.39 / Roll
Pack: 20000/Roll
Available to Order
Min QTY1QTY Increment1
more info
Pack20000/Roll

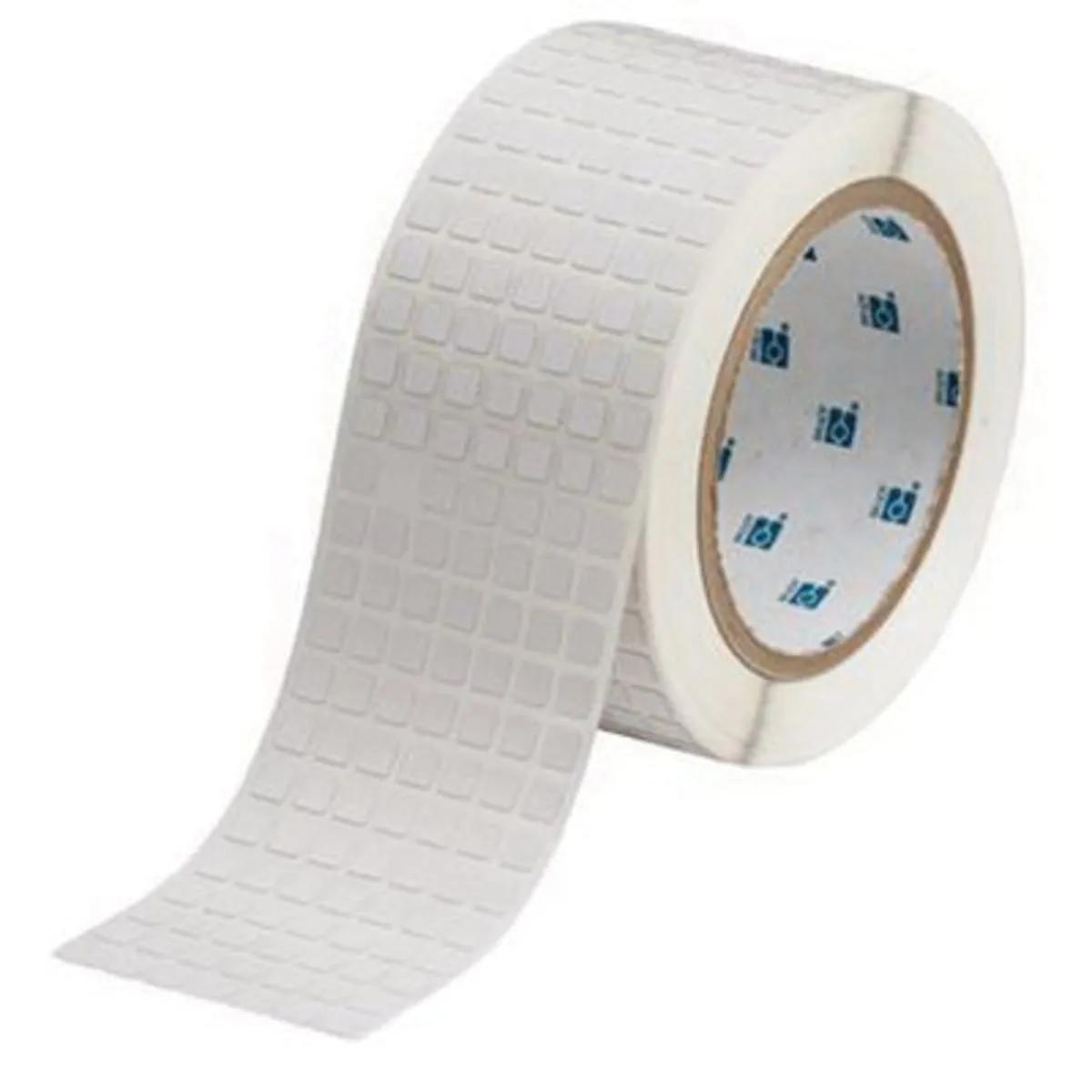

The Brady's thermal transfer printer label roll. These items come in a variety of shapes and sizes to accommodate many situations. One of the important components to selecting the right product is the proper label and adhesive material. ESD rated label that withstands high-temperatures while exhibiting excellent resistance to harsh fluxing and wave solder environments. Resists all commonly employed methods of cleaning. Brady UltraTemp® square die-cut thermal transfer printer label roll uses polyester for the label material and permanent acrylic as the adhesive. Matte topcoat is designed to resist solder balls from sticking to the label after exposure to molten wave solder.
Features
- Designed to withstand multiple cycles of harsh condition washes for printed circuit board cleaning processes
- Preheat can be employed to further enhance print permanence in the case of extreme solvent and/or abrasion exposure
- 3 Inch core
- Temperature Rating: -70 to 100 °C
- Designed to withstand multiple cycles of harsh condition washes for printed circuit board cleaning processes
- Preheat can be employed to further enhance print permanence in the case of extreme solvent and/or abrasion exposure
- 3 Inch core
- Temperature Rating: -70 to 100 °C
- Web width of 2.37 Inch, vertical repeat of 0.35 Inch, horizontal repeat of 0.32 Inch
Applications
- For Circuit Board and Component Identification, SMT - Top/Bottom, Through Hole - Bottom, Through Hole - Top, PCB Barcode
General Information
| Item Name | Printable Label |
| Series | B-719-THT-S |
General Features
| Shelf Life | 24 Months |
| Type | Thermal Transfer, Square |
Design & Construction
| Adhesive | Permanent Acrylic |
| Color | White |
| Legend | Blank |
| Material | Polyimide |
Physical Properties
| Length | 0.25 Inch |
| Thickness | 0.0033 Inch |
| Width | 0.25 Inch |
| Write-On Area | 0.25 Inch x 0.25 Inch |
Environmental Condition
| Temperature Rating | -70 to 100 °C |
Supporting Information
| For Use With | Brady 1244, 1344, 2461, 3481, 6441, 300MVP Plus, 200MVP Plus, 300X-Plus II, 360X-Plus II, 600X-Plus II, Tagus T200, Tagus T300, IP300, IP600, BBP81 Label Printers, 6000, 4700 Series Ribbon |
| Use With | Brady 1244, 1344, 2461, 3481, 6441, 300MVP Plus, 200MVP Plus, 300X-Plus II, 360X-Plus II, 600X-Plus II, Tagus T200, Tagus T300, IP300, IP600, BBP81 Label Printers, 6000, 4700 Series Ribbon |
