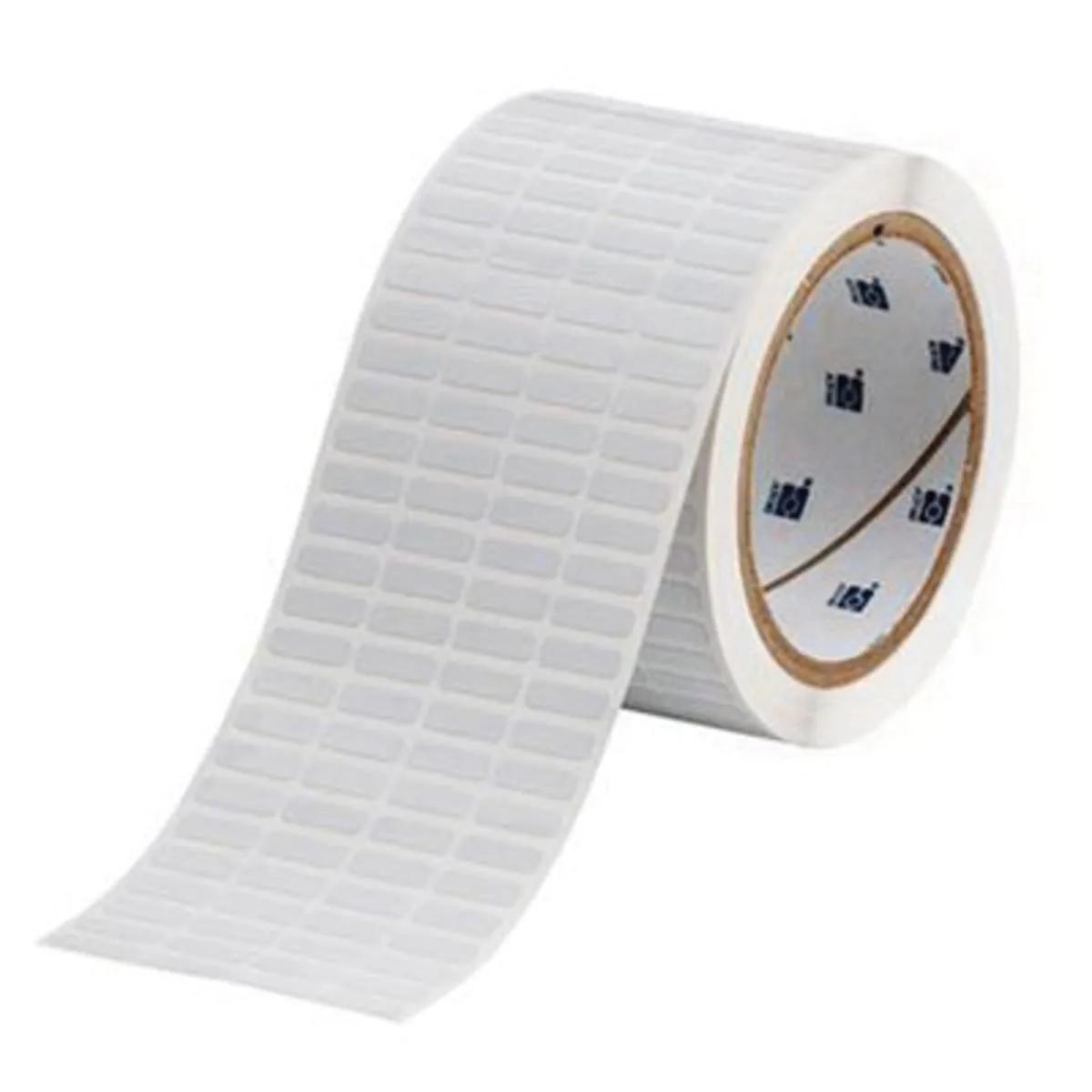

Brady THT-14-717-10 UltraTemp® Rectangle Thermal Transfer Printable Label, 0.65" x 0.2" x 0.0042", White, 10000/Roll
- MFR #THT-14-717-10
- EIS #BRATHT1471710
- UPC #75447392428
$909.56 / Roll
Pack: 10000/Roll
Available to Order
Min QTY1QTY Increment1
more info
Pack10000/Roll
The Brady's die-cut thermal transfer printer label roll. These items come in a variety of shapes and sizes to accommodate many situations. One of the important components to selecting the right product is the proper label and adhesive material. Supports thermal transfer printing. This die-cut thermal transfer printer label roll uses polyester for the label material and permanent acrylic as the adhesive. B717 in combination with the Series R6000 Halogen Free ribbon meets the requirements of MILSTD202G, method 215K.
Features
- B717 is constructed with a static dissipative adhesive
- This product has adhesive surface resistivity values in the recommended range for dissipative ESD packaging materials as defined by ANSI/ESD S5412008
- Preheat can be employed to further enhance print permanence in the case of extreme solvent and/or abrasion exposure
- B717 is constructed with a static dissipative adhesive
- This product has adhesive surface resistivity values in the recommended range for dissipative ESD packaging materials as defined by ANSI/ESD S5412008
- Preheat can be employed to further enhance print permanence in the case of extreme solvent and/or abrasion exposure
- 3 Inch core
- Web width of 2.95 Inch, vertical repeat of 0.3 Inch, horizontal repeat of 0.7 Inch
- Temperature Rating: -70 to 100 °C
Applications
- For PCB and Electronic Component PreProcess Labeling
General Information
| Item Name | Printable Label |
| Series | B-717-THT-R |
General Features
| Shelf Life | 24 Months |
| Type | Thermal Transfer, Rectangle |
Design & Construction
| Adhesive | Permanent Acrylic |
| Color | White |
| Legend | Blank |
| Material | Polyimide |
Physical Properties
| Length | 0.2 Inch |
| Thickness | 0.0042 Inch |
| Width | 0.65 Inch |
| Write-On Area | 0.65 Inch x 0.2 Inch |
Environmental Condition
| Temperature Rating | -70 to 100 °C |
Supporting Information
| For Use With | Brady 1244, 1344, 2461, 3481, 6441, 300MVP Plus, 200MVP Plus, 300X-Plus II, 360X-Plus II, 600X-Plus II, Tagus T200, Tagus T300, IP300, IP600, BBP81 Label Printers, R6000 Series Ribbon |
| Use With | Brady 1244, 1344, 2461, 3481, 6441, 300MVP Plus, 200MVP Plus, 300X-Plus II, 360X-Plus II, 600X-Plus II, Tagus T200, Tagus T300, IP300, IP600, BBP81 Label Printers, R6000 Series Ribbon |
