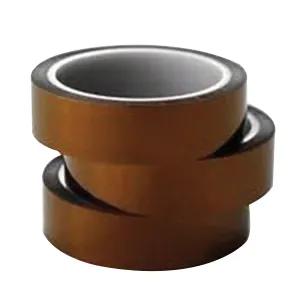

DuPont Kapton® HN General Purpose Polyimide Film
- MFR #Kapton® HN
- EIS #PH21-Kapton HN
- Series #Kapton® HN
$183.07 - $1,026.94
Refine your product below or compare all choices in the
Min QTY1QTY Increment1more infoPack--
| Stock Status | |||||
|---|---|---|---|---|---|
 | 5000 ft | 5 mil | 25 Inch | $ / US pound | |
| 5000 ft | 5 mil | 6.5 Inch | $ / US pound |
DuPont Kapton® HN General Purpose Polyimide Film. - Kapton® HN is the recommended choice for applications that require an all-polyimide film with an excellent balance of properties over a wide range of temperatures.
Features
- Kapton® HN has been used successfully in applications at temperatures as low as -269 °C and as high as 400 °C. Kapton® HN film can be laminated, metallized, punched, formed or adhesive coated
- Thermally conductive
- Excellent electrical properties
- Mechanical toughness
- Withstands extreme temperatures and harsh environments
- Retains its properties for extended storage periods
- Low moisture uptake and high moisture resistance
- Temperature Rating: -269 to 400 °C
- Tensile Strength: 139 - 231 Mpa
Applications
- Mechanical Parts
- Electronic Parts
- Electrical Insulation
- Pressure Sensitive Tape
- Fiber Optics Cable
- Insulation Blankets
- Insulation Tubing
- Automotive Diaphragms Sensors and Manifolds
- Etching
General Information
| Item Name | Polyimide Film |
| Trade Name | Kapton® |
| Series | Kapton® HN |
General Features
| Type | General Purpose |
Performance Details
| Tensile Strength | 139 Mpa |
Physical Properties
| Density | 1.42 g/cc |
Documents
No Documents Found
