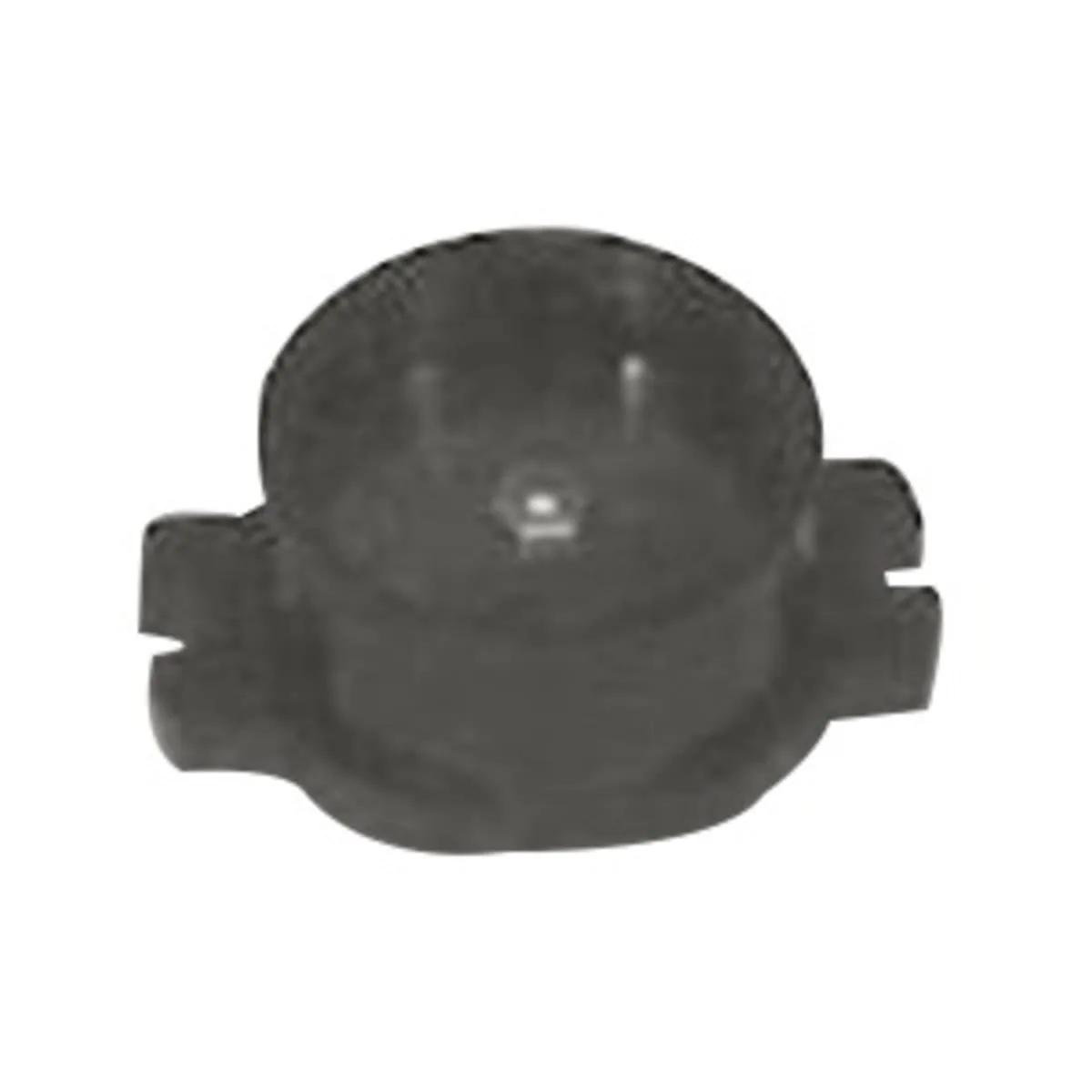

Leeson 1-Phase Auto Phenolic Motor Protector, MFR ID leeson-phenolicmotorprotector-auto
- MFR #leeson-phenolicmotorprotector-auto
- EIS #PH23-leeson-phenolicmotorprotector-auto
- Series #Leeson-Phenolic Motor Protector-Auto
$15.95 - $50.54
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--| Stock Status | ||||
|---|---|---|---|---|
 | 1.25 Inch dia x 1 Inch | 300002.01 | $ / Piece | |
| 1 Inch dia x 0.75 Inch | 300014.01 | $ / Piece | |
| 1.25 Inch dia x 1 Inch | 300019.01 | $ / Piece | |
| 1 Inch dia x 0.75 Inch | 300016.01 | $ / Piece | |
| 1 Inch dia x 0.75 Inch | 300028.01 | $ / Piece | |
| 1 Inch dia x 0.75 Inch | 300055.01 | $ / Piece |
Klixon Phenolic Motor Protectors are equipped with a bimetallic snap acting disc, on which the contacts are mounted, and through which the current flows. If overheating conditions occur, the heating effect of the current flow through the Klixon disc and the influence of motor heat will cause the disc temperature to rise. When the disc reaches the calibrated set point, the Klixon protector automatically opens and shuts down the motor, limiting the winding and shell temperature. - Normally closed "make or break" Klixon® contact system, which is operated by a snap action disc, is sensitive to both temperature and current. Precision calibration – temperature calibrated and inspected under controlled conditions for dependable performance.
Features
- Normally closed "make or break" klixon® contact system, which is operated by a snap action disc, is sensitive to both temperature and current
- Precision calibration-temperature calibrated and inspected under controlled conditions for dependable performance
- Automatic or manual reset series available, easy to install
- VDE certificate with production surveillance, overheating protector, 37A maximum locked rotor 230VAC, file 4464.4-4510-1013, license No. 3938 UG for 3/4 Inch only
- Inherent protection devices for approximately 1/2 to 5 HP motors used in applications such as industrial motors, agricultural equipment, well and sump pumps, fans, air conditioners, refrigerators, home appliances, etc
- When properly applied, protector shuts off motor when temperature exceeds maximum safe level due to an overload or stalled (locked rotor) condition
Applications
- Acceptance Testing And Preventive Maintenance, Motors (AC And DC), Transformers, Cables, Heaters, Relays, Circuit Breakers, Rugged Construction Designed For Mining, Industrial, Heavy-duty Field, Offshore And Military Applications
General Information
| Item Name | Phenolic Motor Protector |
| Trade Name | Klixon® |
| Series | Leeson-Phenolic Motor Protector-Auto |
General Features
| Type | 1-Phase, Auto, Eared Base |
| Standards | UL File No E15962 Listed, CSA File No LR11372 Certified |
Electrical Properties
| Contact Configuration | 1NC |
Supporting Information
| OEM ID | PH23-leeson-phenolicmotorprotector-auto |
