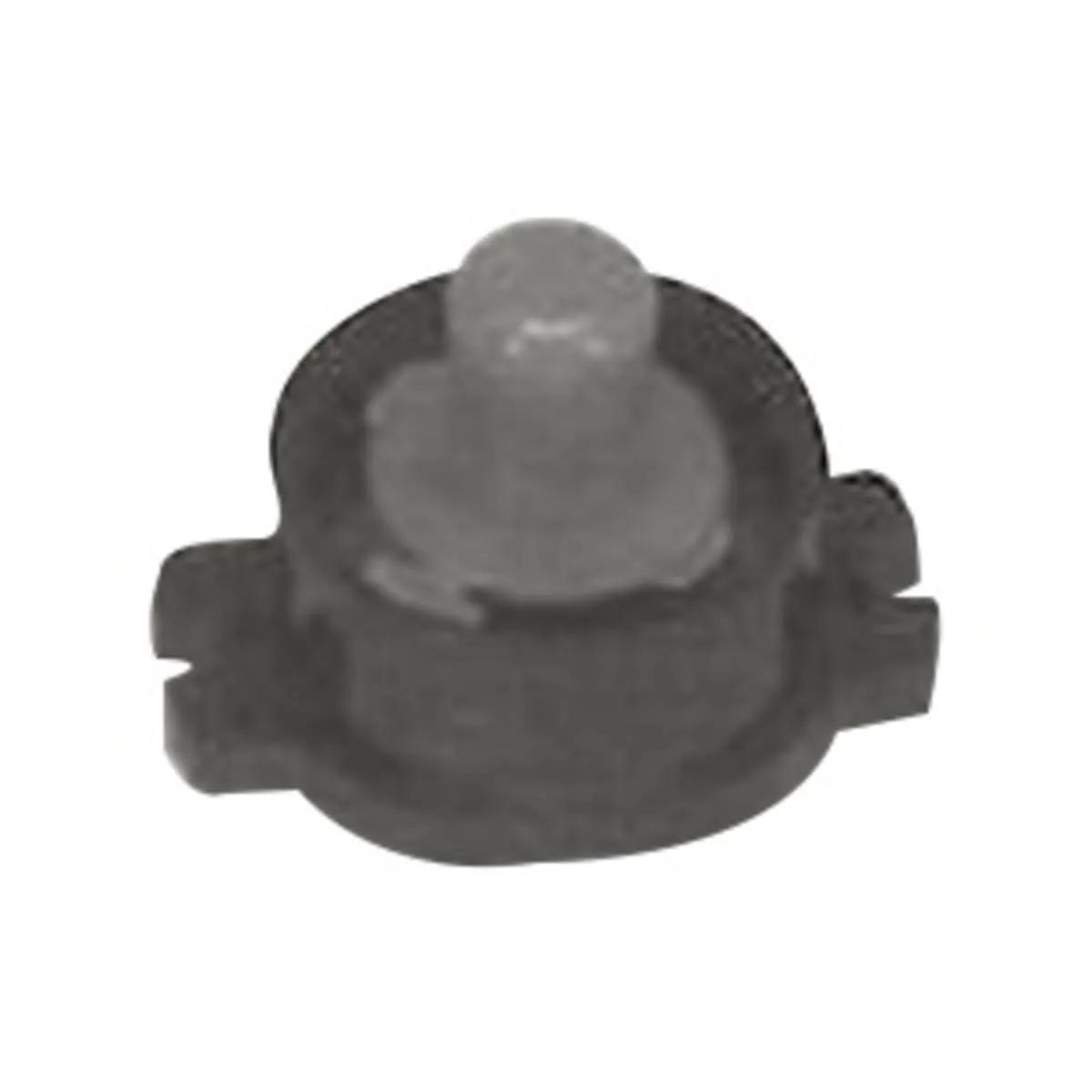

Leeson CED 2799 Phenolic Overload Protector, 1-Phase, Eared Base, 1-1/4" dia x 1" H
- MFR #300017.02
- EIS #300017.02
- Series #OP-3000
$54.07 / Piece
Available to Order
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
| Stock Status | |||
|---|---|---|---|
 | 1.25 Inch dia x 1 Inch H | $ / Piece | |
 | 1 Inch dia x 0.75 Inch H | $ / Piece |
Overload Protector is overheating conditions occur, the heating effect of the current flow through the Klixon disc and the influence of motor heat will cause the disc temperature to rise.
Klixon Phenolic Motor Protectors are equipped with a bimetallic snap acting disc, on which the contacts are mounted, and through which the current flows. When the disc reaches the calibrated set point, the Klixon protector automatically opens and shuts down the motor, limiting the winding and shell temperature.
Features
- Normally closed "make or break" klixon® contact system, which is operated by a snap action disc, is sensitive to both temperature and current
- Precision calibration-temperature calibrated and inspected in controlled ambient for dependable consistent performance
- Easy to install
- VDE certificate with production surveillance, overheating protector, 37A maximum locked rotor 230VAC, file 4464.4-4510-1013, license No 3938 UG for 3/4 Inch M.P only
- When properly applied, protector shuts off motor when temperature exceeds maximum safe level due to an overload or stalled (locked rotor) condition
- Amperage Rating: 37A Locked Rotor
General Information
| Item Name | Overload Protector |
| Trade Name | Leeson |
| Series | OP-3000 |
General Features
| Standards | UL File No E15962 Listed, CSA File No LR11372 Certified, VDE Approved |
| Type | 1-Phase, Eared Base |
Design & Construction
| Material | Phenolic |
Electrical Properties
| Amperage Rating | 37 A |
| Voltage Rating | 230 V |
Physical Properties
| Dimensions | 1.25 Inch dia x 1 Inch H |
Supporting Information
| For Use With | Approximately 1/2 - 5 HP Motors used in Applications such as Industrial Motors, Agricultural Equipment, Well and Sump Pumps, Fans, Air Conditioners, Refrigerators, Home Appliances, etc |
| Use With | Approximately 1/2 - 5 HP Motors used in Applications such as Industrial Motors, Agricultural Equipment, Well and Sump Pumps, Fans, Air Conditioners, Refrigerators, Home Appliances, etc |
