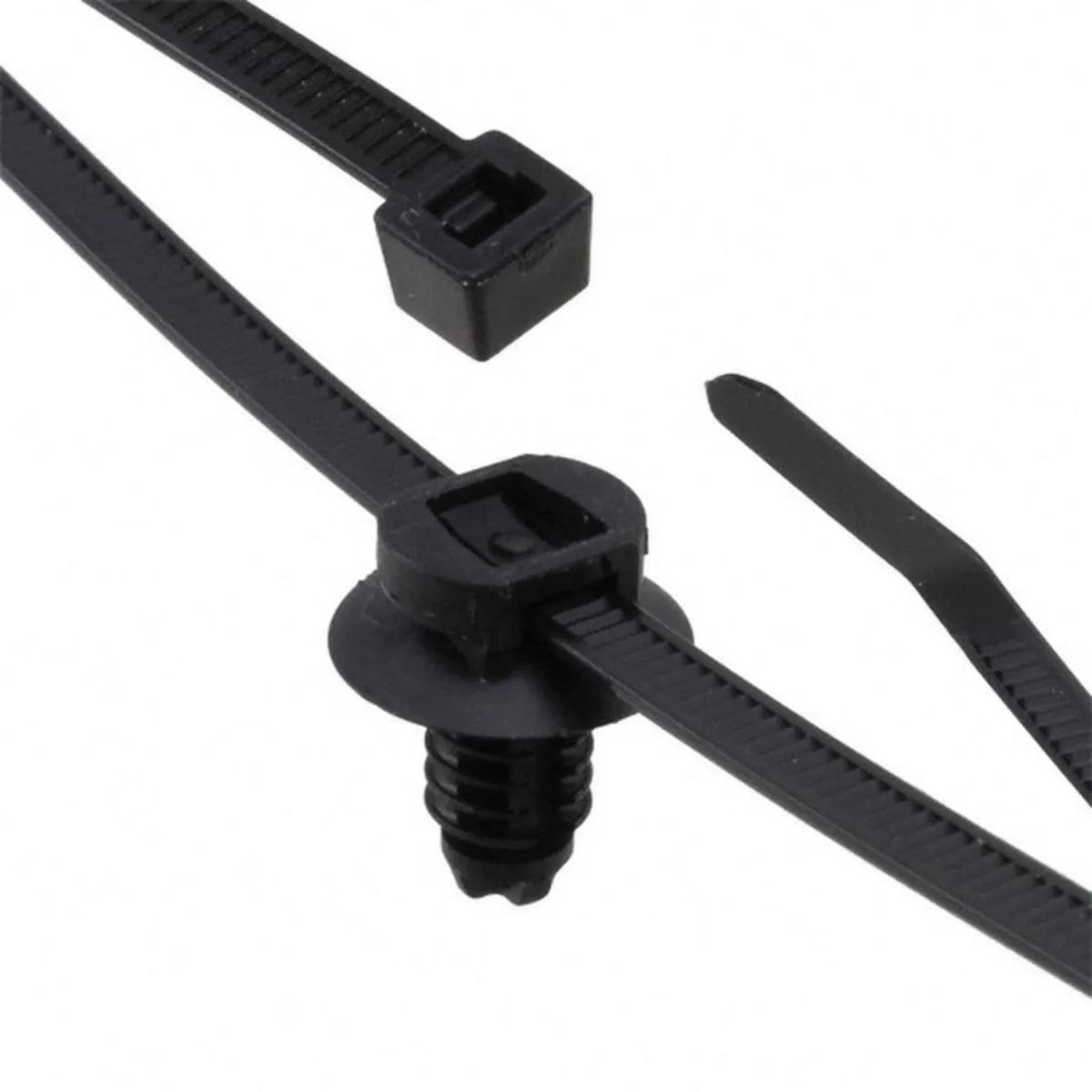

HellermannTyton T50RFT7 Fir Tree Black Polyamide Mount and Cable Tie Assembly, 7.87" L, 50 lb, 1000/Bag
EIS #:TYT50R/FT7
UPC #:00089306270560
EIS #:TYT50R/FT7
UPC #:00089306270560
Out of Stock
Min Qty:1
|Qty Increment:1
Pack:1000/Bag
HellermannTyton's fir tree mounts provide a secure grip in a mounting hole and protect against dirt and other impurities. The mount can slide along the strap of the cable tie for proper orientation. - The fir tree mounts are designed to provide a low insertion force and high extraction force. This mount is sold as an assembly with the cable tie.
$420.12 / 1000Piece
Pack: 1000/Bag
Min Qty:1
|Qty Increment:1
Pack:1000/Bag
HellermannTyton's fir tree mounts provide a secure grip in a mounting hole and protect against dirt and other impurities. The mount can slide along the strap of the cable tie for proper orientation. - The fir tree mounts are designed to provide a low insertion force and high extraction force. This mount is sold as an assembly with the cable tie.
- Attributes
- Features
Attributes
General Information
Item NameMount and Cable Tie Assembly
General Features
TypeFir Tree
Design & Construction
ColorBlack
Locking MechanismSelf Locking
MaterialPolyamide 6.6
MountingFir Tree
Performance Details
Operating Temperature-40 to 221 °F
Tensile Strength50 lb
Physical Properties
Head Height0.22 Inch
Head Width0.3 Inch
Length7.87 Inch
Thickness0.05 Inch
Width0.18 Inch
Environmental Condition
ResistsUV Radiation
Features
- Staggered fir tree branch design provides low insertion forces and high extraction force
- Initial fir tree serves as a locating feature for assistance in blind assembly applications
- Disc feature provides anti-rattle protection in high vibration applications
- 0.05 Inch x 0.5 Inch height
- 0.256 - 0.276 Inch mounting hole diameter
- 0.46 Inch x 0.75 Inch mount length
- 0.45 Inch x 0.2 Inch mount width
