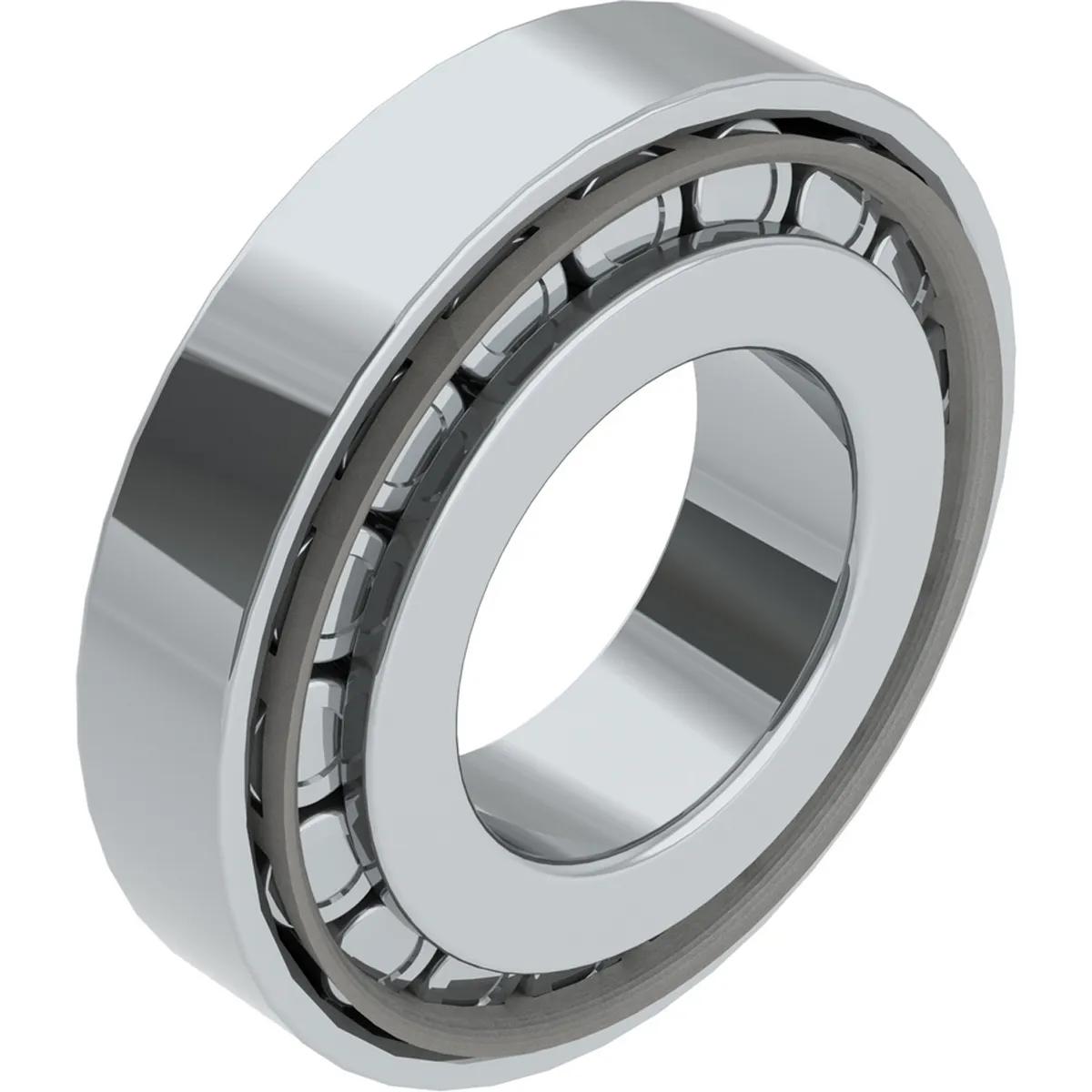

The image shown is representative of the product family and may not specifically be the individual item. Tapered Roller Bearings are best at handling heavy combined (radial & axial) loading at a medium to low rotating speed. They're comprised of a sep…
NACHI AMERICA INC.

Nachi E30218JBNLS - E30200 Series Metric Taper Roller Bearing, MFR ID NAC-30218

  • MFR #E30218JBNLS
  • EIS #3021802
  • UPC #4991893858891
$113.73 / Piece
In Stock | Ready to Ship
Min QTY1QTY Increment1
more info

Tapered Roller Bearings are best at handling heavy combined (radial axial) loading at a medium to low rotating speed. They're comprised of a seperable Cup Cone which allows preload to be adjustable to the user's preference. Bearings designated as E ...... J (E prefix and J suffix) comply with ISO standards in subunit dimensions. The cups and cones of these bearings are internationally interchangeable. NACHI manufactures Tapered Roller Bearings in both Metric and Inch sizing.

General Information

Item NameMetric Taper Roller Bearing

General Features

Net Weight5.84 lb

Design & Construction

Bore TypeCylindrical
Cage MaterialJIS SPCC Steel
Closure TypeNo
Inner Ring MaterialJIS SUJ2 Steel
Outer Ring MaterialJIS SUJ2 Steel
Rolling Element MaterialJIS SUJ2 Steel

Performance Details

Dynamic Load Capacity204000 N
Operating Temperature120 °C (248 °F)
Precision ClassP0
Speed Rating2400 rpm (Grease) | 3200 rpm (Oil)
Static Load Capacity261000 N

Physical Properties

Bore Diameter90 mm
Outside Diameter160 mm
Overall Width32.5 mm
