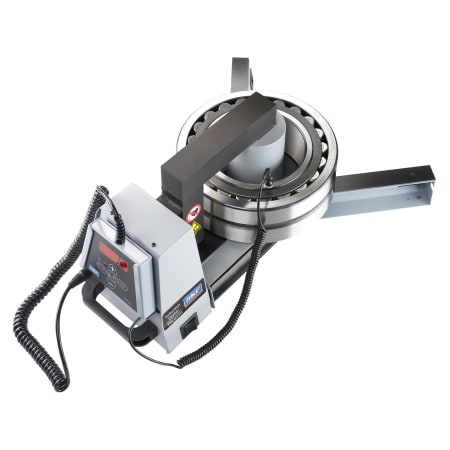

SKF TIH Medium Induction Heater, 570 mm W x 230 mm D x 350 mm H, 400 - 460V, 50/60®Hz, Steel And Glass Filled Polyamide
MFR #:TIH 100M/MV
EIS #:TIH100M/MV
MFR #:TIH 100M/MV
EIS #:TIH100M/MV
Out of Stock
Min Qty:1
|Qty Increment:1
The SKF medium induction heater TIH 100m has the same high standards of efficiency and performance as the small heater combined with increased capacity. The advanced design of the power electronics allows features of accurate electric current control, cut-outs to avoid overheating, controls on rate of temperature increase, these are as some of the standard features in the TIH...m range. - SKF TIH Medium Induction Heater.
$21,423.54 / Piece
Min Qty:1
|Qty Increment:1
The SKF medium induction heater TIH 100m has the same high standards of efficiency and performance as the small heater combined with increased capacity. The advanced design of the power electronics allows features of accurate electric current control, cut-outs to avoid overheating, controls on rate of temperature increase, these are as some of the standard features in the TIH...m range. - SKF TIH Medium Induction Heater.
- Attributes
- Features
Attributes
General Information
Item NameMedium Induction Heater
SeriesTIH_100
General Features
Net Weight92 lb
Design & Construction
Demagnetization<2 A/cm
MaterialSteel And Glass Filled Polyamide
Performance Details
Heating Capacity120 kg
Operating Area6.1 Inch W x 8 Inch H
Time Control60 min
Electrical Properties
Frequency Rating60 Hz
Power Consumption4.6 kVA
Voltage Rating460 V
Physical Properties
Bore Diameter0.8 Inch
Coil Diameter4.3 Inch
Dimensions570 mm W x 230 mm D x 350 mm H
Standard Yoke Size80 mm
Features
- Capable of heating a 97 kg (213 lb) bearing in less than 20 min
- Supplied standard with three yokes, allowing bearings with a bore diameter from 20 mm (0.8 Inch) up to a maximum weight of 120 kg (264 lb) to be heated
- Swivel arm for large size yoke
- Standard yokes (included) 80 mm (3.1 Inch), 40 mm (1.6 Inch), 20 mm (0.8 Inch) to suit bearing/work piece minimum bore diameter
- Bore Diameter: 0.8 - 15.7 Inch
- Frequency Rating: 50/60�Hz
- Power Consumption: 4 - 4.6kVA
- Standard Yoke Size: 80 mm, 40 mm, 20 mm
- Temperature Rating: 20 to 250 °C (68 to 482 °F)
- Time Control: 0 - 60 min
- Voltage Rating: 400 - 460V
