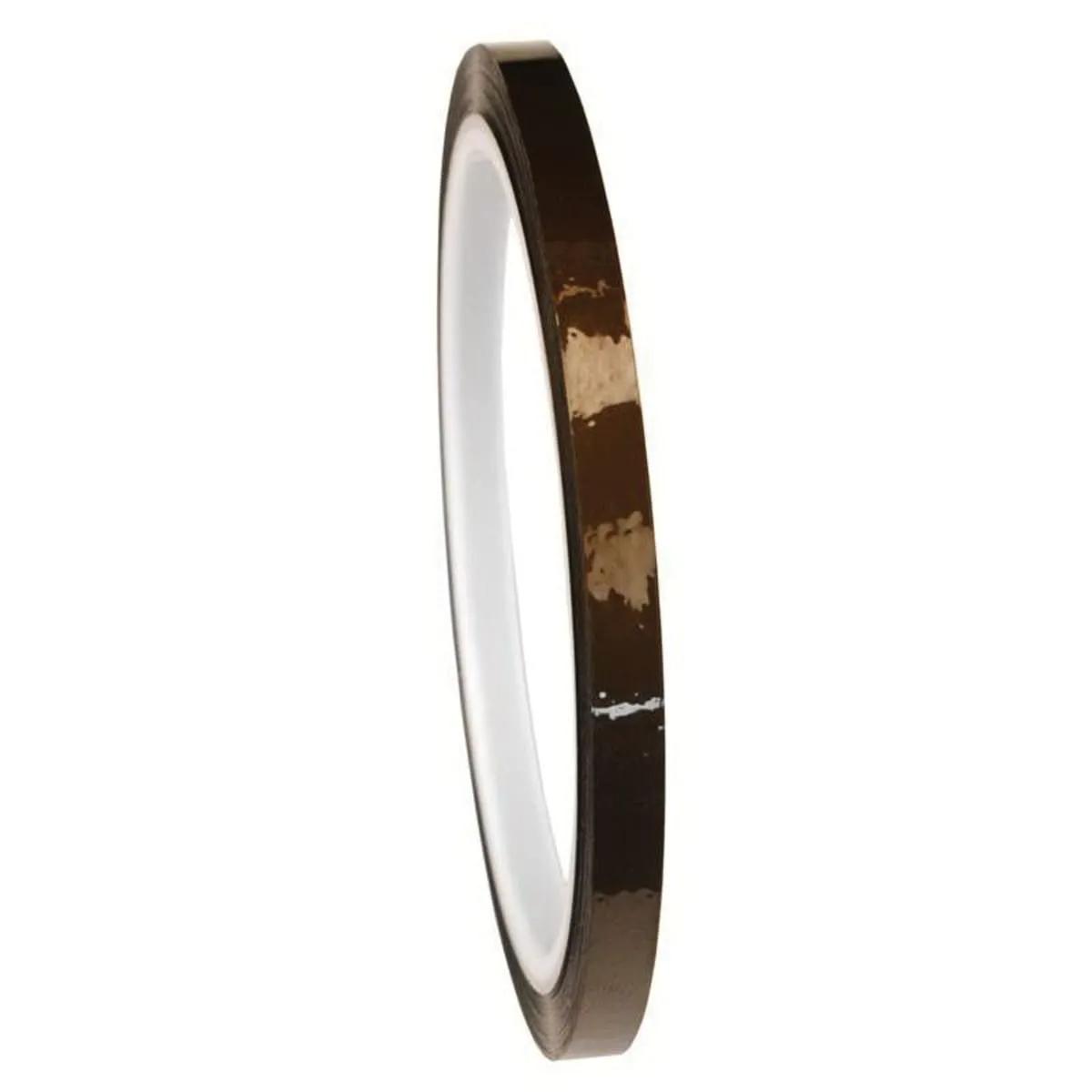

Desco Wescorp ESD High Temperature Polyimide Masking Tape

The image shown is representative of the product family and may not specifically be the individual item.
The image shown is representative of the product family and may not specifically be the individual item.
The image shown is representative of the product family and may not specifically be the individual item.
The image shown is representative of the product family and may not specifically be the individual item.

MFR #:8127

EIS #:PH22-8127

MFR #:8127

EIS #:PH22-8127

0
0
The Desco anti-static ESD-Safe high temperature polyimide tape for wave soldering and IR reflow ovens. Temperature resistance to a maximum of 300 °C for 10 sec. Tape is wound on a plastic core. ESD protective symbol is marked on the product (located on the core of the roll) per ANSI/ESD S541. Surface resistance of 1 x 10^8 to < 1 x 10^11 ohms. - May be exposed to high temperatures for wave soldering and other applications without leaving residue when removed. Low charging polyimide film with polysiloxide adhesive. Lead-free. Removal leaves little or no residue. Static charge generation during unwind and peel off stainless steel plate application is 5V at 50% RH.
$22.18
 - $72.69
Select from the options below
0
0
The Desco anti-static ESD-Safe high temperature polyimide tape for wave soldering and IR reflow ovens. Temperature resistance to a maximum of 300 °C for 10 sec. Tape is wound on a plastic core. ESD protective symbol is marked on the product (located on the core of the roll) per ANSI/ESD S541. Surface resistance of 1 x 10^8 to < 1 x 10^11 ohms. - May be exposed to high temperatures for wave soldering and other applications without leaving residue when removed. Low charging polyimide film with polysiloxide adhesive. Lead-free. Removal leaves little or no residue. Static charge generation during unwind and peel off stainless steel plate application is 5V at 50% RH.

Product Options

Showing 4 out of 4 options
The image shown is representative of the product family and may not specifically be the individual item.
Width
1 Inch
EIS Part #
81273-DES
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Width
0.75 Inch
EIS Part #
81272-DES
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Width
0.5 Inch
EIS Part #
81271-DES
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Width
0.25 Inch
EIS Part #
81270-DES
$ / Roll

Attributes

General Information
Item NameMasking Tape
Trade NameWescorp
Series8127
General Features
Shelf Life12 Months
Storage Temperature68 °F
TypeAntistatic, ESD, High Temperature
Design & Construction
Adhesive TypePolysiloxide
Backing MaterialPolyimide
ColorGold
ShapeRoll
Physical Properties
Core Size3 Inch
Length36 Yard
Thickness2.4 mil
Environmental Condition
Temperature Rating260 °C
