Rea Magnet Wire RW17RSTAICR060 Reabond S Therm-Aimid Single Build Round Magnet Wire, 17 AWG, Copper, Natural, 6" Spool (060)
- MFR #04801.170.02481
- EIS #RW17RSTAICR
- Series #RSTAIPC
$1,060.43 / 100 US pound

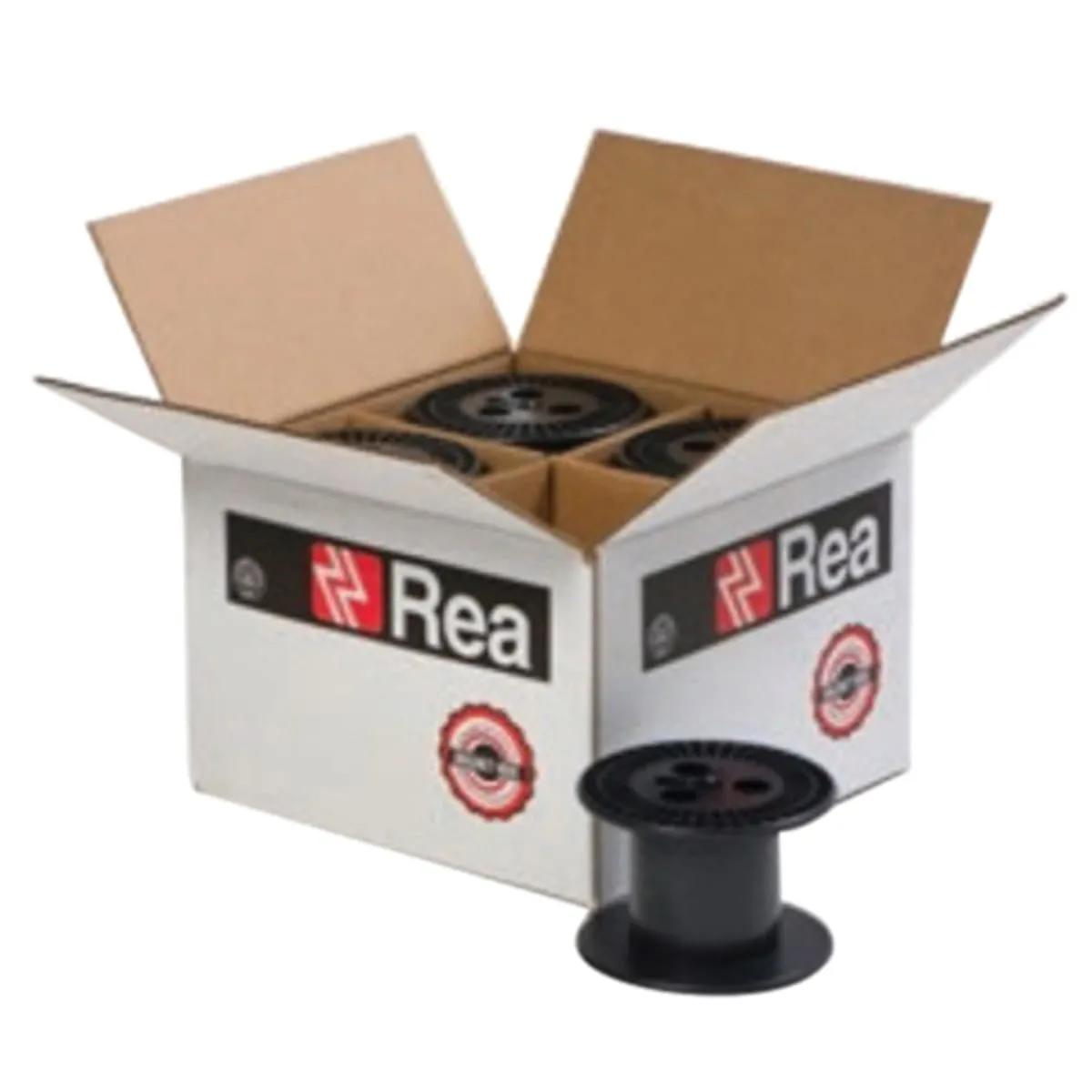

Pack: 6" Spool (060)
Available to Order
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack6" Spool (060)
| Stock Status | ||||
|---|---|---|---|---|
 | 10-11" Tapered Reel/Box (115) | 14 AWG | $ / US pound Pack: 10-11" Tapered Reel/Box (115) more info | |
| 10-11" Tapered Reel/Box (115) | 15 AWG | $ / US pound Pack: 10-11" Tapered Reel/Box (115) more info | |
 | 15-16" Tapered Reel (280) | 16 AWG | $ / US pound Pack: 15-16" Tapered Reel (280) more info | |
 | 6" Spool (060) | 17 AWG | $ / US pound Pack: 6" Spool (060) more info | |
| 10-11" Tapered Reel/Box (115) | 18 AWG | $ / US pound Pack: 10-11" Tapered Reel/Box (115) more info | |
| 10-11" Tapered Reel/Box (115) | 19 AWG | $ / US pound Pack: 10-11" Tapered Reel/Box (115) more info |
Cement forms a strong turn-to-turn bond throughout a winding and often eliminates the need for impregnating varnish. High resoftening temperature of outer cement allows this product to compete with many varnish- impregnated heavy-grade magnet wires. Minimum of 3 lb retained bond strength of 18 RSTAI on copper. Cost-optimized manufacturing processes typically employ resistance bonding to bond coils wound with Reabond S magnet wire.
Solvent bonding is not recommended for this product. The Reabond cement may be removed by dioxolane for measuring sub-film dimensions. Resistance bonding applies a voltage that causes the winding to heat electrically to the proper bond temperature. Optimum bonding conditions are reached when the coil temperature is raised to between 220 and 240 deg C as measured by the change in coil resistance as a function of the change in temperature.
Solvent bonding is not recommended for this product. The Reabond cement may be removed by dioxolane for measuring sub-film dimensions. Resistance bonding applies a voltage that causes the winding to heat electrically to the proper bond temperature. Optimum bonding conditions are reached when the coil temperature is raised to between 220 and 240 deg C as measured by the change in coil resistance as a function of the change in temperature.
Applications
- For Fractional and Integral HP Motors, including Universal Motor Fields and Induction Motor Stators, High Temperature Coils and Solenoids
General Information
| Item Name | Magnet Wire |
| Trade Name | Reabond S Therm-Aimid |
| Series | RSTAIPC |
General Features
| Type | Single Build |
| Standards | UL Listed, IEC 60317-13 |
Design & Construction
| Color | Natural |
| Insulation Material | Theic Modified Polyester Overcoated with Polyamide-imide Overcoated with Thermoplastic Polyester Bondcoat |
| Shape | Round |
| Material | Copper |
| NEMA Rating | MW 102-C |
Physical Properties
| Reel Diameter | 3.5 Inch |
| Reel Height | 4.125 Inch |
| Reel Hub Diameter | 0.629 Inch |
| Reel Weight | 10 lb |
| Reel Width | 3.5 Inch |
Environmental Condition
| Temperature Rating | 180 |
