Rea Magnet Wire RW10HTAJRPC245 Heavy Build Round Magnet Wire, 10 AWG, Copper, Natural, 24" Reel (245), MFR ID 02202.100.57324
- MFR #02202.100.57324
- EIS #RW10HTAJR
- Series #RHTAI
$914.96 / 100 US pound

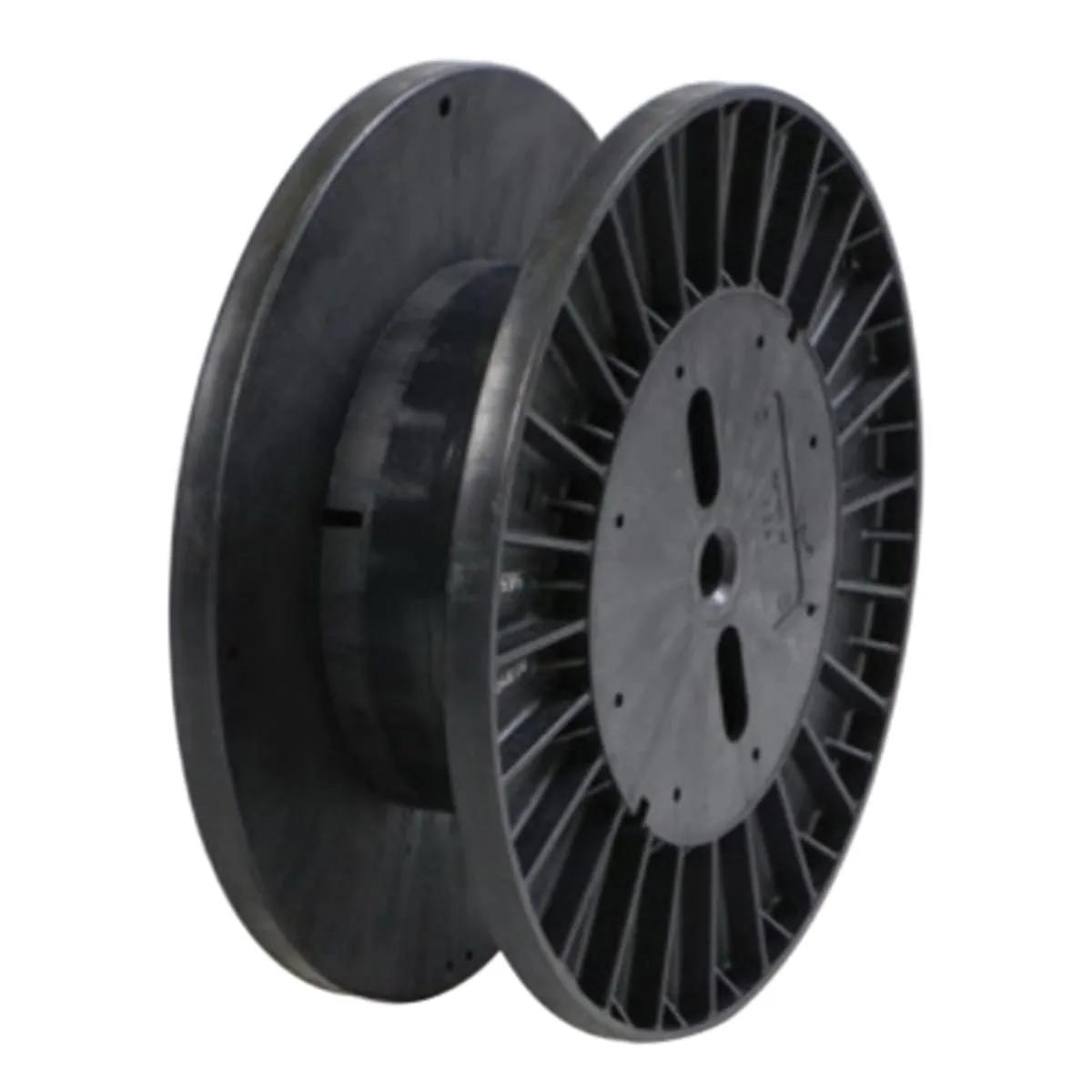

Pack: 24" Reel (245)
In Stock | Ready to Ship
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack24" Reel (245)
| Stock Status | ||||
|---|---|---|---|---|
 | 24" Reel (245) | 9 AWG | $ / US pound Pack: 24" Reel (245) more info | |
 | 11.75" Reel (121) | 10 AWG | $ / US pound Pack: 11.75" Reel (121) more info | |
| 24" Reel (245) | 10 AWG | $ / US pound Pack: 24" Reel (245) more info |
Therm-Aimid, designed for continuous operation at 200 deg C, provides superior abrasion resistance, solvent resistance and overload protection. Tough abrasion-resistant surface which withstands automated winding operations.
Rea Therm-Aimid is a dual film insulation system composed of THEIC modified polyester with a polyamideimide (AI) overcoat.
Rea Therm-Aimid is a dual film insulation system composed of THEIC modified polyester with a polyamideimide (AI) overcoat.
Applications
- For Dry Type Transformers, Power Generation, Industrial Motors and Hybrid Electric Motors
Features
- Excellent dielectric properties
- Superior chemical and moisture resistance, especially with refrigerants in hermetic applications
- Superior thermal overload protection, especially during locked-rotor conditions
- High thermal endurance, high temperature dielectric, resists thermoplastic flow, excellent adhesion and flexibility basecoat
- Heat shock resistant, moisture resistant, surface toughness and chemical resistant topcoat
General Information
| Item Name | Magnet Wire |
| Trade Name | Therm-Aimid® |
| Series | RHTAI |
General Features
| Type | Heavy Build |
| Standards | UL Listed, IEC 60317-13 |
Design & Construction
| Color | Natural |
| Insulation Material | Theic Modified Polyester Overcoated with Polyamide-imide |
| Shape | Round |
| Material | Copper |
| NEMA Rating | MW 35-C, MW 73-C |
Physical Properties
| Reel Diameter | 14 Inch |
| Reel Height | 24 Inch |
| Reel Hub Diameter | 1.536 Inch |
| Reel Weight | 271 lb |
| Reel Width | 6 Inch |
Environmental Condition
| Temperature Rating | 200 |
