Rea Magnet Wire Daglas® Dacron® Therm-Aimid® Heavy/Single Build Magnet Wire

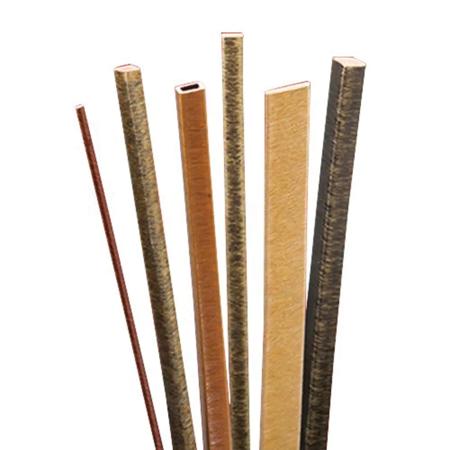

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:HSTAI SDGPC245

EIS #:PH15-HSTAI SDGPC245

Series #:HSTAI SDGPC245

MFR #:HSTAI SDGPC245

EIS #:PH15-HSTAI SDGPC245

Series #:HSTAI SDGPC245

0
0
Heavy/single build Dacron glass is a served filament that is applied over the magnet wire conductor. Dacron glass is a combination of glass and polyester fibers. The fibers may be served over bare conductor or Therm-Aimid insulated conductors. Daglas-film constructions provide improved electrical properties. - Heavy/single build Therm-Aimid is a dual film insulation system composed of THEIC modified polyester with a polyamideimide (AI) overcoat. Therm-Aimid, designed for continuous operation at 200 °C, provides superior abrasion resistance, solvent resistance and overload protection.
$567.00
 - $1,609.00
Select from the options below
0
0
Heavy/single build Dacron glass is a served filament that is applied over the magnet wire conductor. Dacron glass is a combination of glass and polyester fibers. The fibers may be served over bare conductor or Therm-Aimid insulated conductors. Daglas-film constructions provide improved electrical properties. - Heavy/single build Therm-Aimid is a dual film insulation system composed of THEIC modified polyester with a polyamideimide (AI) overcoat. Therm-Aimid, designed for continuous operation at 200 °C, provides superior abrasion resistance, solvent resistance and overload protection.

Product Options

Showing 8 out of 155 options
The image shown is representative of the product family and may not specifically be the individual item.
Shape
Rectangular
Wire Size
0.204 Inch x 0.5 Inch
EIS Part #
SW204X500ASDJR
$ / US pound
The image shown is representative of the product family and may not specifically be the individual item.
Shape
Rectangular
Wire Size
0.204 Inch x 0.41 Inch
EIS Part #
SW204X410ASDJR
$ / US pound
The image shown is representative of the product family and may not specifically be the individual item.
Shape
Rectangular
Wire Size
0.204 Inch x 0.365 Inch
EIS Part #
SW204X365ASDJR
$ / US pound
The image shown is representative of the product family and may not specifically be the individual item.
Shape
Rectangular
Wire Size
0.204 Inch x 0.325 Inch
EIS Part #
SW204X325ASDJR
$ / US pound
The image shown is representative of the product family and may not specifically be the individual item.
Shape
Rectangular
Wire Size
0.204 Inch x 0.289 Inch
EIS Part #
SW204X289ASDJR
$ / US pound
The image shown is representative of the product family and may not specifically be the individual item.
Shape
Rectangular
Wire Size
0.204 Inch x 0.258 Inch
EIS Part #
SW204X258ASDJR
$ / US pound
The image shown is representative of the product family and may not specifically be the individual item.
Shape
Rectangular
Wire Size
0.204 Inch x 0.229 Inch
EIS Part #
SW204X229ASDJR
$ / US pound
The image shown is representative of the product family and may not specifically be the individual item.
Shape
Rectangular
Wire Size
0.182 Inch x 0.5 Inch
EIS Part #
SW182X500ASDJR
$ / US pound

Attributes

General Information
Item NameMagnet Wire
Trade NameDacron® Therm-Aimid®
SeriesHSTAI SDGPC245
General Features
StandardsIEC 60317-60
TypeHeavy/Single Build
Design & Construction
ColorNatural
MaterialCopper
NEMA RatingMW 46-C
Physical Properties
Reel Diameter14 Inch
Reel Hub Diameter1.536 Inch
Reel Weight271 lb
Reel Width6 Inch
