Craig Wire Heavy/Single Build Rectangular Magnet Wire

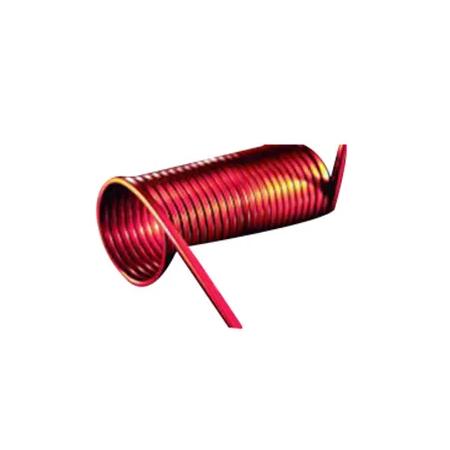

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:HDT3000_SB

EIS #:PH15-HDT3000_SB

Series #:HDT3000_SB

MFR #:HDT3000_SB

EIS #:PH15-HDT3000_SB

Series #:HDT3000_SB

0
0
Rectangular heavy/single build have different types of enamel with very good mechanical strength and bonding properties. Very consistent quality and dimension tolerances in line with industry standards. Wide range of dimensions, yarns and insulation builds available. Very thin grades for wind turbine generators. Improved mechanical strength, high-performance yarns and impregnation varnishes. - Rectangular heavy/single build has a very high resistance to corona discharges for inverter applications. Soft wire for easy winding. Excellent thermal and chemical properties. Suitable for windings that are subjected to constantly high temperatures and mechanical stress.
$613.88
 - $999.89
Select from the options below
0
0
Rectangular heavy/single build have different types of enamel with very good mechanical strength and bonding properties. Very consistent quality and dimension tolerances in line with industry standards. Wide range of dimensions, yarns and insulation builds available. Very thin grades for wind turbine generators. Improved mechanical strength, high-performance yarns and impregnation varnishes. - Rectangular heavy/single build has a very high resistance to corona discharges for inverter applications. Soft wire for easy winding. Excellent thermal and chemical properties. Suitable for windings that are subjected to constantly high temperatures and mechanical stress.

Product Options

Showing 6 out of 6 options
Wire Size
0.114 Inch x 0.258 Inch
EIS Part #
SW114X258HPPSPJC
$ / US pound
Wire Size
0.114 Inch x 0.182 Inch
EIS Part #
SW114X182HPPSPJC
$ / US pound
Wire Size
0.091 Inch x 0.204 Inch
EIS Part #
SW091X204HPPSPJC
$ / US pound
Wire Size
0.091 Inch x 0.162 Inch
EIS Part #
SW091X162HPPSPJC
$ / US pound
Wire Size
0.081 Inch x 0.182 Inch
EIS Part #
SW081X182HPPSPJC
$ / US pound
Wire Size
0.072 Inch x 0.204 Inch
EIS Part #
SW072X204HPPSPJC
$ / US pound

Attributes

General Information
Item NameMagnet Wire
SeriesHDT3000_SB
General Features
TypeHeavy/Single Build
Design & Construction
Insulation MaterialSingle Daglas/Polyamide with Polyamide-imide Overcoat
MaterialCopper
NEMA RatingMW 46-C
ShapeRectangular
