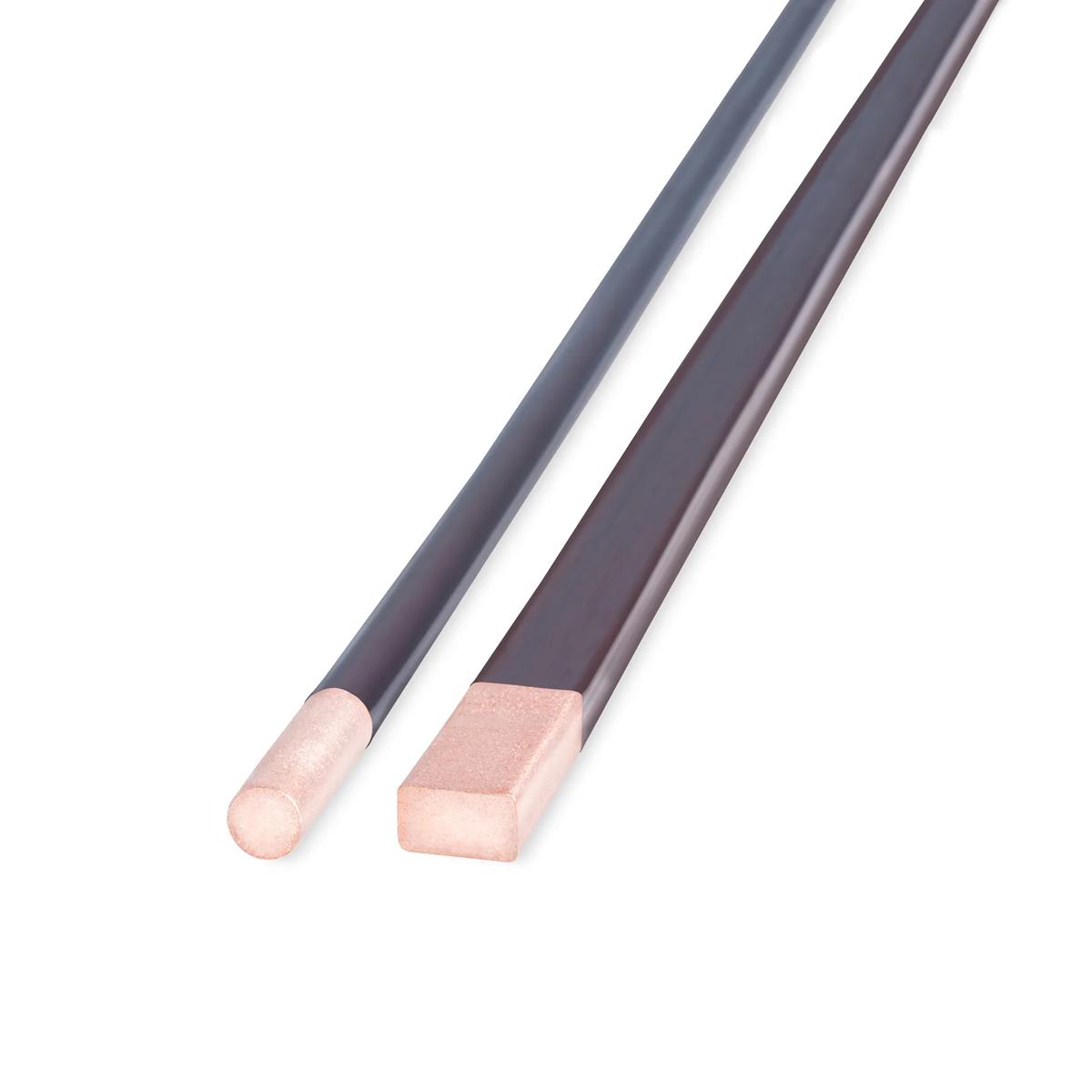

Essex Solutions GP/MR-200® RW21SGPIE Single Build Round Magnet Wire, 21 AWG, Copper, Natural, 8.5-9.25" Tapered Reel (PC08), MFR ID C152XX00210008A
- MFR #C152XX00210008A
- EIS #RW21SGPIE
- Series #GP200NATSXSB
$1,052.38 / 100 US pound
Pack: 8.5-9.25" Tapered Reel (PC08)
In Stock | Ready to Ship
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack8.5-9.25" Tapered Reel (PC08)
| Stock Status | ||||
|---|---|---|---|---|
 | 6" Spool (PC06) | 15 AWG | $ / US pound Pack: 6" Spool (PC06) more info | |
| 6" Spool (PC06) | 16 AWG | $ / US pound Pack: 6" Spool (PC06) more info | |
| 6" Spool (PC06) | 17 AWG | $ / US pound Pack: 6" Spool (PC06) more info | |
| 10.03-10.66" Tapered Flange Box (TF80) | 19 AWG | $ / US pound Pack: 10.03-10.66" Tapered Flange Box (TF80) more info | |
| 6" Spool (PC06) | 19 AWG | $ / US pound Pack: 6" Spool (PC06) more info | |
| 6" Spool (PC06) | 21 AWG | $ / US pound Pack: 6" Spool (PC06) more info |
Windability of GP/MR-200® round single build magnet wire, verified by years of experience on virtually every type of winder, has always been excellent. Improvements in the topcoat have resulted in a product that is even more superior with regard to high slot fill and insertability. GP/MR-200® round single build magnet wire is the standard of comparison for magnet wire performance in virtually every severe and heavy duty application. The combination of a modified polyester basecoat and an improved polyamideimide topcoat results in an insulation system with outstanding physical toughness, excellent dielectric properties, and superior chemical resistance to most common solvents and refrigerants.
Applications
- For Fractional and Integral HP Motors, Hermetic Motors, DC Motors, Power Tools, Automotive Alternators and Generators
Features
- GP/MR-200® copper magnet wire has excellent thermoplastic flow (cut-thru) properties, with typical test values near 390 °C
- GP/MR-200® magnet wire is excellent in the areas of lubricity and scrape resistance, providing superior windability
- GP/MR-200® magnet wire insulation exhibits high dielectric strength retention in high moisture conditions
- Insulation piercing, hot staking and flame welding processes can all be used with copper GP/MR-200® magnet wire
- GP/MR-200® magnet wire is classified as 200 °C on copper conductor and 220 °C on aluminum
General Information
| Item Name | Magnet Wire |
| Trade Name | GP/MR-200® |
| Series | GP200NATSXSB |
General Features
| Type | Single Build |
| Standards | UL Listed |
Design & Construction
| Color | Natural |
| Insulation Material | Polyester/Polyamide-imide |
| Shape | Round |
| Material | Copper |
| NEMA Rating | MW 35-C, MW 73-C |
Physical Properties
| Reel Diameter | 5.5 Inch |
| Reel Weight | 45 lb |
| Reel Width | 9 Inch Inner x 10.06 Inch Outer |
Environmental Condition
| Temperature Rating | 200 °C |
