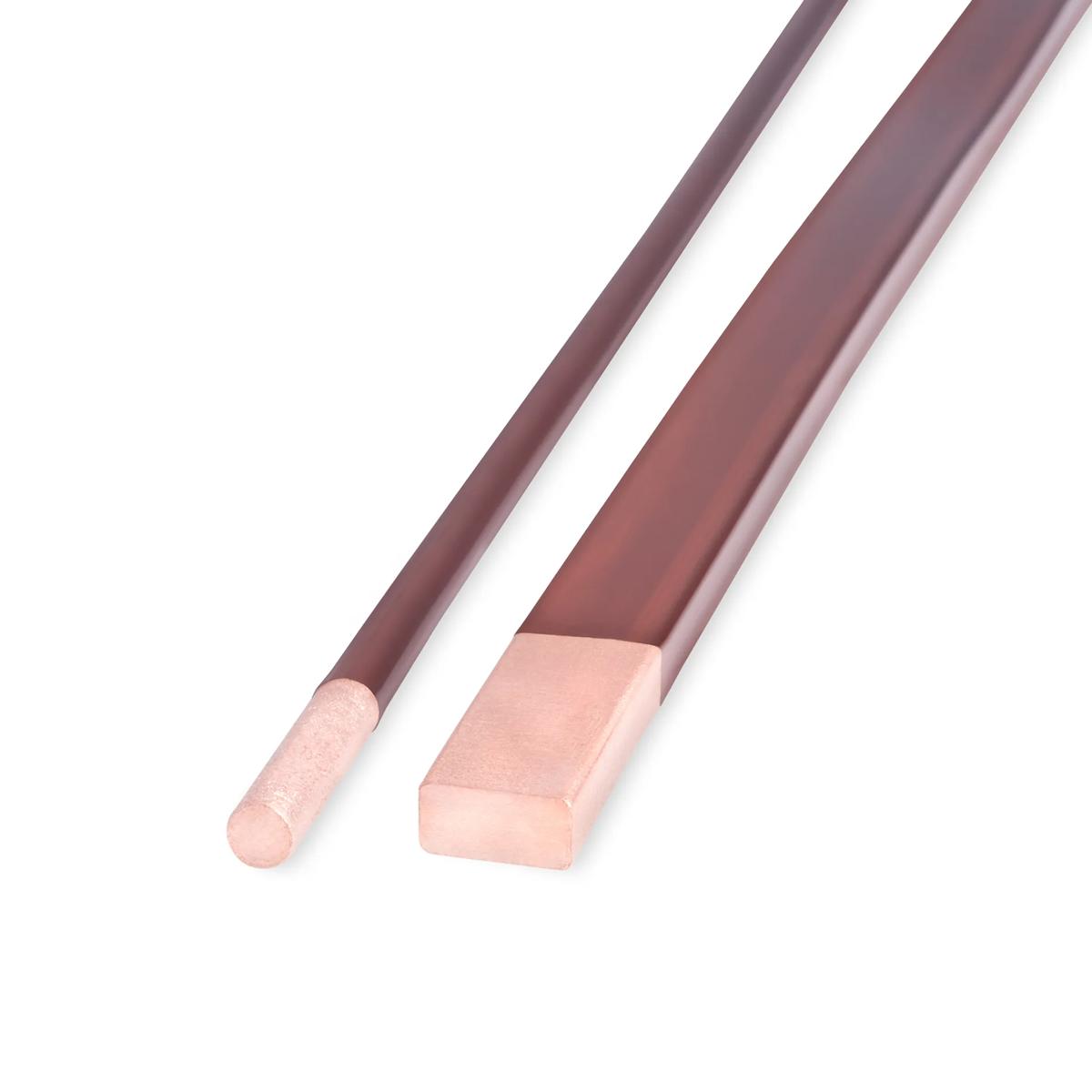

Essex Solutions Formvar RW13HFQE Heavy Build Round Magnet Wire, 13 AWG, Copper, Natural, 15-16" Tapered Reel (RP250), MFR ID C220XX00130025A
- MFR #C220XX00130025A
- EIS #RW13HFQE
- Series #FORMPC_RD
$1,006.68 / 100 US pound
Pack: 15-16" Tapered Reel (RP250)
Available to Order
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack15-16" Tapered Reel (RP250)
Products You May Also Like
| Stock Status | ||||
|---|---|---|---|---|
 | 11.75" Reel (PC12) | 8 AWG | $ / US pound Pack: 11.75" Reel (PC12) more info | |
| 15-16" Tapered Reel (RP250) | 8 AWG | $ / US pound Pack: 15-16" Tapered Reel (RP250) more info | |
| 24" Reel (PC24) | 8 AWG | $ / US pound Pack: 24" Reel (PC24) more info | |
| 11.75" Reel (PC12) | 9 AWG | $ / US pound Pack: 11.75" Reel (PC12) more info | |
| 24" Reel (PC24) | 9 AWG | $ / US pound Pack: 24" Reel (PC24) more info | |
| 15-16" Tapered Reel (RP250) | 9 AWG | $ / US pound Pack: 15-16" Tapered Reel (RP250) more info |
While Essex Solutions Formvar has been replaced by GP/MR-200® in many applications, Formvar continues to be the recommended film insulation most commonly used in oil-filled transformers. Formvar is a synthetic film insulation containing polyvinyl acetal and phenolic resins. It has been in general use in the electrical industry as a Class 105°C wire for over fifty years.
Applications
- For Oil-Filled Transformers, Random Wound Coils, Solenoids
Features
- Formvar is a synthetic film insulation containing polyvinyl acetal and phenolic resins. It has been in general use in the electrical industry as a class 105 °C wire for over fifty years
- Formvar magnet wire insulation exhibits high dielectric strength
- Flexibility and adhesion properties of Formvar magnet wire film, because of its unique construction, excel in wire winding and roll flattening applications
- Formvar is unsurpassed in its resistance to mineral oils. It is the best magnet wire coating available for these applications
- Formvar magnet wire is a non-solderable product and must be mechanically stripped before soldering or terminated by means of insulation piercing terminals
- Formvar easily passes 175 °C heat shock
General Information
| Item Name | Magnet Wire |
| Trade Name | Formvar |
| Series | FORMPC_RD |
General Features
| Type | Heavy Build |
| Standards | ASTM D2307 |
Design & Construction
| Color | Natural |
| Insulation Material | Polyvinyl Acetal Coated |
| Shape | Round |
| Material | Copper |
| NEMA Rating | MW 18-C |
Physical Properties
| Reel Diameter | 8 Inch |
| Reel Weight | 250 lb |
| Reel Width | 12 Inch Inner x 14.37 Inch Outer |
Environmental Condition
| Temperature Rating | 105 °C |
