Craig Wire 200PLUS Heavy Build Rectangular Magnet Wire, MFR ID CW 200PLUS
- MFR #CW 200PLUS
- EIS #PH15-CW 200PLUS
- Series #CW 200PLUS
$333.10 - $2,030.35
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--| Stock Status | |||
|---|---|---|---|
 | 0.064 Inch x 0.162 Inch | Requires Quote / US pound more info | |
| 0.064 Inch x 0.182 Inch | Requires Quote / US pound more info | |
| 0.064 Inch x 0.204 Inch | Requires Quote / US pound more info | |
| 0.064 Inch x 0.289 Inch | Requires Quote / US pound more info | |
| 0.064 Inch x 0.258 Inch | Requires Quote / US pound more info | |
| 0.072 Inch x 0.144 Inch | Requires Quote / US pound more info |

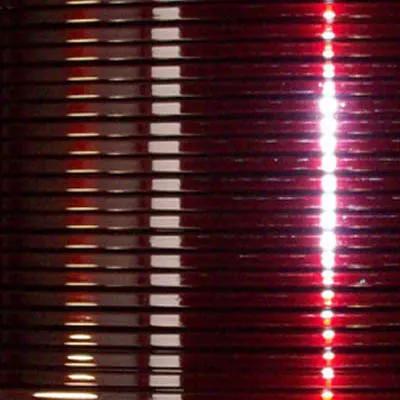

CW 200PLUS magnet wire is a dual film insulation system consisting of a modified polyester basecoat and a polyamideimide (AI) topcoat for continuous operation at 200 °C. It has an excellent dielectric properties - It is a higher dielectric product than standard heavy NEMA 36-C film, with a 0.004 to 0.006 Inch build.
Features
- Resilient abrasion resistant surface
- Superior chemical and moisture resistance
- Resistant to most common solvents and refrigerants
- Superb windability
Applications
- For AC Motors, Generators, DC Motors, Hermetic Motors, Dry Type Transformers
General Information
| Item Name | Magnet Wire |
| Series | CW 200PLUS |
General Features
| Type | Heavy Build |
Design & Construction
| Insulation Material | Polyester/Polyamide-imide |
| Shape | Rectangular |
| Material | Copper |
| NEMA Rating | MW 36-C |
