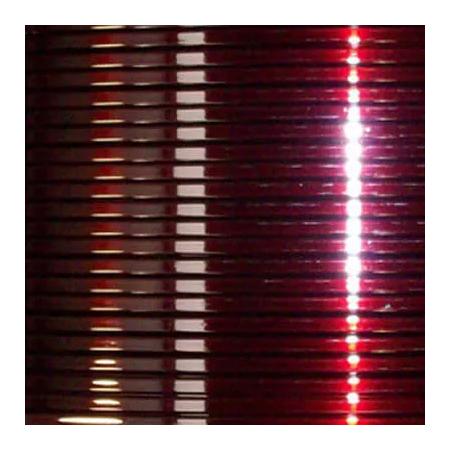

Craig Wire 200PLUS Heavy Build Rectangular Magnet Wire

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:CW 200PLUS

EIS #:PH15-CW 200PLUS

Series #:CW 200PLUS

MFR #:CW 200PLUS

EIS #:PH15-CW 200PLUS

Series #:CW 200PLUS

0
0
CW 200PLUS magnet wire is a dual film insulation system consisting of a modified polyester basecoat and a polyamideimide (AI) topcoat for continuous operation at 200 °C. It has an excellent dielectric properties - It is a higher dielectric product than standard heavy NEMA 36-C film, with a 0.004 to 0.006 Inch build.
$333.10
 - $2,030.35
Select from the options below
0
0
CW 200PLUS magnet wire is a dual film insulation system consisting of a modified polyester basecoat and a polyamideimide (AI) topcoat for continuous operation at 200 °C. It has an excellent dielectric properties - It is a higher dielectric product than standard heavy NEMA 36-C film, with a 0.004 to 0.006 Inch build.

Product Options

Showing 8 out of 49 options
The image shown is representative of the product family and may not specifically be the individual item.
Wire Size:
0.144 Inch x 0.289 Inch
EIS Part #:
SW144X289HPPJC
Requires Quote / US pound
The image shown is representative of the product family and may not specifically be the individual item.
Wire Size:
0.144 Inch x 0.258 Inch
EIS Part #:
SW144X258HPPJC
Requires Quote / US pound
The image shown is representative of the product family and may not specifically be the individual item.
Wire Size:
0.144 Inch x 0.229 Inch
EIS Part #:
SW144X229HPPJC
Requires Quote / US pound
The image shown is representative of the product family and may not specifically be the individual item.
Wire Size:
0.144 Inch x 0.204 Inch
EIS Part #:
SW144X204HPPJC
Requires Quote / US pound
The image shown is representative of the product family and may not specifically be the individual item.
Wire Size:
0.144 Inch x 0.182 Inch
EIS Part #:
SW144X182HPPJC
Requires Quote / US pound
The image shown is representative of the product family and may not specifically be the individual item.
Wire Size:
0.144 Inch x 0.162 Inch
EIS Part #:
SW144X162HPPJC
Requires Quote / US pound
The image shown is representative of the product family and may not specifically be the individual item.
Wire Size:
0.128 Inch x 0.289 Inch
EIS Part #:
SW128X289HPPJC
Requires Quote / US pound
The image shown is representative of the product family and may not specifically be the individual item.
Wire Size:
0.128 Inch x 0.229 Inch
EIS Part #:
SW128X229HPPJC
Requires Quote / US pound

Attributes

General Information
Item NameMagnet Wire
SeriesCW 200PLUS
General Features
TypeHeavy Build
Design & Construction
Insulation MaterialPolyester/Polyamide-imide
ShapeRectangular
MaterialCopper
NEMA RatingMW 36-C
