Craig Wire 200 Heavy Build Rectangular Magnet Wire, MFR ID CW 200

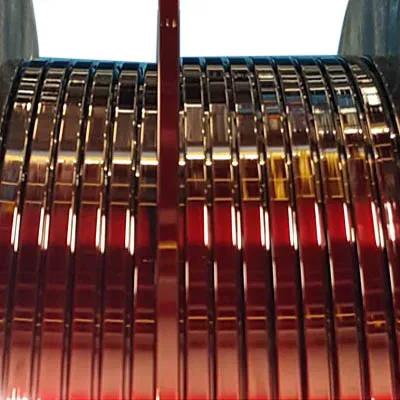

The image shown is representative of the product family and may not specifically be the individual item.
  • MFR #:CW 200
  • EIS #:PH15-CW 200
  • Series #:CW 200
  • MFR #:CW 200
  • EIS #:PH15-CW 200
  • Series #:CW 200
0
0
CW 200 magnet wire is a dual film insulation system consisting of a modified polyester basecoat and a polyamideimide (Al) topcoat for continuous operation at 200 °C. This combination results in an insulation system that provides excellent abrasion resistance, in addition to outstanding chemical and solvent resistance for most common solvents and refrigerants. - CW 200 magnet wire is available in heavy and quad builds on copper conductor. This dual film insulation system consisting of a modified polyester basecoat and a polyamide-imide (Al) topcoat for continuous operation at 200 °C.
$333.10
 - $1,123.50
Select from the options below
0
0
CW 200 magnet wire is a dual film insulation system consisting of a modified polyester basecoat and a polyamideimide (Al) topcoat for continuous operation at 200 °C. This combination results in an insulation system that provides excellent abrasion resistance, in addition to outstanding chemical and solvent resistance for most common solvents and refrigerants. - CW 200 magnet wire is available in heavy and quad builds on copper conductor. This dual film insulation system consisting of a modified polyester basecoat and a polyamide-imide (Al) topcoat for continuous operation at 200 °C.

Product Options

Showing 8 out of 28 options
The image shown is representative of the product family and may not specifically be the individual item.
Wire Size:
0.182 Inch x 0.258 Inch
EIS Part #:
SW182X258HPJC
Requires Quote / US pound
The image shown is representative of the product family and may not specifically be the individual item.
Wire Size:
0.144 Inch x 0.325 Inch
EIS Part #:
SW144X325HPJC
Requires Quote / US pound
The image shown is representative of the product family and may not specifically be the individual item.
Wire Size:
0.114 Inch x 0.325 Inch
EIS Part #:
SW114X325HPJC
Requires Quote / US pound
The image shown is representative of the product family and may not specifically be the individual item.
Wire Size:
0.091 Inch x 0.325 Inch
EIS Part #:
SW091X325HPJC
Requires Quote / US pound
The image shown is representative of the product family and may not specifically be the individual item.
Wire Size:
0.081 Inch x 0.325 Inch
EIS Part #:
SW081X325HPJC
Requires Quote / US pound
The image shown is representative of the product family and may not specifically be the individual item.
Wire Size:
0.057 Inch x 0.289 Inch
EIS Part #:
SW057X289HPJC
Requires Quote / US pound
The image shown is representative of the product family and may not specifically be the individual item.
Wire Size:
0.057 Inch x 0.258 Inch
EIS Part #:
SW057X258HPJC
Requires Quote / US pound
The image shown is representative of the product family and may not specifically be the individual item.
Wire Size:
0.057 Inch x 0.229 Inch
EIS Part #:
SW057X229HPJC
$ / US pound
Pack: 24" Reel

Attributes

General Information

Item NameMagnet Wire

SeriesCW 200

General Features

TypeHeavy Build

Design & Construction

Insulation MaterialPolyester/Polyamide-imide
ShapeRectangular
MaterialCopper
NEMA RatingMW 36-C
