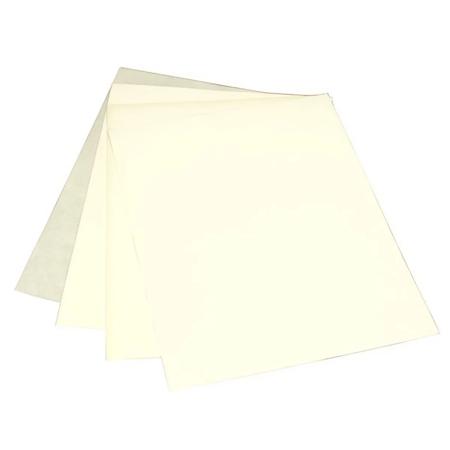

3M CeQuin™ I-Inorganic Insulating Paper Roll, MFR ID CeQuin™ I-RL
- MFR #:CeQuin™ I-RL
- EIS #:PH21-CeQuin I-RL
- Series #:CeQuin™ I-RL
- MFR #:CeQuin™ I-RL
- EIS #:PH21-CeQuin I-RL
- Series #:CeQuin™ I-RL
3M™ CeQUIN™ I-Inorganic Insulating Papers are 3M's highest inorganic-content papers - comprised primarily of glass fibers and microfibers, inorganic filters, and less than 10% organic binders. CeQUIN I paper is a highly flexible paper available in continuous roll stock in thicknesses ranging from 5 Mil (0.13 mm) to 30 mil (0.76 mm). See Table 1 for Typical Product Properties of standard thicknesses of CeQUIN I, II paper. Other thicknesses are available on special order. - 3M™ CeQUIN™ I-inorganic insulating paper provides the excellent thermal and dielectric stability that is required for today's high-performance designs. CeQuin I electrical insulation papers are designed to outperform competitive organic materials that cost substantially more.
$5.74
- $28.70
Select from the options below
3M™ CeQUIN™ I-Inorganic Insulating Papers are 3M's highest inorganic-content papers - comprised primarily of glass fibers and microfibers, inorganic filters, and less than 10% organic binders. CeQUIN I paper is a highly flexible paper available in continuous roll stock in thicknesses ranging from 5 Mil (0.13 mm) to 30 mil (0.76 mm). See Table 1 for Typical Product Properties of standard thicknesses of CeQUIN I, II paper. Other thicknesses are available on special order. - 3M™ CeQUIN™ I-inorganic insulating paper provides the excellent thermal and dielectric stability that is required for today's high-performance designs. CeQuin I electrical insulation papers are designed to outperform competitive organic materials that cost substantially more.
Product Options
Showing 3 out of 3 options
 | Length: 650 Yard | Thickness: 5 mil | Width: 37 Inch | EIS Part #: CEQUINI5X650 | $ / Square YD | |
| Length: 100 Yard | Thickness: 30 mil | Width: 36 Inch | EIS Part #: CEQUINI0302M | $ / Square YD | |
| Length: 890 Yard | Thickness: 10 mil | Width: 37 Inch | EIS Part #: CEQUINI0102M | $ / Linear Yd |
- Attributes
- Features
- Applications
Attributes
General Information
Item NameInorganic Insulating Paper
Trade NameCeQuin™ I
SeriesCeQuin™ I-RL
Performance Details
Moisture Absorption<1%
Physical Properties
Elongation<2% (MD)
Features
- Thermally stable
- Low moisture absorption
- Long-term dielectric strength
- Superior varnish absorption
- High thermal conductivity
- Cost effective
- UL systems recognition through class 220(R)
Applications
- High-temperature Electrical Insulation For: Dry-Type Transformers, Coils, Reactors (Ground, Barrier, Layer, End-Turn and Interwinding Insulation), Traction Motors, Generators (Inter-Winding Insulation for Form-Wound Coils, Slot Insulation and Phase Insulation), Wire and Cable Wrap, Battery Separators, Capacitor and Electromagnet Layer Insulation, Switchgear Insulation, Spiral and Convolute Tubing
