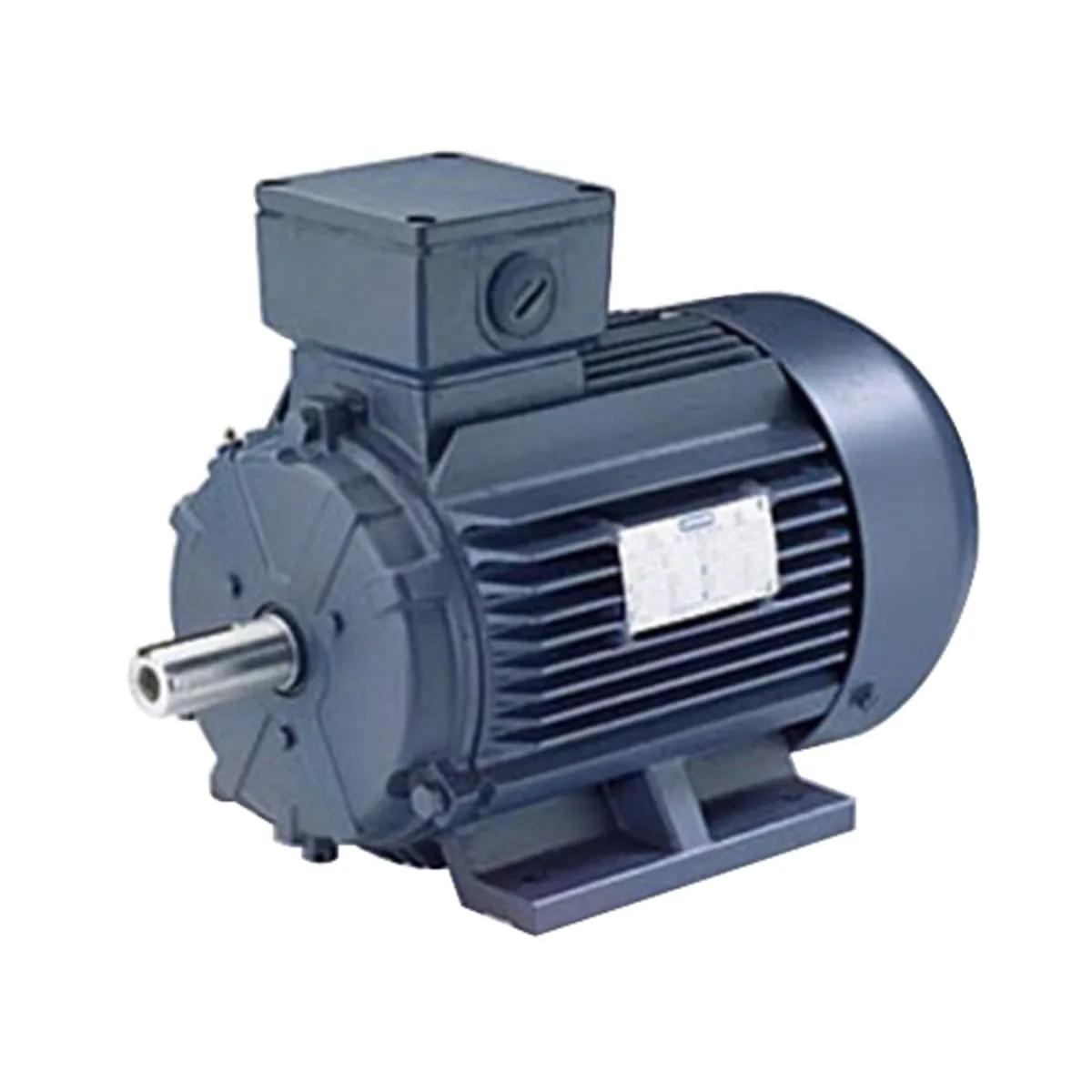

Leeson 193359.60 IEC AC Metric Motor, 3 HP, 1800 rpm, 230/460V, 200/400V, 100L Frame, TEFC, B3/B14 Flange Rigid Base Mount
- EIS #MOT193359
$1,557.80 / Piece
Available to Order
Min QTY1QTY Increment1more info
Leeson RE-19335 Series TF Premium Efficient IEC AC Metric Motor, Ball Bearing, 14.97 Inch L x 240 mm W x 290 mm H, Continuous Duty, Totally Enclosed Fan-Cooled Enclosure, 100L Frame, Cast Iron Frame, 50/60 Hz, 8A at 230V, 4A at 460V, 6.6/3.3A at 200/400V Full Load, Full Load Efficiency: 89.5% at 50 Hz, 90.2% at 60 Hz, Full Load Power Factor: 79.2% at 60 Hz, 72% at 50 Hz, 3 HP, Class F Insulation, KVA Code: J, B3/B14 Flange Rigid Base Mount, 4 Pole, 3-Phase, 2.24kW at 60 Hz, 1.49kW at 50 Hz, Reversible Rotation, Service Factor: 1.15, 28 mm Shaft Dia, 63.5 mm Shaft Length, Horizontal Shaft, 1800 rpm, 40 °C, 230/460V, 200/400V, 92 lb Weight - Leeson 193359.60 IEC AC Metric Motor, 3 HP, 1800 rpm, 230/460V, 200/400V, 100L Frame, TEFC, B3/B14 Flange Rigid Base Mount
Features
- Aluminum frame and cast iron frame construction
- DC and stainless steel IEC motors available
- 60/50 Hz interchangeability
- B3, B5, B14 mounting flanges
- Flange kits available
- Inverter rated (IRIS™) insulation system on AC models
- 3-year warranty on premium efficiency models
- 1-year warranty on DC and AC standard efficiency models
- Frequency Rating: 50/60 Hz
- Full Load Ampere: 8A at 230V, 4A at 460V, 6.6/3.3A at 200/400V
- Power Rating: 2.24kW at 60 Hz, 1.49kW at 50 Hz
- Voltage Rating: 230/460V, 200/400V
Applications
- Typically Used For Replacement On Machine Tools, Textile Tools, Textile Machinery And Other Equipment With Metric Dimensions But Requiring The High Torque And Performance Of Motors Designed For Use In North America
General Information
| Item Name | IEC AC Metric Motor |
| Trade Name | Leeson |
General Features
| Type | TF, Premium Efficient |
| Standards | UL Listed, CSA Certified, CE Certified |
Design & Construction
| Bearing Type | Ball |
| Duty | Continuous |
| Enclosure Type | Totally Enclosed Fan-Cooled |
| Frame Type | 100L |
| Insulation Type | Class F |
| KVA Code | J |
| Mounting Type | B3/B14 Flange Rigid Base |
| Rotation | Reversible |
| Shaft Position | Horizontal |
Performance Details
| Speed Rating | 1800 rpm |
| Full Load Efficiency | 89.5% at 50 Hz, 90.2% at 60 Hz |
Electrical Properties
| Frequency Rating | 60 Hz |
| Full Load Ampere | 8 A |
| Full Load Power Factor | 79.2% at 60 Hz, 72% at 50 Hz |
| HP Rating | 3 HP |
| Phase | 3-Phase |
| Service Factor | 1.15 |
| Voltage Rating | 460 V |
Physical Properties
| Dimensions | 14.97 Inch L x 240 mm W x 290 mm H |
| Frame Size | 100 |
| Number of Poles | 4 |
| Shaft Diameter | 28 mm |
| Shaft Length | 63.5 mm |
| Weight | 92 lb |
Environmental Condition
| Temperature Rating | 40 °C |
