HellermannTyton IT18FL9L4 Standard Locking Natural Polyamide Identification Tie, 4.3" L, 18 lb, 200/Pack
- EIS #TIEIT18FL
- Series #IT18FL
- UPC #00089306018995
$473.04 / 1000Piece
Pack: 200/Pack
Available to Order
Min QTY1QTY Increment1more infoPack200/Pack

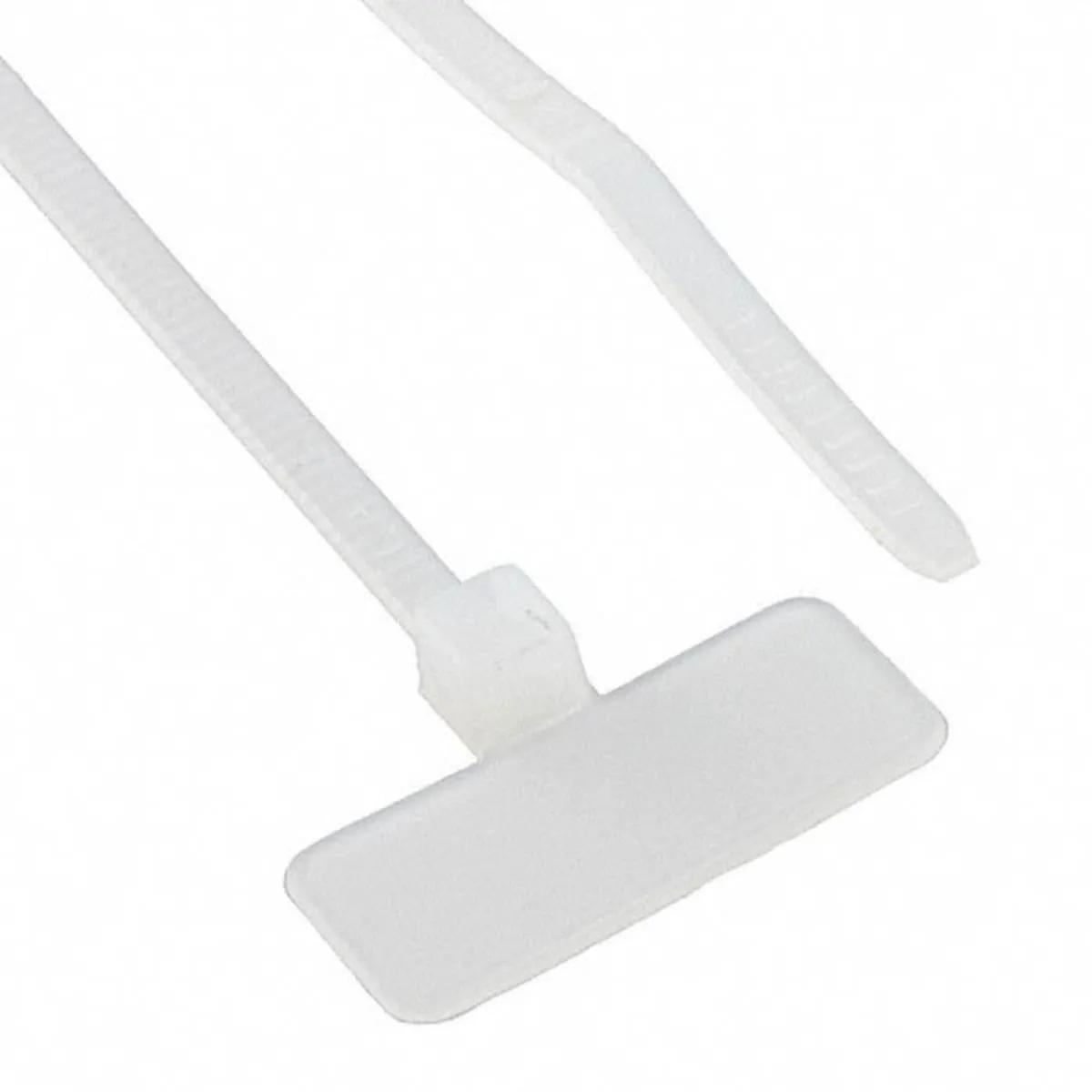

HellermannTyton natural 18 lb Identification cable ties feature an identification plate allowing wire and cable bundles to be easily marked and identified. These ties enable wire and cables to be secured and identified using just one product, saving installation time. - This 18 lb plates can be marked using a permanent marker or with a HellermannTyton adhesive label. Tie and identify bundles of cable in one operation. HellermannTyton's identification ties have large flat areas for imprinting or labeling information.
Features
- Identification plate feature allows bundles to be easily marked and identified
- Wire and cable harnesses can be secured and identified using just one product, which saves time
- Plates can be marked manually with a permanent marker or with a pre-printed adhesive label
- Halogen free
- 0.81 Inch x 0.35 Inch marker write-on area
General Information
| Item Name | Identification Tie |
| Series | IT18FL |
General Features
| Type | Standard Locking |
| Standards | UL94 V-2 Listed, GL Certified, RoHS Compliant |
Design & Construction
| Color | Natural |
| Locking Mechanism | Self Locking |
| Material | Polyamide 6.6 |
| Mounting | Free Hanging (In-Line) |
Performance Details
| Operating Temperature | -40 to 185 °F |
| Tensile Strength | 18 lb |
Physical Properties
| Bundle Diameter | 0.06 - 0.75 Inch |
| Head Height | 0.14 Inch |
| Head Width | 0.8 Inch |
| Length | 4.3 Inch |
| Thickness | 0.04 Inch |
| Width | 0.1 Inch |
Supporting Information
| For Use With | EVO7, MK7HT, MK7P, MK9, MK9HT, MK9P Tools |
