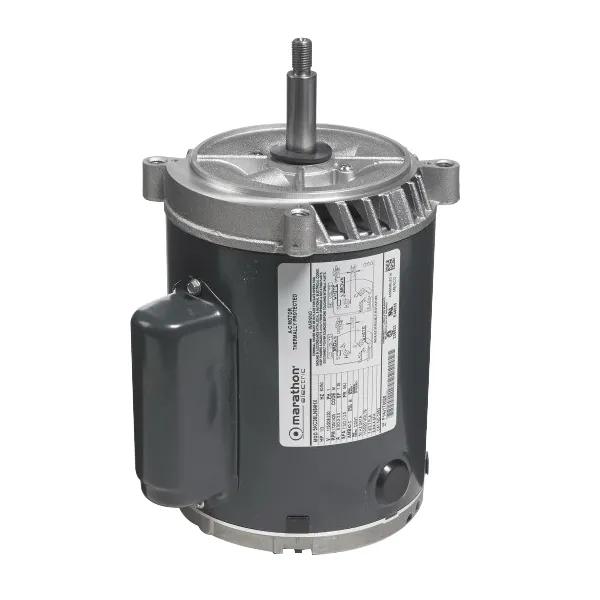

Marathon J009 HVAC Motor, 1/2 HP, 3600 rpm, 56C Frame
- MFR #MADPHVACM
- EIS #MOTJ021
$642.63 / Piece
Available to Order
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
| Stock Status | ||||
|---|---|---|---|---|
 | 0.5 HP | 3600 rpm | $ / Piece | |
 | 2 HP | 3600 rpm | $ / Piece |
Marathon Ball Bearing HVAC Motor. - Marathon HVAC Motor, Bearing Type: Ball, Duty: Continuous, Enclosure Type: Dripproof, Frame Size: 56, Frequency Rating: 60 Hz, Insulation Type: Class B, Phase: 1-Phase, Temperature Rating: 40 °C, Thermal Protection: Yes, Voltage Rating: 115V.
Features
- Horizontal or Vertical Orientation
- Shaft diameter: 0.6245 - 0.6250 Inch
- Shaft length: 4.497 - 4.5 Inch
- Full load ampere: 7.4A at 115V, 3.5-3.7A at 208-230V
- Voltage rating: 115V/208-230V
General Information
| Item Name | HVAC Motor |
| Series | MADPHVACM |
Design & Construction
| KVA Code | L |
| Mounting Type | C-Face Footless |
| Rotation | Fixed Clockwise |
| Start Method | Capacitor Start/Induction Run |
| Bearing Type | Ball |
| Duty | Continuous |
| Enclosure Type | Dripproof |
| Insulation Type | Class B |
Performance Details
| Speed Rating | 3600 rpm |
Electrical Properties
| Full Load Ampere | 7.4 A |
| HP Rating | 0.5 HP |
| Service Factor | 1.6 |
| Frequency Rating | 60 Hz |
| Phase | 1-Phase |
| Voltage Rating | 115 V |
Physical Properties
| Dimensions | 10.69 Inch L x 5.69 Inch W |
| Weight | 17 lb |
| Frame Size | 56 |
| Shaft Diameter | 0.6245 Inch |
| Shaft Length | 4.497 Inch |
Environmental Condition
| Temperature Rating | 40 °C |
| Thermal Protection | Yes |
