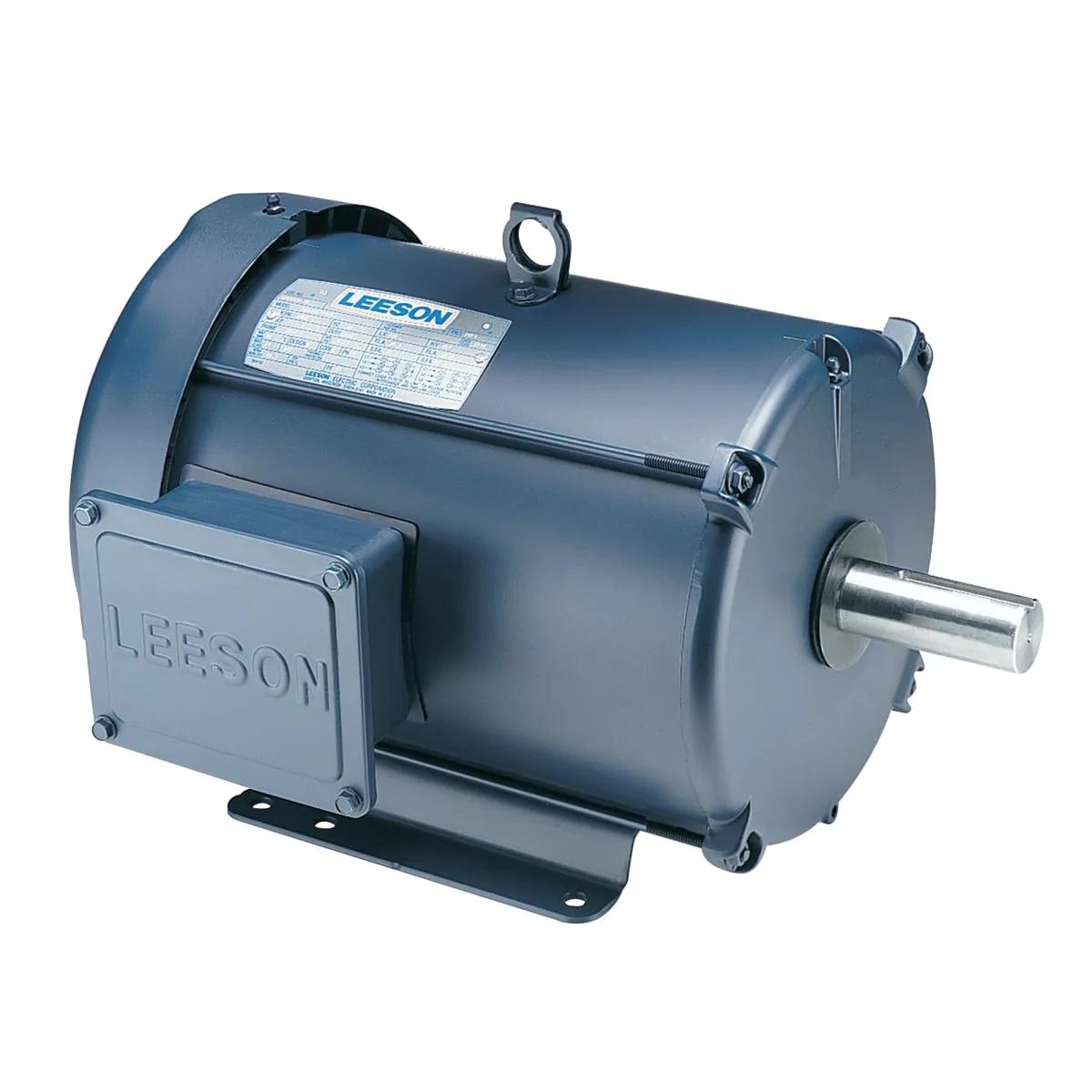

Leeson TF HVAC Fan Motor, MFR ID LETFHVACFM
- MFR #LETFHVACFM
- EIS #PH23-LETFHVACFM
$1,491.36 - $1,826.18
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--| Stock Status | |||||
|---|---|---|---|---|---|
 | 2.5 HP | 1800 rpm | 215 | $ / each Pack: Box |
Two-speed, single winding designs. Ball bearing designs. - Leeson TF HVAC - Fan Motor, Bearing Type: Ball, Duty: Continuous, Enclosure Type: Totally Enclosed Fan-Cooled, Frame Type: Rolled Steel, Frequency Rating: 60 Hz, Mounting Type: Rigid Base, Overload Protector: No, Phase: 3-Phase, Rotation: Reversible, Service Factor: 1, Shaft Position: Horizontal, Temperature Rating: 40 °C.
Applications
- For use on Fans, Blowers and Centrifugal Pumps
General Information
| Item Name | HVAC Fan Motor |
| Series | LETFHVACFM |
General Features
| Type | TF |
| Standards | UL Listed, CSA Approved |
Design & Construction
| Bearing Type | Ball |
| Duty | Continuous |
| Enclosure Type | Totally Enclosed Fan-Cooled |
| Frame Type | Rolled Steel |
| Mounting Type | Rigid Base |
| Rotation | Reversible |
| Shaft Position | Horizontal |
Performance Details
| Overload Protector | No |
Electrical Properties
| Frequency Rating | 60 Hz |
| Phase | 3-Phase |
| Service Factor | 1 |
Environmental Condition
| Temperature Rating | 40 °C |
