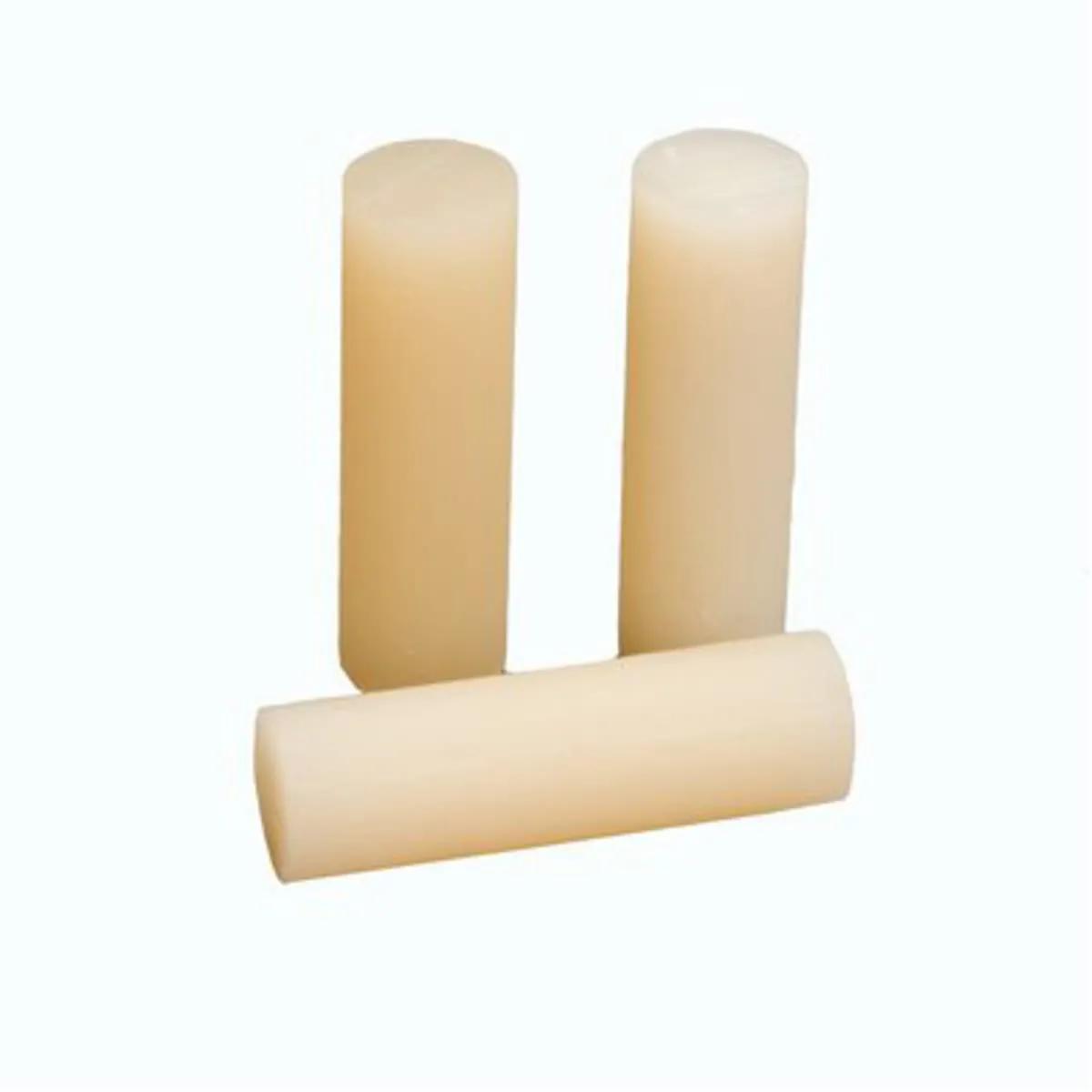

3M 3797 Hot Melt Adhesive, PG, Off-White, 22 lb/Case, MFR ID 7000121350
- EIS #3MA3797PG
- Series #3797
- UPC #00021200825927
Requires Quote / US pound
Available to Order
Min QTY1QTY Increment1
more info
Pack22 lb/Case
Why Buy From EIS?
- Authorized Distributor
- Fast Shipping
- Technical Support Available
Products You May Also Like
Our 3M™ Hot Melt Adhesive 3797 is a temperature resistant, low viscosity adhesive which flows easily into small areas for effective coverage and protection, ideal for electrical potting. This 100% solids thermoplastic adhesive also provides a quick 30-second open bead time for potting even at depth. It is best used with our 3M™ Hot Melt Applicator PG II – excellent for high volume operations. - This 100% solids thermoplastic adhesive also provides a quick 30-second open bead time for potting even at depth. Long open times allow for easy use on large assemblies and large surfaces.
Features
- Hot melt adhesive ideal for potting of electrical and electronic components
- Low viscosity provides high flow rate for excellent coverage
- Ball and ring tested - adhesive exhibits good temperature resistance after application
- 30 sec bead open time makes for effective potting at depth
- For use with 3M hot melt applicator PG II, allowing for fast paced production
- Easy-to-use
- Adhesive sets and obtains strength in seconds
- Creates high performance bonds
- Ideal for wood working and general industrial applications
- 10 piw peel strength
Applications
- For Electrical Potting, Securing Wires, Bundling Wires, Rigidizing Components on Printed Circuit Boards, Terminating Coils, Cable Strain Relief
General Information
| Item Name | Hot Melt Adhesive |
| Trade Name | 3M |
| Series | 3797 |
General Features
| Standards | 21 CFR 175.105 Certified |
| Shelf Life | 24 Months |
| Storage Temperature | 49 °C |
Design & Construction
| Color | Off White |
Performance Details
| Heat Resistance | Yes |
| Open Time | 30 sec |
| Shear Strength | 350 psi |
Chemical Properties
| Composition | Polypropylene |
| Viscosity | 2650 cP |
Electrical Properties
| UL Rating | UL94 V-2 |
Physical Properties
| Odor/Scent | Resinous |
| Size | 3 Inch L x 1 Inch W |
Environmental Condition
| Temperature Rating | 350 to 385 °F |
Supporting Information
| Applicable Materials | Metals, Wood, Glass, Vinyl, Plastics |
| Application Method | Handheld process |
