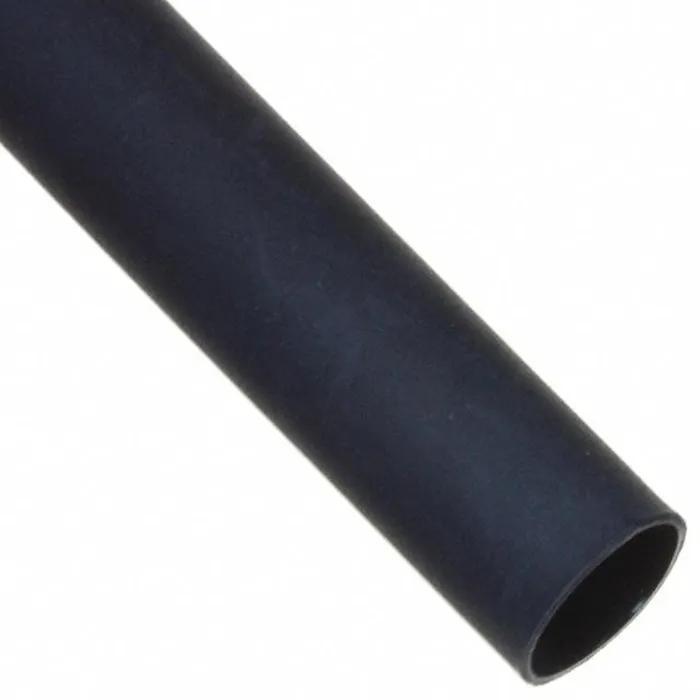

TE Connectivity Raychem® DWP-125 3:1 Adhesive-Lined Heat Shrink Tubing, 0.187", 4', Black, MFR ID DWP1253/16BLK2
- MFR #NB14902001
- EIS #DWP1253/16BLK2
- Series #Raychem® DWP-125
$219.16 / 100Foot
In Stock | Ready to Ship
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
| Stock Status | ||||
|---|---|---|---|---|
 | 4 ft | 0.5 Inch | $ / Foot more info | |
| 4 ft | 0.25 Inch | $ / Foot more info | |
| 4 ft | 0.125 Inch | $ / Foot more info | |
| 4 ft | 1 Inch | $ / Foot more info | |
| 4 ft | 0.187 Inch | $ / Foot more info | |
| 4 ft | 0.75 Inch | $ / Foot more info |
3:1 High shrink ratio allows for insulation and sealing of irregular shapes. Medium wall provides increased mechanical protection while maintaining flexibility when installed. - Adhesive bonds to a wide variety of plastics, rubber, and metals, including polyethylene, neoprene, and steel.
Features
- 3:1 high shrink ratio allows for insulation and sealing of irregular shapes
- Medium wall provides increased mechanical protection while maintaining flexibility when installed
- Adhesive bonds to a wide variety of plastics, rubber, and metals, including polyethylene, neoprene, and steel
- No dripping, flowing or cracking (4 hr at 250 °C) of heat shock
- Temperature Rating: -40 to 110 °C
- Wall Thickness: 0.055 Inch (Nominal Total Wall), 0.02 Inch (Nominal Adhesive Wall)
Applications
- Environmentally Seals and Protects a Wide Variety of Electrical Applications, Including Wire Splices, Breakouts, and Connector-To-Cable Transitions
General Information
| Item Name | Heat Shrink Tubing |
| Trade Name | Raychem® |
| Series | Raychem® DWP-125 |
General Features
| Type | Adhesive-Lined |
Design & Construction
| Color | Black |
| Insulation Material | Flexible Polyolefin |
| Minimum Shrink Temperature | 80 °C |
| Wall Type | Dual |
Performance Details
| Flame Retardant | Yes |
| Heat Aging | 7 Days |
| Heat Shock | 4 hr |
| Shrink Ratio | 3:1 |
| Tensile Strength | 1500 psi |
Electrical Properties
| Voltage Rating | 600 V |
Physical Properties
| Expandable Diameter | 0.187 Inch |
| Length | 4 ft |
| Recovered Diameter | 0.06 Inch |
| Wall Thickness | 0.055 Inch |
| Elongation | 200% |
Environmental Condition
| Reflow Temperature | 125 °C |
