3M Kynar™ MFP 2:1 Special Purpose Heat Shrink Tubing
- MFR #:Kynar™ MFP
- EIS #:PH21-Kynar MFP
- Series #:Kynar™ MFP
- MFR #:Kynar™ MFP
- EIS #:PH21-Kynar MFP
- Series #:Kynar™ MFP

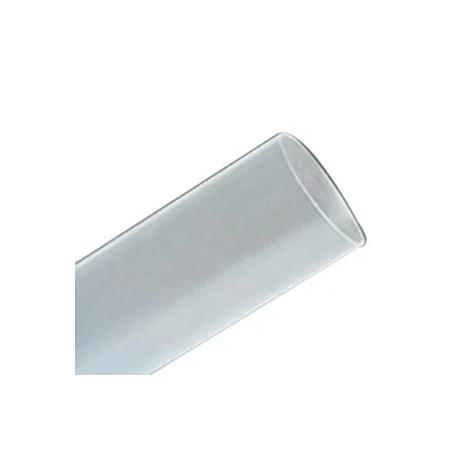

3M™ Heat Shrink Tubing MFP is a cross-linked, thin-walled, heat-shrinkable tubing offering a high degree of mechanical strength and high-temperature resistance. Fabricated from polyvinylidene fluoride, the tubing has outstanding abrasion resistance and cut through properties in combination with high dielectric strength. It is inherently flame retardant, semi-rigid and highly resistant to most industrial fuels, chemicals and solvents. - 3M™ heat shrink tubing LMFP is a cross-linked, thin-walled, heat-shrinkable tubing offering a high degree of mechanical strength and high temperature resistance. When heated in excess of 347 °F (175 °C), MFP tubing rapidly shrinks to a skintight fit.
$70.59
- $2,469.55
Select from the options below
3M™ Heat Shrink Tubing MFP is a cross-linked, thin-walled, heat-shrinkable tubing offering a high degree of mechanical strength and high-temperature resistance. Fabricated from polyvinylidene fluoride, the tubing has outstanding abrasion resistance and cut through properties in combination with high dielectric strength. It is inherently flame retardant, semi-rigid and highly resistant to most industrial fuels, chemicals and solvents. - 3M™ heat shrink tubing LMFP is a cross-linked, thin-walled, heat-shrinkable tubing offering a high degree of mechanical strength and high temperature resistance. When heated in excess of 347 °F (175 °C), MFP tubing rapidly shrinks to a skintight fit.
Product Options
Showing 1 out of 1 options
 | Length: 0.5 Inch | Expandable Diameter: 0.125 Inch | EIS Part #: KYNAR.125X.5M | $ / Piece |
- Attributes
- Features
- Applications
Attributes
General Information
Item NameHeat Shrink Tubing
Trade NameKynar™
SeriesKynar™ MFP
General Features
TypeSpecial Purpose, Semi-Rigid
Shelf Life120 Months
Design & Construction
ColorClear
Insulation MaterialModified Polyvinylidene Fluoride
Minimum Shrink Temperature175 °C
Wall TypeThin
Performance Details
Heat Aging4 hr
Low Temperature Flexibility55 °C
Shrink Ratio2:1
Tensile Strength5500 psi
Chemical Properties
Specific Gravity1.7
Electrical Properties
Dielectric Strength900 V/mil
Voltage Rating600 V
Physical Properties
Elongation350%
Features
- Fabricated from polyvinylidene fluoride, the tubing has outstanding abrasion resistance and cutthrough properties in combination with high dielectric strength
- It is inherently flame-retardant, semi-rigid and highly resistant to most industrial fuels, chemicals and solvents
- When heated in excess of 175 °C (347 °F), MFP tubing rapidly shrinks to a skintight fit
- The tubing is readily marked by hot-stamp and print-wheel equipment
- When freely recovered, the tubing will shrink to 50% of its as-supplied internal diameter
- The recovered wall thickness is proportional to the degree of recovery
- Non-corrosive chemical effect
- Excellent fuel and oil resistance, solvent resistance, abrasion resistance, acids and alkalis resistance
- Self-extinguishing
- Low Temperature Flexibility: -55 °C
- Temperature Rating: -55 to 175 °C
Applications
- Heat-Resistant Transparent Insulation and Marking for Electronic and Appliance Applications
