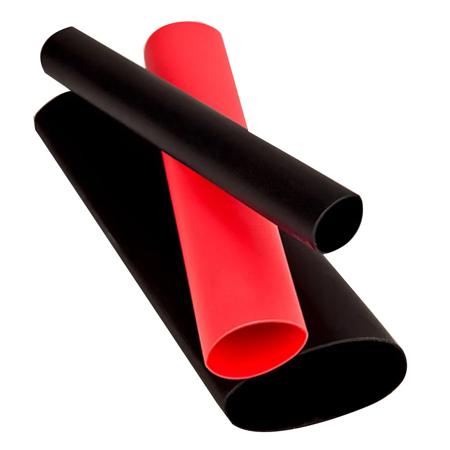

3M EPS-300 3:1 Adhesive-Lined Heat Shrink Tubing
- MFR #:EPS-300
- EIS #:PH21-EPS-300
- Series #:EPS-300
- MFR #:EPS-300
- EIS #:PH21-EPS-300
- Series #:EPS-300
3M™ Heat Shrink Tubing EPS-300 is a thin-wall tubing offering the advantages of integral, adhesive-lined construction. The tubing is made from flame-retardant, flexible polyolefin with an internal layer of special thermoplastic adhesive. - The heat-shrinkable outer wall is selectively cross-linked, while the adhesive maintains high flow and excellent adhesion characteristics.
$156.33
- $1,538.43
Select from the options below
3M™ Heat Shrink Tubing EPS-300 is a thin-wall tubing offering the advantages of integral, adhesive-lined construction. The tubing is made from flame-retardant, flexible polyolefin with an internal layer of special thermoplastic adhesive. - The heat-shrinkable outer wall is selectively cross-linked, while the adhesive maintains high flow and excellent adhesion characteristics.
Product Options
Showing 8 out of 8 options
 | Length: 4 ft | Expandable Diameter: 1 Inch | Color: Clear | EIS Part #: EPS3001.0CLR | $ / Foot | |
| Length: 4 ft | Expandable Diameter: 0.75 Inch | Color: Clear | EIS Part #: EPS300.75CLR | $ / Foot | |
| Length: 4 ft | Expandable Diameter: 0.375 Inch | Color: Clear | EIS Part #: EPS300.375CLR | $ / Foot | |
 | Length: 4 ft | Expandable Diameter: 0.375 Inch | Color: Black | EIS Part #: EPS300.375 | $ / Foot | |
 | Length: 48 ft | Expandable Diameter: 0.25 Inch | Color: Black | EIS Part #: EPS300.25SB | $ / Box | |
| Length: 4 ft | Expandable Diameter: 0.25 Inch | Color: Clear | EIS Part #: EPS300.25CLR | $ / Foot | |
 | Length: 4 ft | Expandable Diameter: 0.187 Inch | Color: Black | EIS Part #: EPS300.1875 | $ / Foot | |
| Length: 4 ft | Expandable Diameter: 0.125 Inch | Color: Black | EIS Part #: EPS300.125 | $ / Foot |
- Attributes
- Features
- Applications
Attributes
General Information
Item NameHeat Shrink Tubing
SeriesEPS-300
General Features
TypeAdhesive-Lined
Shelf Life120 Months
Design & Construction
Insulation MaterialFlexible Polyolefin
Minimum Shrink Temperature121 °C
Wall TypeDual-Thin
Performance Details
Heat Aging168 hr
Heat Shock4 hr
Low Temperature Flexibility55 °C
Shrink Ratio3:1
Tensile Strength2100 psi
Chemical Properties
Specific Gravity1.3
Electrical Properties
Dielectric Strength700 V/mil
Voltage Rating600 V
Physical Properties
Elongation450%
Water Absorption0.3%
Environmental Condition
Reflow Temperature80 °C
Features
- When heated in excess of 121 °C (250 °F), EPS-300 tubing rapidly shrinks to a skintight fit, forcing the melted adhesive to flow and cover the substrate
- The adhesive forms a flexible bond with a wide variety of rubbers, plastics and metals
- Upon cooling, the adhesive solidifies forming a durable, non-drying, flexible and water resistant barrier
- When freely recovered, the tubing will shrink to 33% of its original diameter
- The recovered wall thickness of the tubing is proportional to the degree of recovery
- Non-corrosive chemical effect
- Non-nutrient fungus resistance
- Excellent fluid resistance
- Self-extinguishing
- No dripping, flowing or cracking (4 hr at 225 °C) of heat shock
- Volume Resistivity: 10^14 Ohm-cm
- Reflow Temperature: >80 °C
- Low Temperature Flexibility: -55 °C
- Temperature Rating: -55 to 110 °C
Applications
- Offers Excellent Environmental Protection for Electronic Components, Wire Splices, Wire Bundles and Harness Breakouts, Automotive, Truck and Marine Wire Splices and Harness Breakouts are also Quickly and Easily Protected from a Variety of Harsh Environments
- Automotive, Truck and Marine Wiring Splices and Harness Breakouts are Quickly and Easily Protected from Harsh Environments
