3M EPS-200 2:1 Adhesive-Lined Heat Shrink Tubing, 3/4", 4', Black, MFR ID 7000133600

3M Electrical OEM Materials-Heat Shrink Tubing-EPS200.125-Images
  • MFR #:7100034430
  • EIS #:EPS200.75
  • Series #:EPS-200
  • UPC #:00051128598177
  • MFR #:7100034430
  • EIS #:EPS200.75
  • Series #:EPS-200
  • UPC #:00051128598177
Available to Order

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0

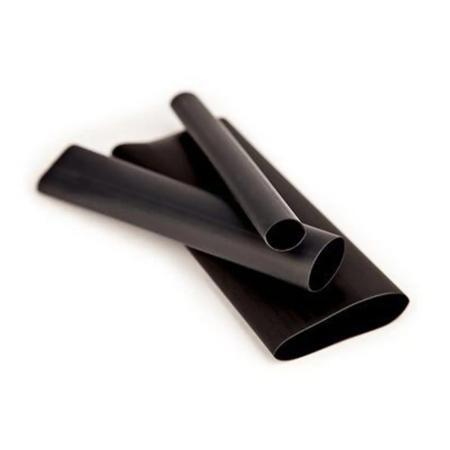

3M™ Heat Shrink Tubing EPS 200 provides a skintight fit and strain relief protection of electronic components, truck wiring splices or wire bundling. This flame retardant tubing has a heat shrinkable outer wall that is irradiation cross linked for abrasion resistance. The tubing also maintains a high flow and has superior adhesion characteristics. When the tubing cools down, it forms a permanent, water resistant barrier. It withstands temperatures of 67 to 230 degrees F ( 55 to 110 degrees C). UL Listed, SAE AS23053/4, Class 2, CSA Certified and RoHS 2011/65/EU Compliant. 3M™ Heat Shrink Tubing EPS-200 is a 2:1 thin-wall tubing offering the advantages of integral adhesive-lined construction. The tubing is made from a flame-retardant, flexible polyolefin with a thin layer of special thermoplastic adhesive.
$388.85 / 100Foot

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
3M™ Heat Shrink Tubing EPS 200 provides a skintight fit and strain relief protection of electronic components, truck wiring splices or wire bundling. This flame retardant tubing has a heat shrinkable outer wall that is irradiation cross linked for abrasion resistance. The tubing also maintains a high flow and has superior adhesion characteristics. When the tubing cools down, it forms a permanent, water resistant barrier. It withstands temperatures of 67 to 230 degrees F ( 55 to 110 degrees C). UL Listed, SAE AS23053/4, Class 2, CSA Certified and RoHS 2011/65/EU Compliant. 3M™ Heat Shrink Tubing EPS-200 is a 2:1 thin-wall tubing offering the advantages of integral adhesive-lined construction. The tubing is made from a flame-retardant, flexible polyolefin with a thin layer of special thermoplastic adhesive.

Product Options

Showing 7 out of 7 options
3M-PH21-EPS-200-Images
Length:
4 ft
Expandable Diameter:
2 Inch
Color:
Black
EIS Part #:
EPS2002.000
$ / Foot
3M-PH21-EPS-200-Images
Length:
20 ft
Expandable Diameter:
0.75 Inch
Color:
Black
EIS Part #:
EPS200.75SB
$ / Box
3M-PH21-EPS-200-Images
Length:
4 ft
Expandable Diameter:
0.75 Inch
Color:
Black
EIS Part #:
EPS200.75
$ / Foot
3M-PH21-EPS-200-Images
Length:
4 ft
Expandable Diameter:
0.5 Inch
Color:
Black
EIS Part #:
EPS200.5
$ / Foot
3M-PH21-EPS-200-Images
Length:
48 ft
Expandable Diameter:
0.375 Inch
Color:
Black
EIS Part #:
EPS200.375A
$ / Box
3M-PH21-EPS-200-Images
Length:
4 ft
Expandable Diameter:
0.375 Inch
Color:
Black
EIS Part #:
EPS200.375
$ / Foot
3M-PH21-EPS-200-Images
Length:
4 ft
Expandable Diameter:
0.125 Inch
Color:
Black
EIS Part #:
EPS200.125
$ / Foot

Attributes

General Information

Item NameHeat Shrink Tubing
Trade Name3M

SeriesEPS-200

General Features

Shelf Life120 Months
TypeAdhesive-Lined

Design & Construction

ColorBlack
Insulation MaterialFlexible Polyolefin
Minimum Shrink Temperature121 °C
Wall TypeDual-Thin

Performance Details

Flame RetardantYes
Heat Aging168 hr
Heat Shock4 hr
Low Temperature Flexibility-55 °C
Shrink Ratio2:1
Tensile Strength2100 psi

Chemical Properties

Specific Gravity1.3

Electrical Properties

Dielectric Strength800 V/mil
Voltage Rating600 V

Physical Properties

Elongation450%
Expandable Diameter0.75 Inch
Length4 ft
Recovered Diameter0.375 Inch
Wall Thickness0.037 Inch
Water Absorption0.3%

Environmental Condition

Reflow Temperature80 °C
Temperature Rating-55 to 110 °C
